Open Frame Touch Monitor KOT-170P-016
KOT-170P-0161.Adopt KeeTouch capacitive touch technology, with stable and sensitive touch experience and high-definition visual enjoyment
2.With pure flat and narrow-edge design, support ten-point touch
3.With tempered glass cover, dustproof, anti-vandal, anti-scratch, life span is more than 50 million times
4.Brightness: 500nits
5.Anti-glare
-
17 Inch PCAP Touch Monitor Anti-glare for Kiosks Smart Lockers：
1.With PCAP multi touch screen, high sensitive and fast response
2.1280*1024 high resolution, high contrast ratio with high-quality image
3.Anti-glare, anti-vandal and IP65 surface waterproof PCAP touch monitor

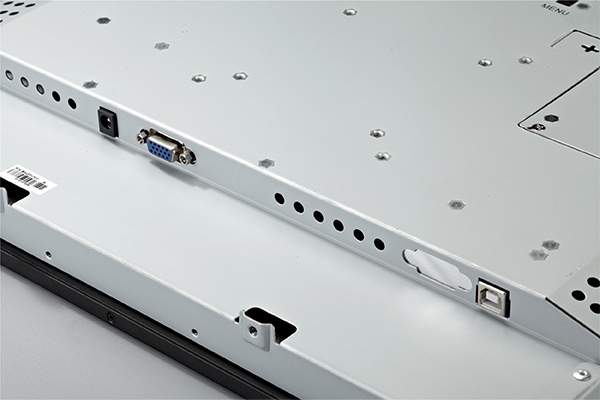

4.VGA & DVI interfaces,USB for touch
5.Multiple mounting options include VESA mount, horizontal and vertical brackets mount
6.Operation system: XP, WIN7, WIN8, WIN10, Linux, Android
7.Other sizes can be offered (7’’- 43’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the PCAP Touch Monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the PCAP Touch Monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the PCAP Touch Monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
-
Complete Machine
Model No.
KOT-0170U-CA4P (P/N:KOT-170P-016)
Series
OT
Display Type
5:4 Ratio 17" TFT-LCD
Active Area
337.9*270.3(mm)

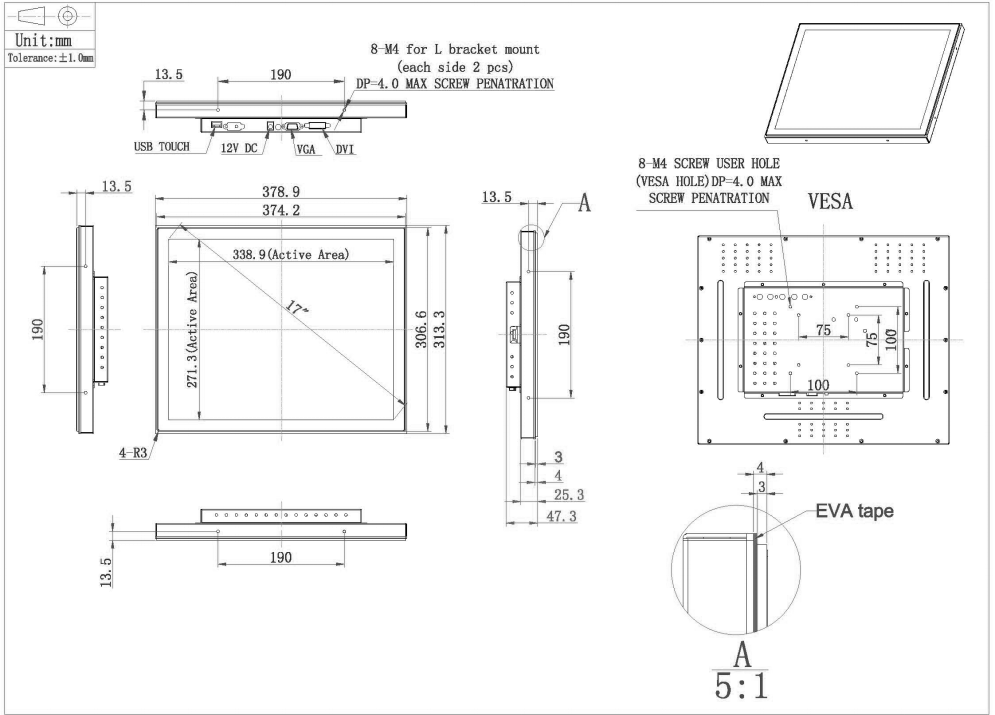

Monitor Dimensions (W*H*D)
378.9*313.3*47.3(mm)
Suggested Resolution
1280*1024 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
500cd/m²
With Touch Monitor
410cd/m²
Response Time (Typ.)
5ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
85°/85°
Vertical(up/down)
80°/80°
Contrast Ratio (Typ.)
1000:01:00
Video Input
VGA/DVI
Frequency (H/V)
37.9～80KHz / 60～75Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Weight（N.W/G.W）
4.1Kg(1pcs)/9.85Kg(2 pcs in one package)
Package dimensions
466*185*403(mm)(2 pcs in one package)
Power Consumption
Standby Power: ≤1.5W / Operating Power: ≤20W

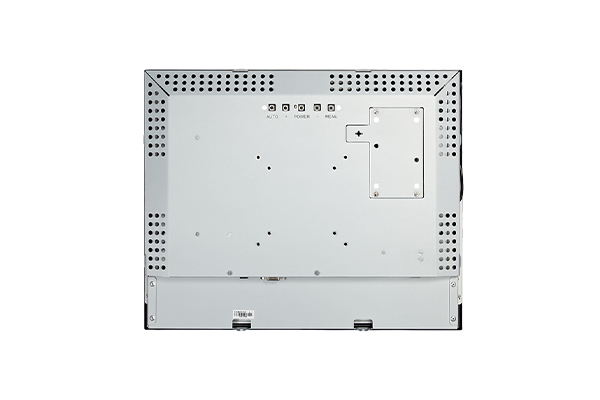

Mount Interface
1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount

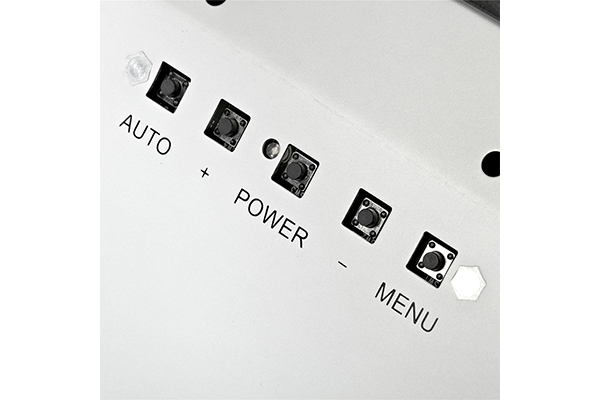

OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, UL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
17" Capacitive touch screens
Touch input
USB
Response Time
≤10ms
Hardness
6H
Light Transmittance
≥83%
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Active Area
340.92*273.34(mm)
Thickness
3.9±0.3(mm)
Touch Test
≥50,000,000 次
Input Voltage
DC 5V±5%
-
