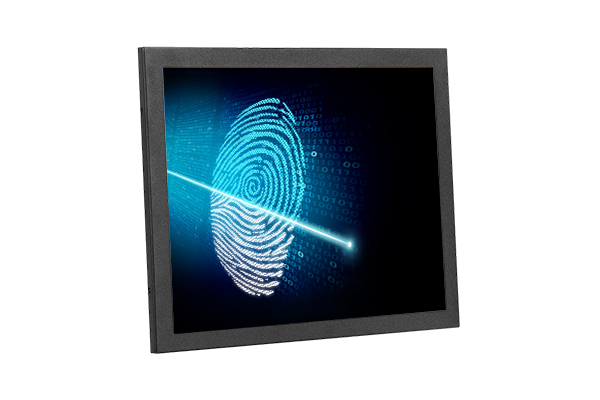

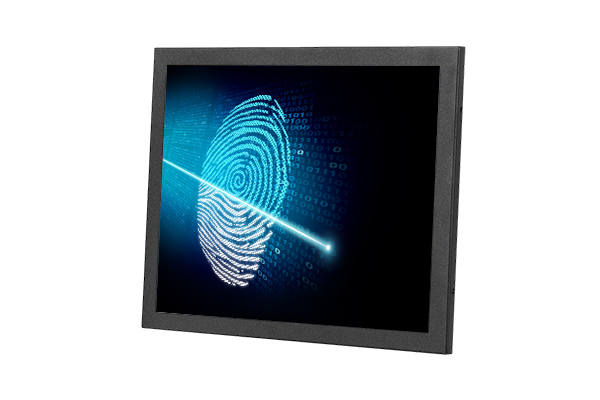

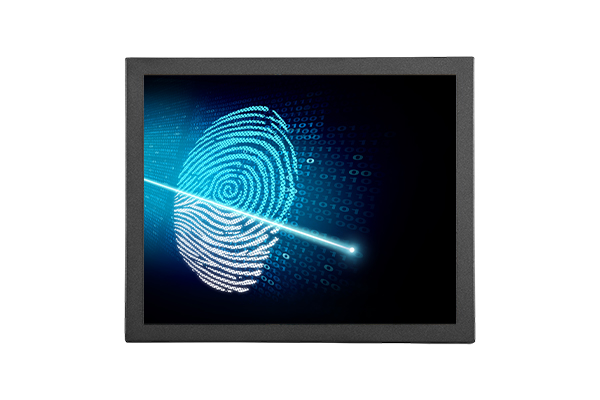

SAW Touch Monitor KOT-0170US-SA6BW
KOT-0170US-SA6BW1.Integrated with Keetouch SA touch panel for the ultimate in image quality
2.Future generation panels phased-in without external changes
3.High quality panel with high brightness, contrast ratio and broad viewing angle
4.Worldwide agency approvals
-
SAW Touch Monitor Main features:
1.KeeTouch SAW touch technology, accurate touch, fast response
2.Industrial grade SAW touch monitor with water-proof function
3.High quality panel with high resolution, contrast ratio and broad viewing angle
4.VGA+DVI interfaces, USB/RS232 for touch
5.Support system: XP,WIN7,WIN8,WIN10
6.Multiple mounting options including horizontal bracket-mount, vertical bracket
7.Other sizes are available (7’’- 55’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the SAW touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the SAW touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the SAW touch monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.5. What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6. What is your delivery time?3-5 work days for inventory orders, 7-15 business days for bulk production. -
Complete Machine
Model No.
KOT-0170US-SA6BW (P/N:KOT-170W-003)
Series
OT
Display Type
5:4Ratio 17＂Active matrix TFT-LCD

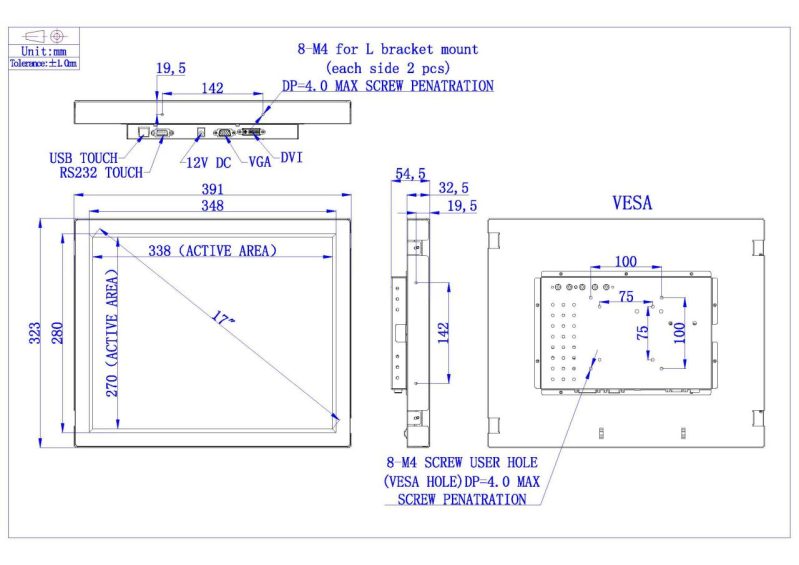

Active Area
338*270 (mm)
Monitor Dimensions (W*H*D)
391*323*54.5 (mm)
Suggested Resolution
1280*1024 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
250cd/m²
With SAW glass sensor
225cd/m²
Response Time (Typ.)
30ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
160°（75°/85°）
Vertical(up/down)
150°（70°/80°）
Contrast Ratio (Typ.)
1000:01:00
Video Input
VGA/DVI
Frequency (H/V)
30～80KHz / 60～75Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Package dimensions
466*185*403(mm)(2pcs in one package)
Power Consumption
Standby Power: ≤1.5W / Operating Power: ≤15W

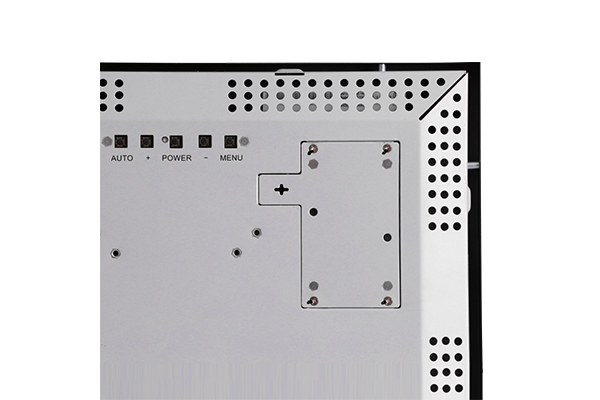

Mount Interface
1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount

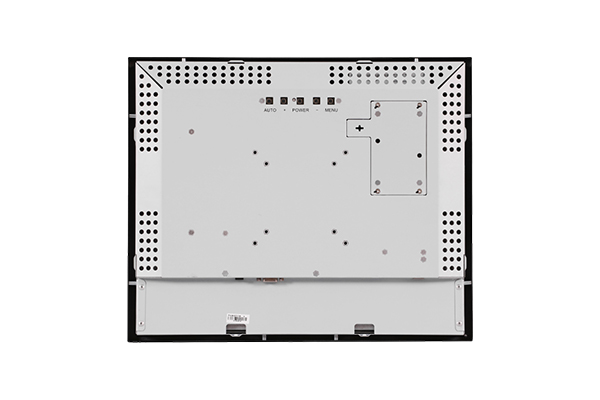

OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
17" Surface acoustic wave touch screen
Touch input
USB/RS232
Response Time
≤8ms(USB) / ≤12ms(RS232)
Hardness
7H
Light Transmittance
≥90%
Support System
XP,WIN7,WIN8，WIN10
Touch Test
≥50,000,000 times
-
