Open Frame Touch Monitor KOT-0150U-SA4BW
KOT-0150U-SA4BW1.Adopting KeeTouch capacitive touch technology brings stable and sensitive touch experience and high-definition visual enjoyment.
2.Tempered glass.
3.Dust-proof and scratch-resistant, with a service life of more than 50 million times of use.
-
15 Inch PCAP Touch Monitor 1024x768 Resolution for Kiosks：
1.With PCAP touch technology, up to 10 points touch with great touch experience
2.High resolution and high contrast support high quality image
3.Anti-vandal and dust-proof PCAP touch monitor
4.VGA&DVI interfaces, USB port for touch
5.Multiple mounting options include VESA mount, horizontal and vertical brackets mount
6.Operation system: XP, WIN7, WIN8, WIN10, Linux, Android
7.Other sizes (7’’- 43’’) can be offered.
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the PCAP Touch Monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the PCAP Touch Monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the PCAP Touch Monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed. -
Complete Machine
Model No.
KOT-0150U-SA4BW(P/N:KOT-150P-017-02)
Series
OT
Display Type
4:3 Ratio15"TFT-LCD, LEDbacklight
Active Area
304.1x 228.1(mm)

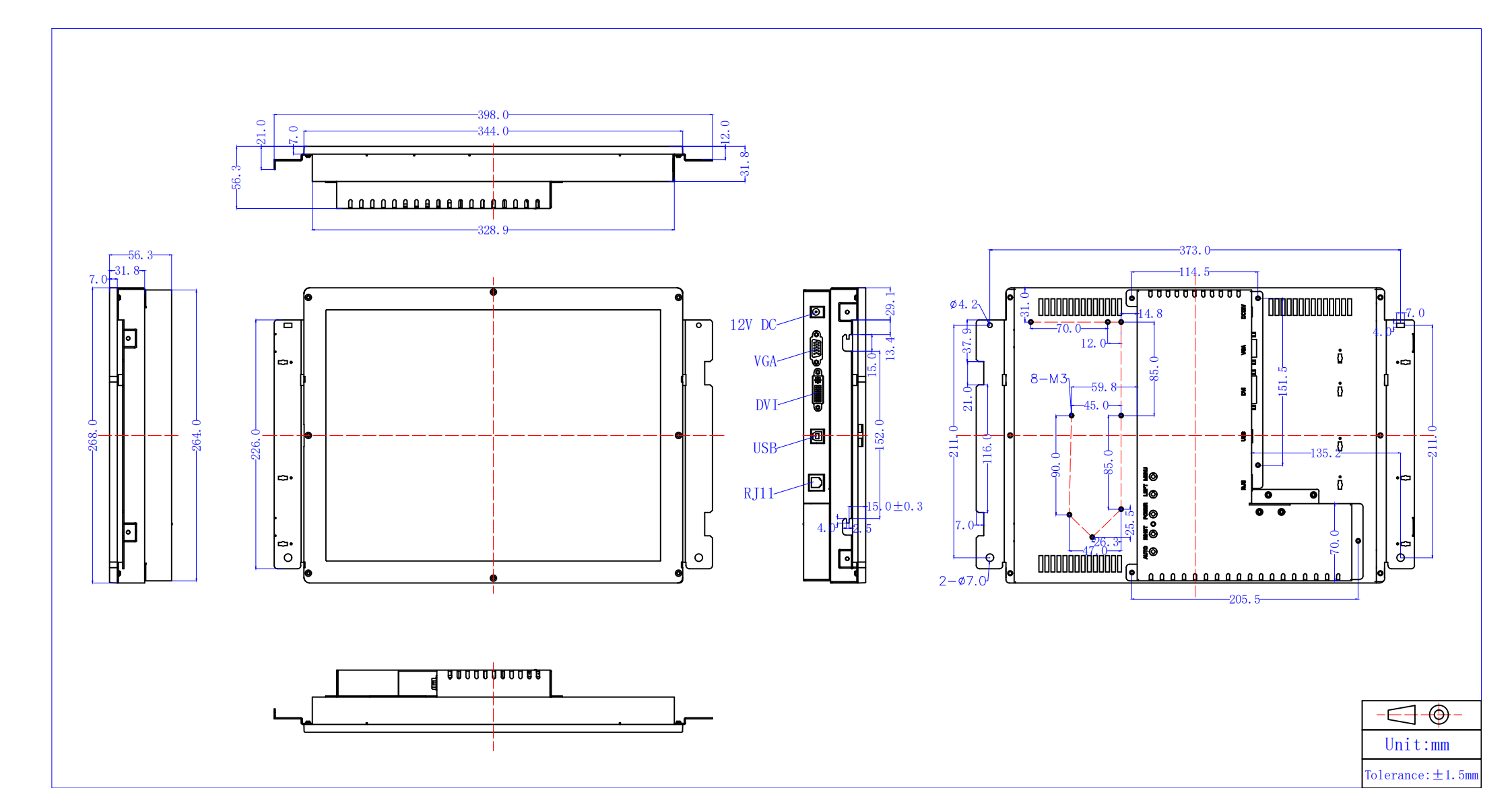

Monitor Dimensions (W*H*D)
398*268*56.3(mm)
Suggested Resolution
1024*768 @ 60Hz
Support Colors
16.2M
Brightness (Typ.)
Pure LCD Panel
400cd/m²
With Touch Monitor
190cd/m²
Response Time (Typ.)
6ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right): 80°/80°
Vertical(up/down): 65°/80°
Contrast Ratio (Typ.)
450(Min.), 800(Typ.)
Video Input
VGA/DVI
Frequency (H/V)
30～80KHz / 60～75Hz
Type: External brick
-
