Open Frame Touch Monitor KOT-0230U-CA5P
KOT-0230U-CA5PIntelligent lighting to attract customer attention

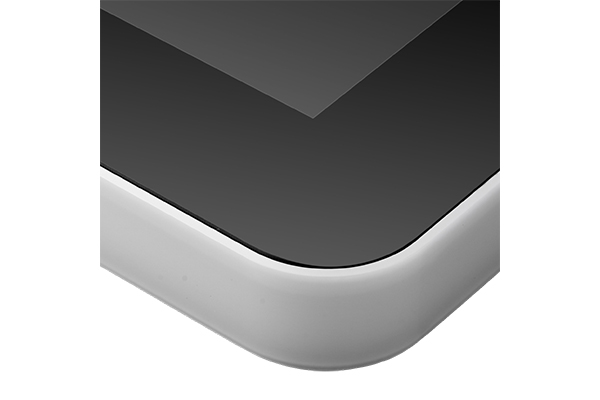

Pure flat design with narrow edge
Multiple mounting options including horizontal bracket mount, vertical bracket mount and VESA mount.
With remote control
High quality panel with high contrast ratio and broad viewing angle.
USB touch interface.

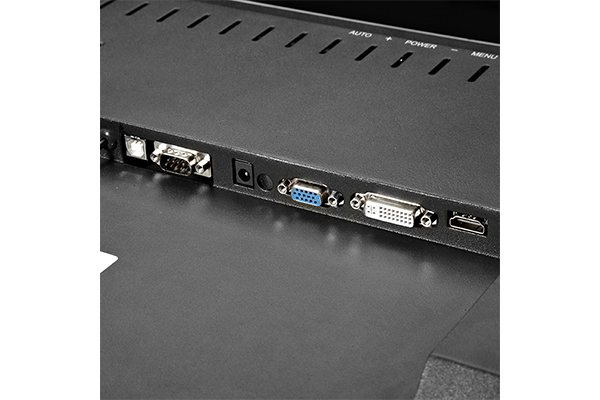

VGA and DVI and HDMI input video format.
CCC, ETL, FCC, CE, CB, RoHS certificates.
Other size can be customized
-
PCAP Touch Monitor Main Features:
1.PCAP multi-point touch, high-sensitivity and great touch experience
2.Anti-vandal and IP65 front surface waterproof PCAP touch monitor
3.Pure flat design with LED flexible strips, attractive and fashionable
4.High resolution PCAP touch monitor with full viewing angle
5.VGA+DVI+HDMI input video format,USB for touch
6.Multiple mounting options include VESA mount, horizontal or vertical brackets mount
7.Support system: XP,WIN7,WIN8,WIN10, Linux, Android
8.Other sizes are optional (7’’- 43’’)
FAQ:(加粗）1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the PCAP touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the PCAP touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the PCAP touch monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.5. What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6. What is your delivery time?3-5 work days for inventory orders, 7-15 business days for bulk production. -
Complete Machine
Model No.
KOT-0230U-CA5P
Series
OT , With LED Flexible Stripes
Display Type
16:9 Ratio 23” Active matrix TFT-LCD
Active Area
511.8mm×289mm

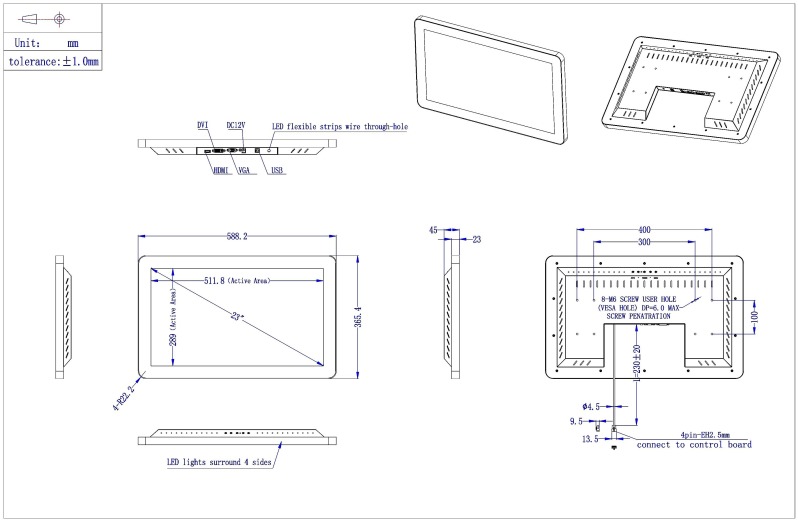

Monitor Dimensions (W*H*D)
588.2*365.4*45(mm)
Suggested Resolution
1920x1080 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
250 cd/m²
(Brightness from 300~1000cd/m² can be customized)
With Projected Capacitive Touchscreen
212 cd/m²
Response Time (Typ.)
14ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right):89°/89°
Vertical(up/down): 89°/89°
Contrast Ratio (Typ.)
1000:01:00
Video Input
VGA/HDMI/DVI
Frequency (H/V)
30～80KHz / 60～75Hz
Power Supply
Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Weight（N.W/G.W）
7.5kg/17.3kg(2 pcs)
Package dimensions
703×181×485(mm) (2pcs in one package)
Power Consumption
37W(approximately, Includes touch display and LED lamp)

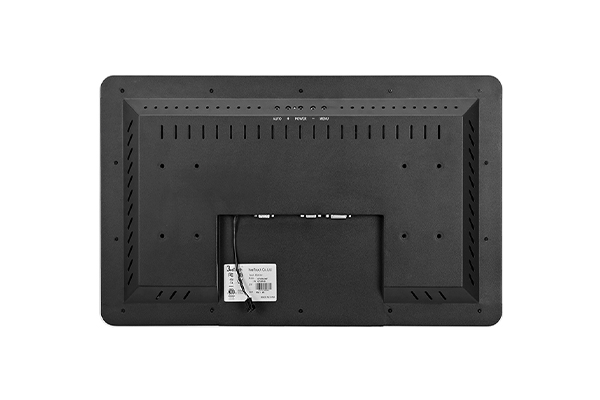

Mount Interface
VESA 100*300mm and 100*400mm
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock,
H/V Location, Languages, Function, Reset
CCC, UL, FCC, CE, CB, RoHS
Regular Warranty
1 year
-
