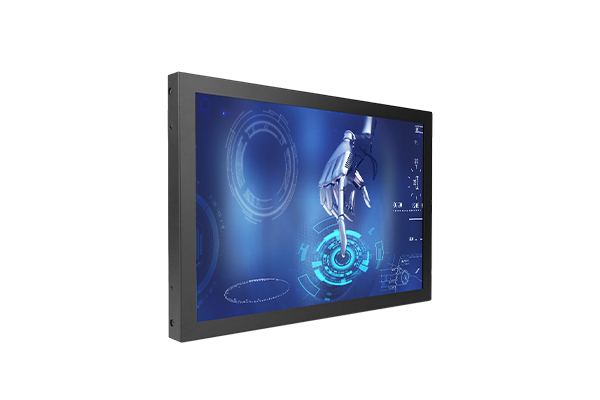

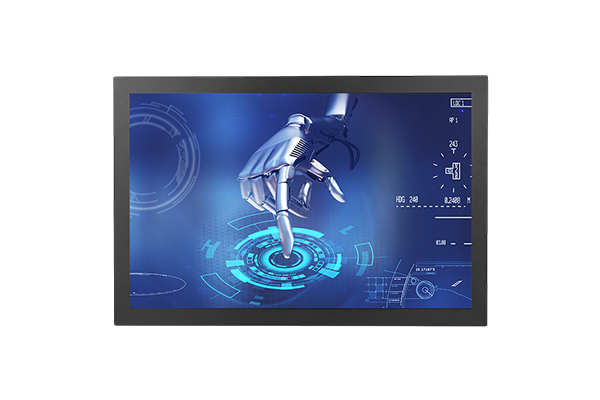

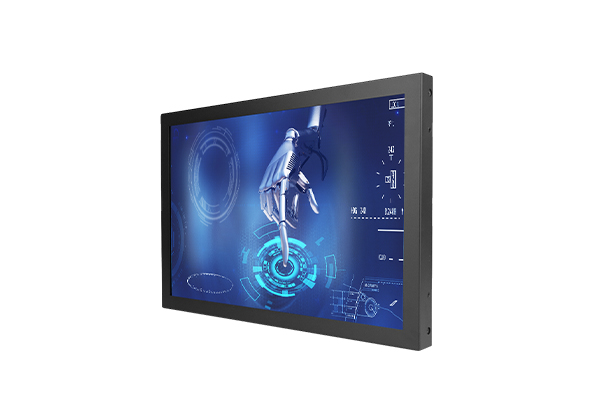

Open Frame Touch Monitor KOT-0190U-CA2P169
KOT-0190U-CA2P169Long lasting product cycle-enclosure
controlled by KeeTouch specifications,
so that future upgrades do not bring
external size changes.
High contrast ratio
Multiple mounting options including
horizontal bracket mount, vertical bracket
mount and VESA mount.
USB touch interface port.
VGA and DVI input video format.
CCC, ETL, FCC, CE, CB, RoHS certificates.
-
19 Inch PCAP Touch Monitor 1440×900 High Resolution for Kiosks：
1.With PCAP touch screen, fast response and high sensitivity
2.High resolution, high contrast ratio, wide viewing angle with super image quality
3.Anti-vandal and front side waterproof PCAP touch monitor
4.VGA&DVI interfaces, USB port for touch
5.Multiple mounting options include VESA mount, horizontal and vertical brackets mount
6.Operation system: XP, WIN7, WIN8, WIN10, Linux, Android
7.With 40+ engineers, OEM and ODM are supported and other sizes (7’’- 43’’) can be offered.
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the PCAP Touch Monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the PCAP Touch Monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the PCAP Touch Monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.
-
Model No.
KOT-0190U-CA2P169
Series
OT, Wide-screen , LED backlight
Display Type
16:10 Ratio 19" Active matrix TFT-LCD
Display Active Area
408.5×255. 5(mm)

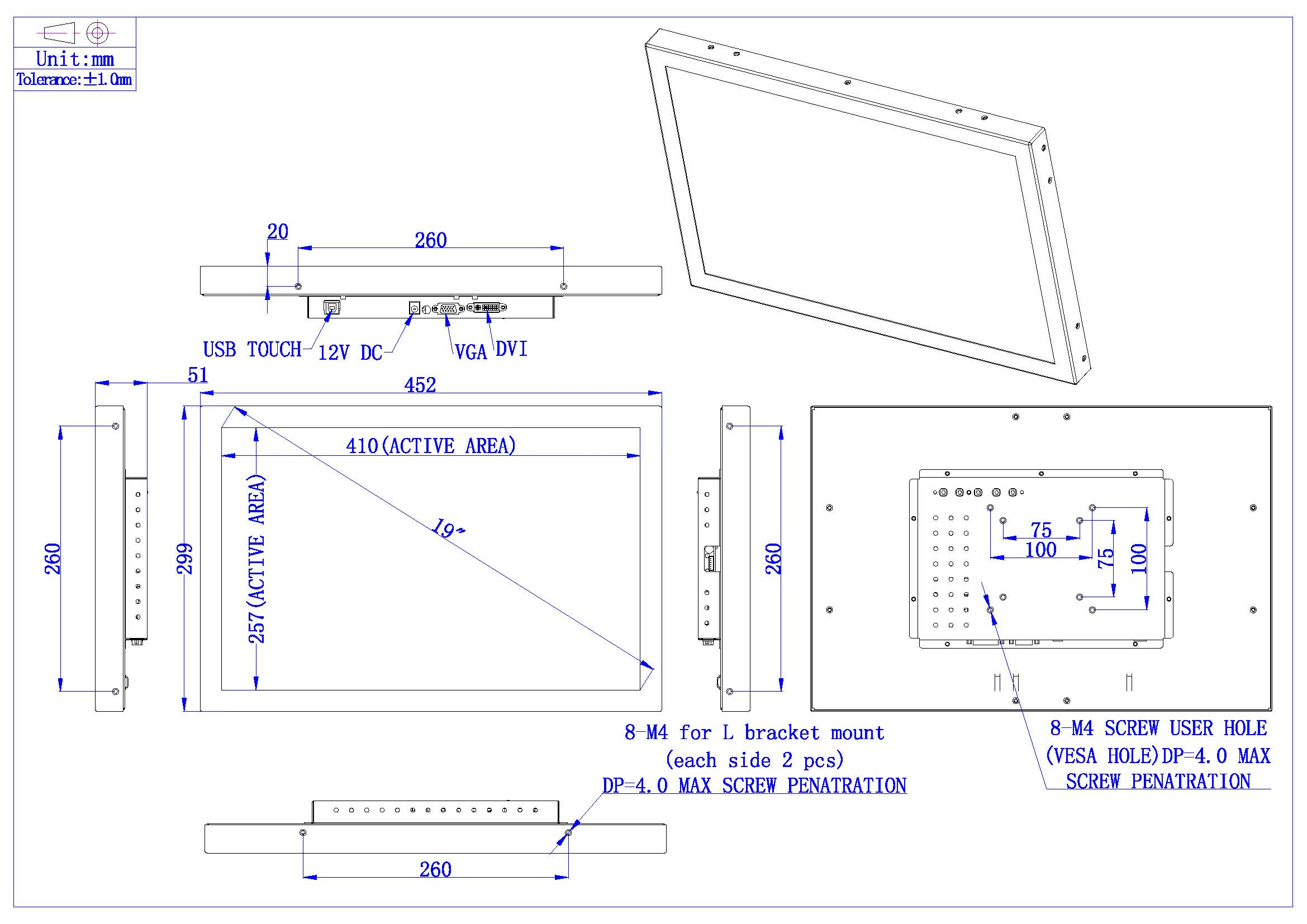

Touch Monitor Dimensions
Width: 452mm
Height: 299mm
Depth: 51mm
Suggested Resolution
1440×900 @ 60Hz
Support Colors
16.7M
Brightness(Typ.)
Pure LCD Panel (Brightness from 300~1000nits can be customized )
250cd/m²
With Projected Capacitive Touchscreen
212cd/m²
Response Time(Typ.)
5ms
Viewing Angle
Horizontal(left/right): 85°/85°
(Typ.at CR>10)
Vertical(up/down): 80°/80°
Contrast Ratio(Typ.)
1000:01:00

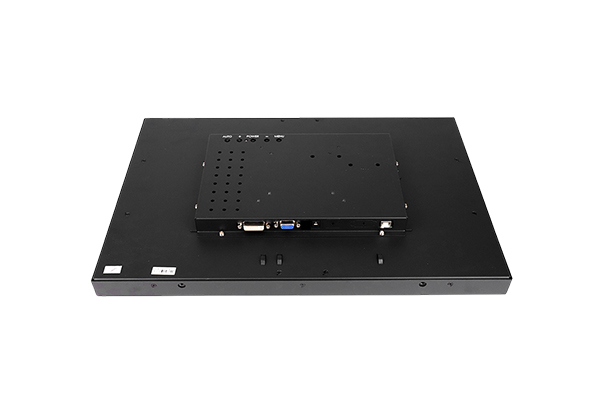

Video Input
VGA and DVI
Frequency(H/V)
30～80KHz / 60～75Hz
Power Supply
Type: External brick
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operation Temp.
0～50°C
Storage Temp.
-20～60°C
Operation RH
20%～80%
Storage RH
10%～90%
MTBF
30,000 Hours
LED Back Light Life(Typ.)
30,000 Hours
Weight(N.W/G.W)
5.5Kg(1pcs) / 13.75Kg (2pcs in one package)
Package Dimension
525×220×380(mm)(2pcs in one package)
Power Consumption
20W
Standby Power Consumption
0.95W

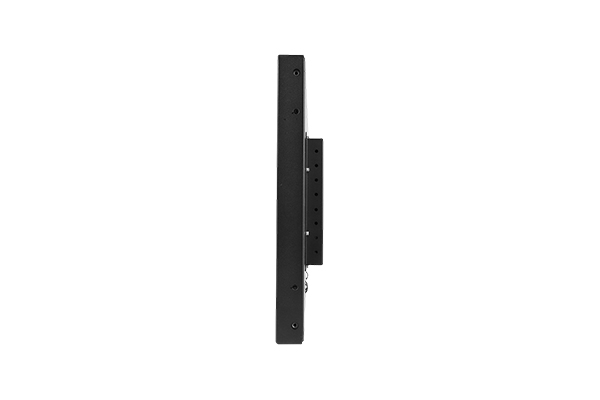

Mount Interface
1)VESA 75mm and 100mm
2)Mount bracket, horizontal or vertical

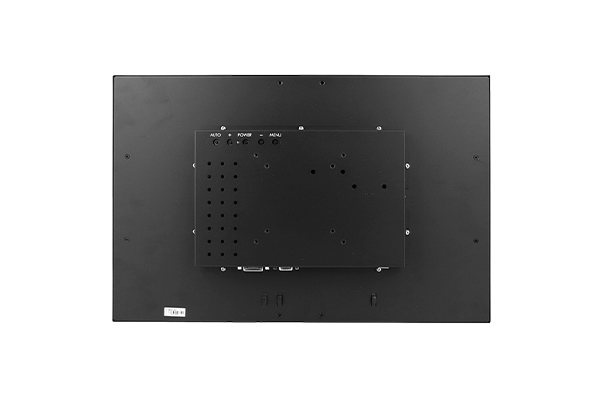

OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Touch Screen Type
19" Projected Capacitive touch sceen, 10 points in win7
Touch System Interface
USB / RS-232（optional）
Touch Response time
10ms
Agency Approval
CCC, UL, FCC, CE, CB, RoHS
Regular Warranty
1 Year
-
