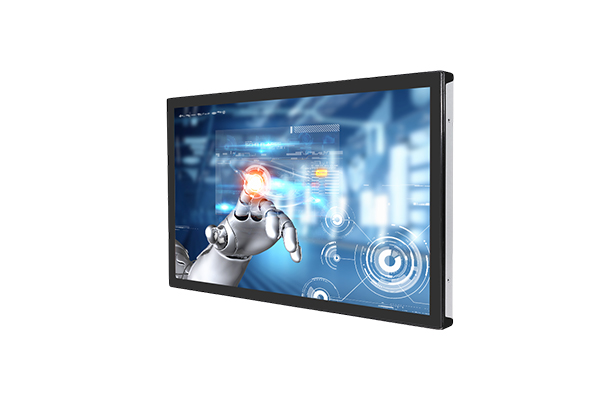

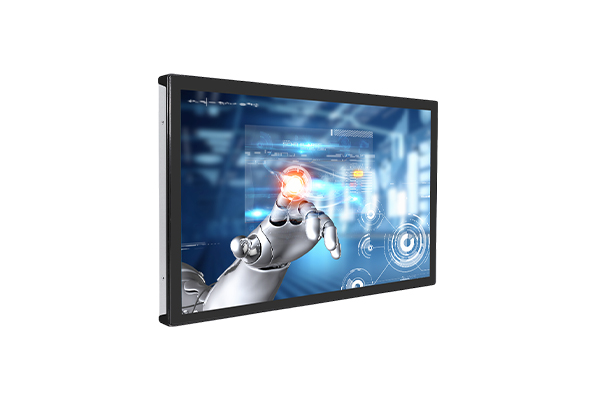

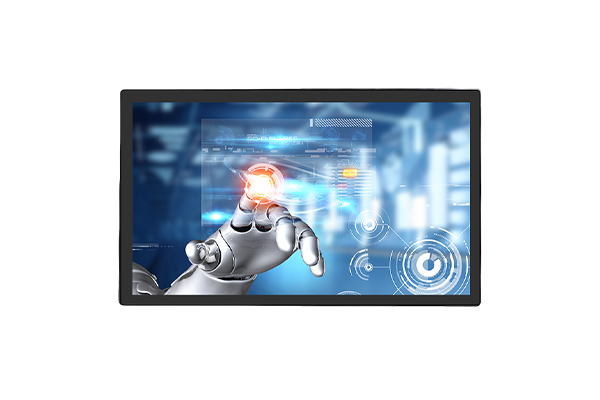

Open Frame Touch Monitor KOT-0215U-CA4P
KOT-0215U-CA4P1.Integrated with Keetouch CA touch panel for the ultimate in image quality
2.Future generation panels phased-in without external changes
3.High quality panel with high brightness, contrast ratio and broad viewing angle
4.Worldwide agency approvals
-
PCAP Touch Monitor Main Features:
1.PCAP multi touch panel, high quality touch experience
2.Dust-proof, anti-vandal PCAP touch monitor, durable even in harsh environment
3.Professional pure flat designed with IP65 front surface waterproof function
4.High resolution, high contrast PCAP touch monitor with superior clarity image

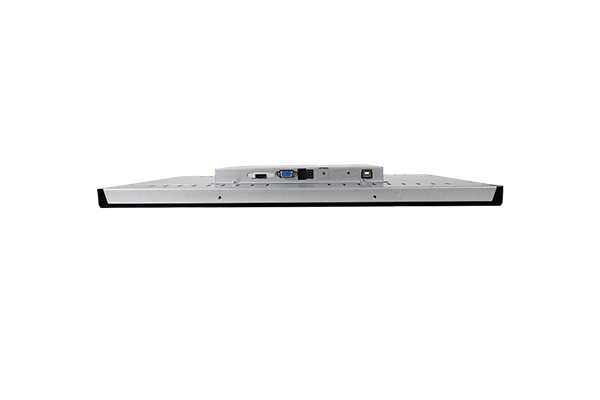

5.VGA+DVI interfaces,USB for touch
6.Multiple mounting options include VESA mount, horizontal vertical brackets mount
7.Support system: XP,WIN7,WIN8,WIN10, Linux, Android
8.Other sizes are available (7’’- 43’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the PCAP touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the PCAP touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the PCAP touch monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed. -
Complete Machine
Model No.
KOT-0215U-CA4P (P/N:KOT-215P-014)
Series
OT
Display Type
16:9 Ratio 21.5" TFT-LCD
Active Area
476.6*269 (mm)

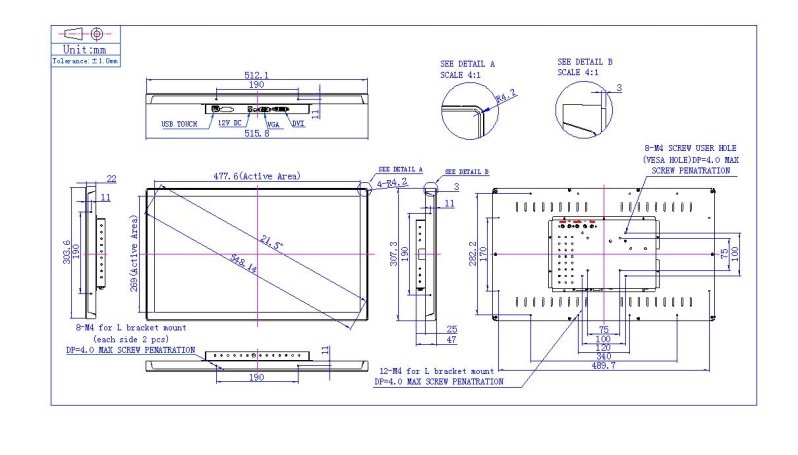

Monitor Dimensions (W*H*D)
512.1*307.3*47(mm)
Suggested Resolution
1920*1080 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
250cd/m²
With Touch Monitor and Peep-proof protection film
127cd/m²
Response Time (Typ.)
5ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
85°/85°
Vertical(up/down)
80°/80°
Contrast Ratio (Typ.)
1000:01:00
Video Input
VGA\DVI
Frequency (H/V)
37.9～80KHz / 60～75Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Weight（N.W/G.W）
5.6Kg(1pcs)/13.4Kg(2pcs in one package)
Package dimensions
605*400*195(mm)(2pcs in one package)
Power Consumption
Standby Power: ≤1.5W / Operating Power: ≤30W
Mount Interface
1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
-
