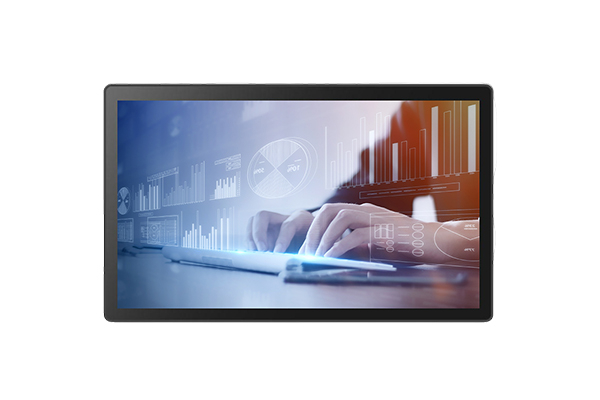

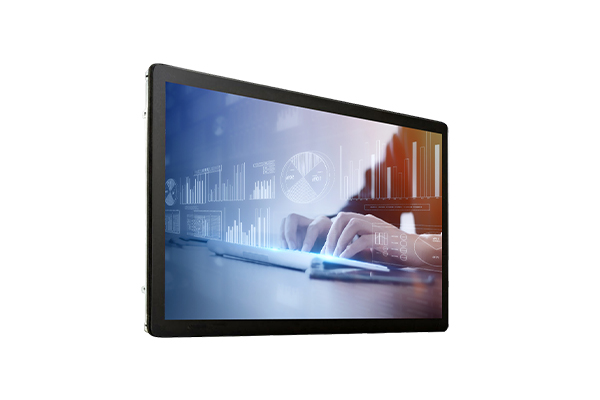

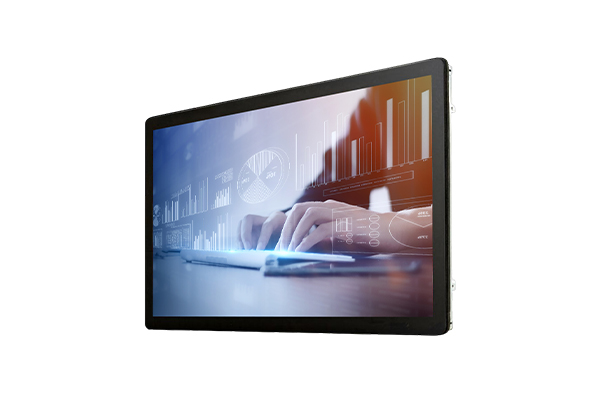

Open Frame Touch Monitor KOT-0215U-CA4P
KOT-0215U-CA4P1.Integrated with Keetouch CA touch panel for the ultimate in image quality
2.Future generation panels phased-in without external changes
3.High quality panel with high brightness, contrast ratio and broad viewing angle
4.Worldwide agency approvals
-
PCAP Touch Monitor Main Features:
1.PCAP multi-point touch, great interactive experience
2.Anti-vandal and dust-proof, industrial grade PCAP touch monitor
3.Pure flat designed PCAP touch monitor, IP65 waterproof (front frame)
4.1920x1080 high resolution PCAP touch monitor, high-quality image
5.VGA+DVI+HDMI interfaces,USB for touch input
6.Multiple mounting options include VESA mount, horizontal or vertical brackets mount
7.Support system: XP,WIN7,WIN8,WIN10, Linux, Android
8.Other sizes are available (7’’- 43’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the PCAP touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the PCAP touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the PCAP touch monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.5. What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6. What is your delivery time?3-5 work days for inventory orders, 7-15 business days for bulk production. -
Complete Machine
Model No.
KOT-0215U-CA4P (P/N:KOT-215P-011)
Series
OT
Display Type
16:9 Ratio 21.5" TFT-LCD
Active Area
478*270(mm)
Monitor Dimensions (W*H*D)
516*311*40(mm)
Suggested Resolution
1920x1080 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
250cd/m²
With Touch Monitor
212cd/m²
Response Time (Typ.)
5ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
85°/85°
Vertical(up/down)
80°/80°
Contrast Ratio (Typ.)
1000:01:00

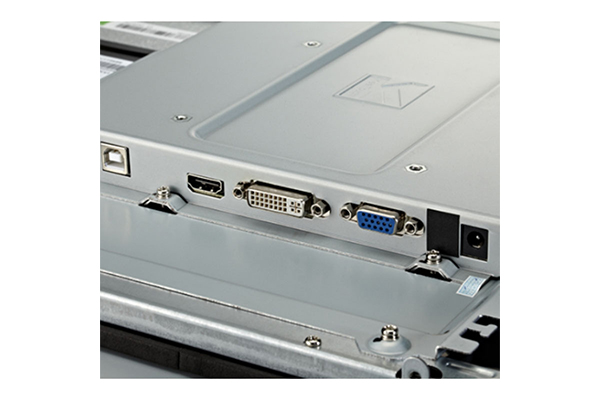

Video Input
VGA\DVI\HDMI
Frequency (H/V)
30～80KHz / 60～75Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Weight（N.W/G.W）
5.6Kg(1pcs)/7.7Kg(1pcs in one package)
Package dimensions
610*410*145(mm)(1pcs in one package)
Power Consumption
Standby Power: ≤1.5W / Operating Power: ≤30W

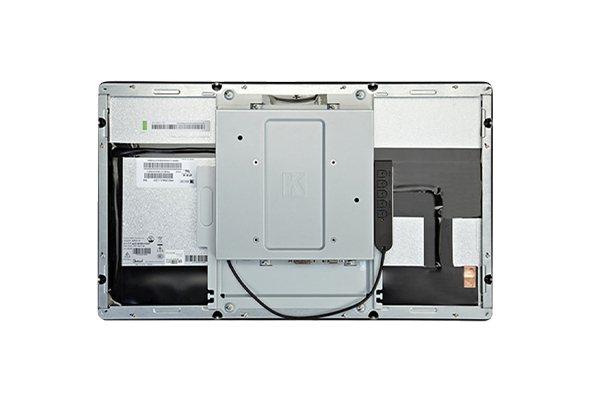

Mount Interface
1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
-
