Open Frame Touch Monitor KOT-0320U-CA5P

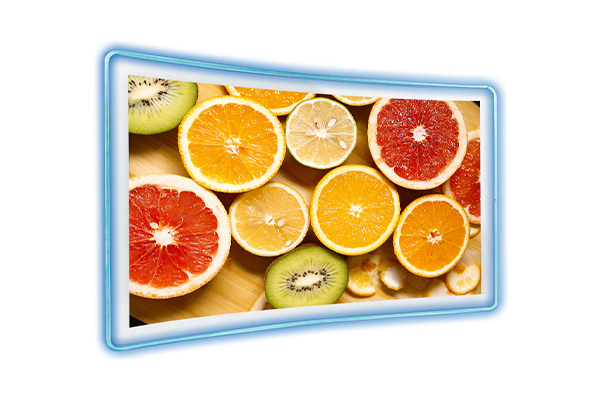

KOT-0320U-CA5PThis Curved PCAP touch monitor is designed with LED strips and uses industrial LCD panel with FHD 1920x1080, ultrafast refresh rate, wide viewing angel, rich colors, which can deliver an immersive experience. They can be connected by VGA, HDMI, DVI interfaces, USB for touch and also support XP, WIN7, WIN8, WIN10, Linux, Android operating systems.
-
PCAP Touch Monitor Main Features:
1.PCAP multi-touch, high-sensitivity ten-point touch
2.Dust proof and anti-vandal PCAP touch monitor with LED light bar
3.≥30,000 hours MTBF, lasting touch, long life span
4.3000:1 high contrast ratio PCAP touch monitor with superior image quality
5.VGA + DVI interfaces,USB for touch
6.Multiple mounting options include VESA mount, horizontal vertical brackets mount
7.Support system: XP,WIN7,WIN8,WIN10, Linux, Android
8.Other sizes can be offered (27’’, 43’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the PCAP Touch Monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the PCAP Touch Monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional). -
Complete Machine
Model No.
KOT-320P-026
Series
OT
Display Type
16:9 Ratio 32" TFT-LCD
Active Area
698.4 x 392.85(mm)
Monitor Dimensions (W*H*D)
768.4*456*109.6(mm)
Suggested Resolution
1920x1080 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
250cd/m²
With Touch Monitor
213cd/m²
Response Time (Typ.)
21ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
89°/89°(Typ.)/80°/80°(Min.)
Vertical(up/down)
89°/89°(Typ.)/80°/80°(Min.)
Contrast Ratio (Typ.)
2100:1 （Min.） /3000:1(Typ.)
Video Input
VGA\DVI
Frequency (H/V)
54.15～84.38KHz / 49～72Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Power Consumption
Standby Power: ≤2W / Operating Power: ≤40W
Mount Interface
VESA 200mm
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Regular Warranty
1 year
Touch Screen
Touch Type
32" Capacitive touch screens
Touch input
USB
Response Time
≤14ms
Hardness
6H
Light Transmittance
≥85%
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Active Area
692.7*392(mm)
Thickness
3.8±0.2(mm)
Touch Test
≥50,000,000 times
Input Voltage
DC 5V±5%
-
