Open Frame Touch Monitor KOT-0270U-CA4P

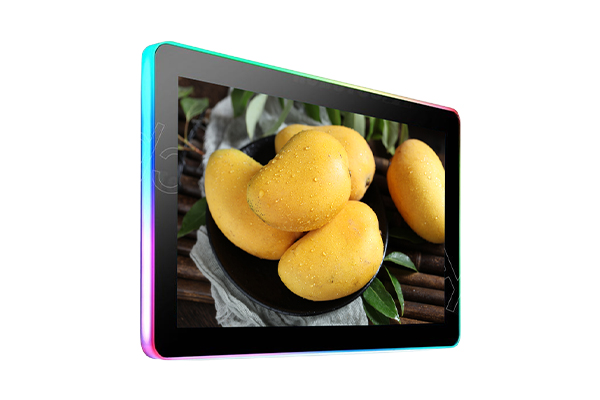

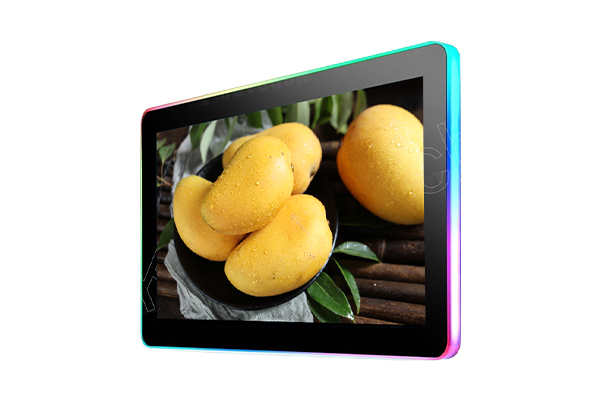

KOT-0270U-CA4PThis PCAP touch monitor comes with main features as below: 1920*1080 high resolution, 3000:1 high contrast ratio, IP65 front frame waterproof, vandal proof and dust-proof with full viewing angle. The PCAP touch monitor are designed with LED flexible strip, ideal choice for gaming. Also, with professional R&D department, OEM and ODM services are offered, and other sizes (7’’- 43’’) are optional.
-
Advantages of PCAP Touch Monitor：
1.High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.
2.Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.
3.Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.
4.Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.
5.Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the PCAP touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the PCAP touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
-
Complete Machine
Model No.
KOT-0270U-CA4P (P/N:KOT-270P-003)
Series
OT
Display Type
16:9 Ratio 27" TFT-LCD
Active Area
597.6*336.15(mm)

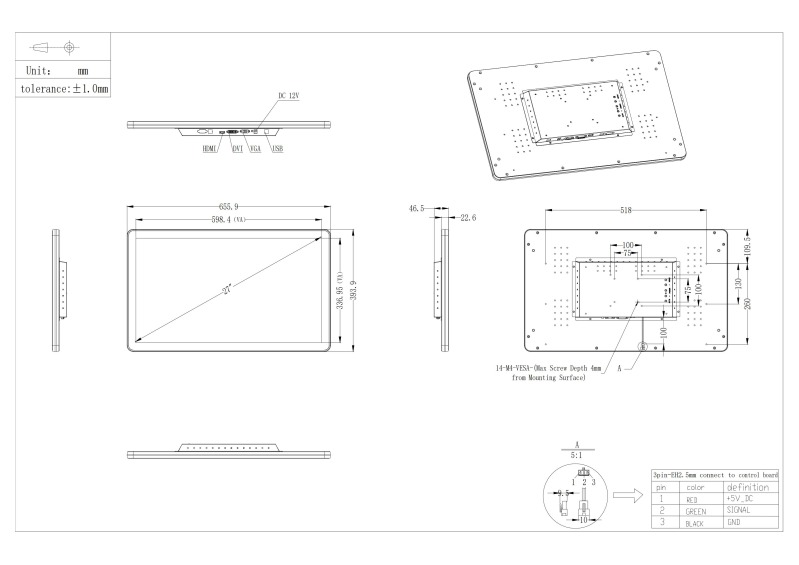

Monitor Dimensions (W*H*D)
655.9*393.9*46.5(mm)
Suggested Resolution
1920*1080 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
300cd/m²
With Touch Monitor
255cd/m²
Response Time (Typ.)
12ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
89°/89°
Vertical(up/down)
89°/89°
Contrast Ratio (Typ.)
3000:01:00

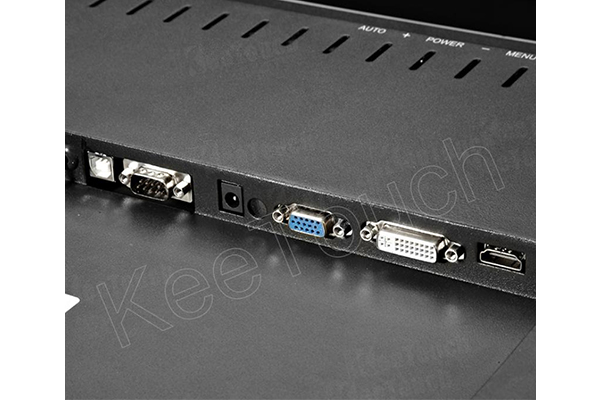

Video Input
VGA/DVI/HDMI
Frequency (H/V)
40～90KHz / 50～75Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
30,000 Hours
LED Back Light Life (Typ.)
30,000 Hours
Weight（N.W/G.W）
9.8Kg(1pcs)/21.3Kg(2pcs in one package)
Package dimensions
770*513*198(mm)(2pcs in one package)
Power Consumption
Standby Power: 2W / Operating Power: ≤45W
Mount Interface
1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, UL, FCC, CE, CB, RoHS
Touch screen Type
27”Projected Capacitive Touchscreen,
Touch System Interface
USB(or Serial port,one point)
Support System
10 points in win7
Regular Warranty
1 year
-
