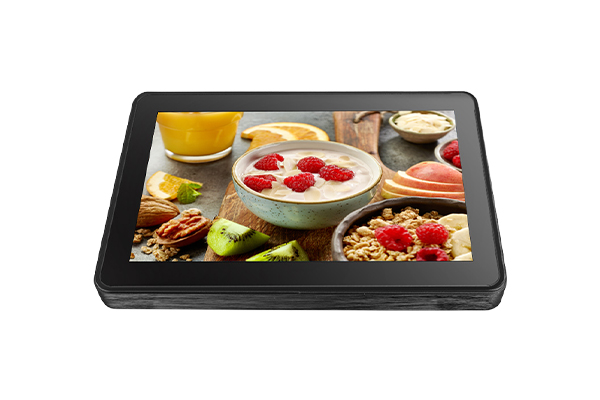

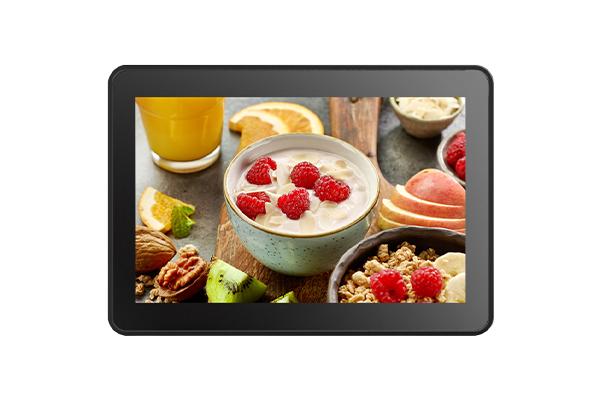

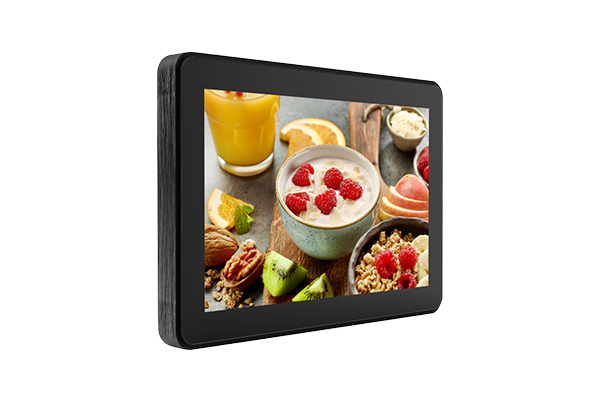

Open Frame Touch Monitor KOT-0101U-CA4P
KOT-0101U-CA4PThis PCAP touch monitor comes with main features as below: 1280*800 high resolution, 800:1 contrast ratio, vandal proof and dust-proof with wide viewing angle. The PCAP touch monitor provides VGA and HDMI interfaces for use, USB port for touch. It is industrial grade PCAP touch monitor, high-quality and durable, which can be normally used in harsh environment. Also, customized services can be offered.
-
Advantages of PCAP Touch Monitor ：
1.High sensitivity and accuracy: PCAP touch monitors offer excellent touch sensitivity, allowing for precise touch input even with a light touch.
2.Multi-touch support: PCAP touch monitors can support multiple simultaneous touch inputs, enabling advanced gestures and providing a more intuitive user experience.
3.Durability: PCAP touch monitors are built with a robust, chemically-strengthened glass surface that is highly resistant to scratches, wear, and damage.
4.Optical clarity: The glass surface of a PCAP touch monitor provides excellent optical clarity, allowing for high-quality image reproduction.
5.Slim and lightweight design: PCAP touch monitors typically have a slim and lightweight profile, which makes them easy to integrate into various systems and installations.
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the PCAP touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the PCAP touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
-
Complete Machine
Model No.
KOT-0101U-CA4P（KOT-101P-002）
Type
OT
Display Type
16:10 Ratio 10.1＂TFT-LCD, LED backlight
Active Area
216.96*135.6(mm)

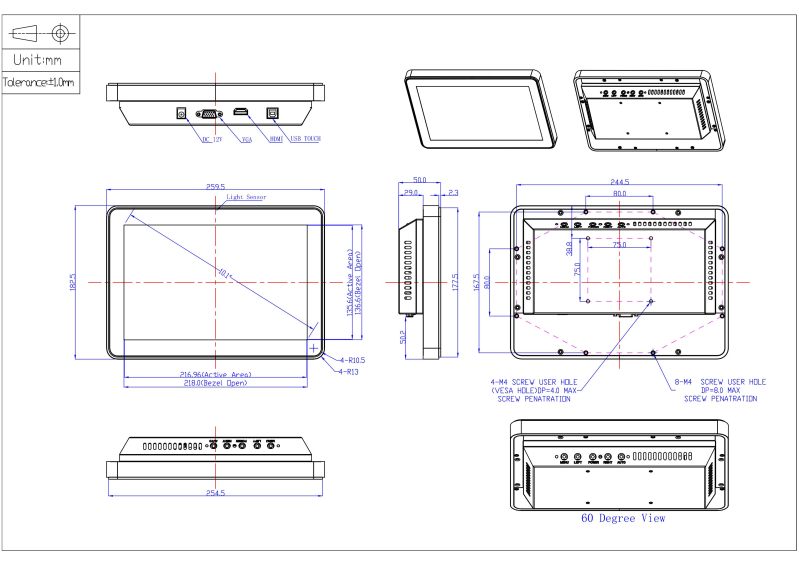

Monitor Dimensions (W*H*D)
259.5*182.5*50(mm)
Suggested Resolution
1280*800 WXGA
Support Colors
16.2M
Brightness (Typ.)
Pure LCD Panel
300cd/m²
With Touch Monitor
255cd/m²
Response Time (Typ.)
16ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
85°/85°
Vertical(up/down)
85°/85°
Contrast Ratio (Typ.)
800:01:00

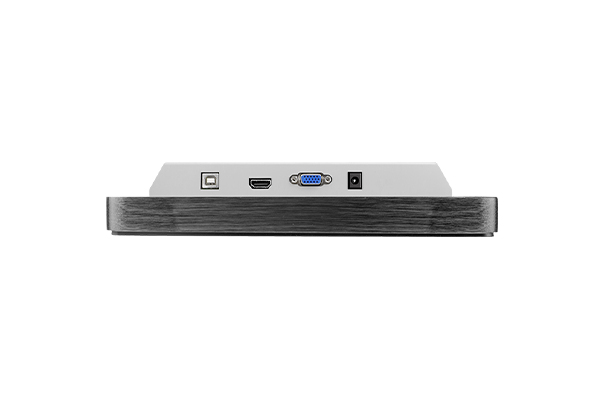

Video Input
VGA/HDMI
Frequency (H/V)
30～80KHz / 60～75Hz
Type: External brick
Power Supply
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Operating Temp.
0～50°C
Operating RH
20%～80%
Environment
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥ 50,000 hours
LED Back Light Life (Typ.)
≥ 50,000 hours
Weight（N.W/G.W）
1.85Kg(1 pcs)4.5Kg(2pcs in one package)
Package dimensions
332*220*285mm(2pcs in one package)
Power Consumption
Standby Power: ≤1W Operating Power: ≤13W

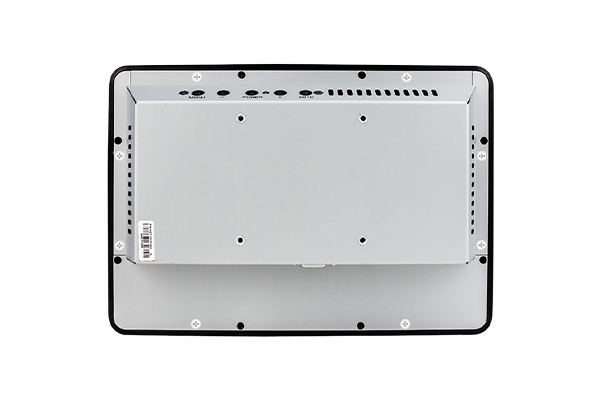

Mount Interface
1. VESA 75mm
2. Mount bracket, horizontal or vertical mount

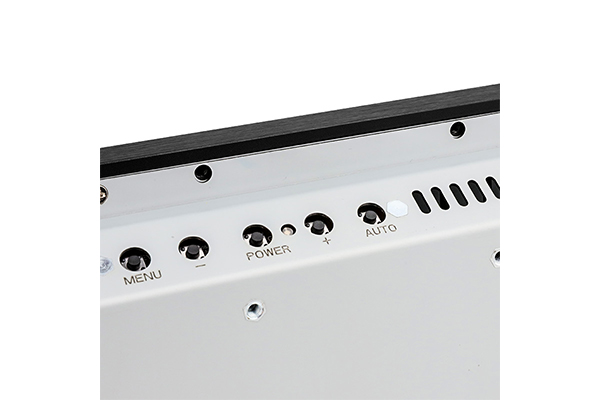

OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, UL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
10.1" capacitive touch screens
Touch input
USB
Response Time
≤10ms
Hardness
6H
Light Transmittance
>85%
Support System
WIN7、WIN8、WIN10support 10points, XP support single point
Active Area
216.96*135.6(mm)
Thickness
3.75±0.2(mm)
Touch Test
≥ 50,000,000 times
Input Voltage
DC 5V±5%
-
