SAW Touch Monitor KOT-0215US-SA4BCP
KOT-0215US-SA4BCP1.Integrated with Keetouch SA touch panel for the ultimate in image quality
2.Future generation panels phased-in without external changes
3.High quality panel with high brightness, contrast ratio and broad viewing angle
4.Worldwide agency approvals
5.Front surface waterproofing
-
SAW Touch monitor Main features:
1、KeeTouch SAW touch screen, free of drift and good touch experience
2、Compact designed dust-proof SAW touch monitor, easy for integration
3、High quality SAW touch monitor with high resolution, high contrast and wide viewing angle
4、Multiple mounting options include VESA mount, horizontal vertical brackets mount

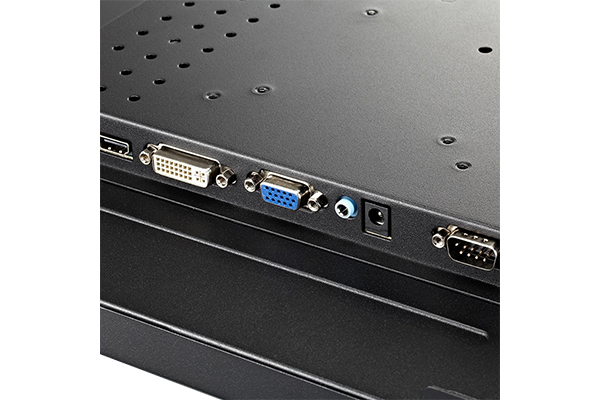

5、VGA+DVI interfaces,USB+RS232 for touch input
6、Support systems: XP,WIN7,WIN8,WIN10, Linux, Android
7、Other sizes are optional or customized (7’’- 43’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2.What’s your MOQ for SAW touch monitor?Our minimum order quantity is 1pc only.3.What is your warranty period for SAW touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4.Can you produce the product according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.5.What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6.What is your delivery time for SAW touch monitor?3-5 work days for inventory orders, 7-15 business days for bulk production. -
Complete Machine
Model No.
KOT-0215US-SA4BCP (PN: KOT-215C-001)
Series
OT
Display Type
16:9 Ratio 21.5" TFT-LCD
Active Area
476.64*268.11(mm)
Monitor Dimensions (W*H*D)
511.7*298*42.6(mm)
Suggested Resolution
1920*1080@ 60Hz
Support Colors
16.2M
Brightness (Typ.)
Pure LCD Panel
250cd/m²
With Touch Monitor
225cd/m²
Response Time (Typ.)
16ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
85°/85°
Vertical(up/down)
80°/80°
Contrast Ratio (Typ.)
1000:01:00
Video Input
VGA/DVI
Frequency (H/V)
30～80KHz / 60～75Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Weight（N.W/G.W）
5.7Kg(1pcs)/13.8Kg(2pcs in one package)
Package dimensions
605*195*400(mm)(2pcs in one package)
Power Consumption
Standby Power: ≤1.5W / Operating Power: ≤20W
Mount Interface

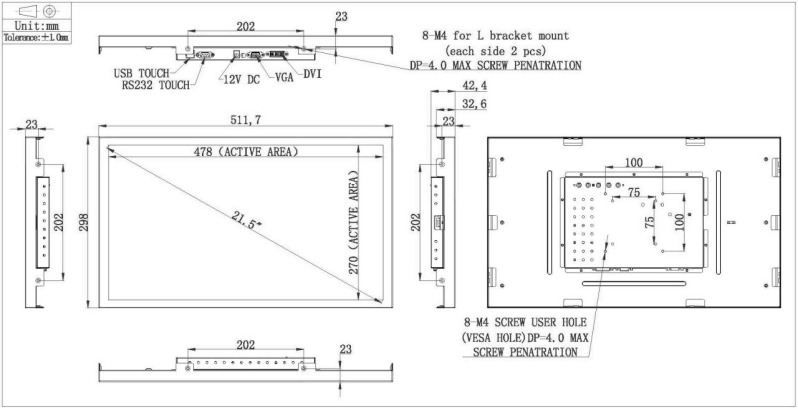

1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, UL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
21.5" Surface acoustic wave touch screen
Touch input
USB/RS232
Response Time
≤8ms(USB) ; ≤12ms(RS232)
Hardness
7H
Light Transmittance
≥90%
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Active Area
478*270(mm)
Thickness
4±0.2(mm)
Touch Test
≥50,000,000 times
Input Voltage
DC 5V±5%
-
