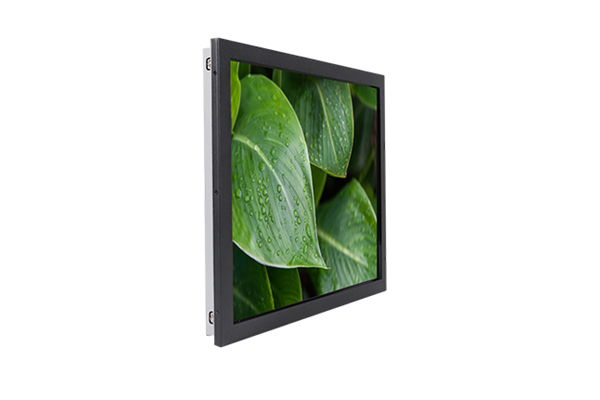

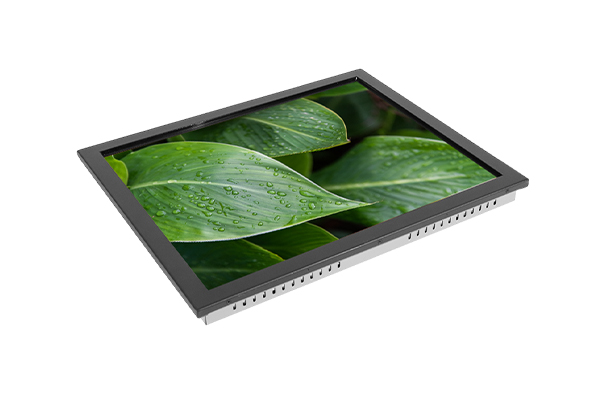

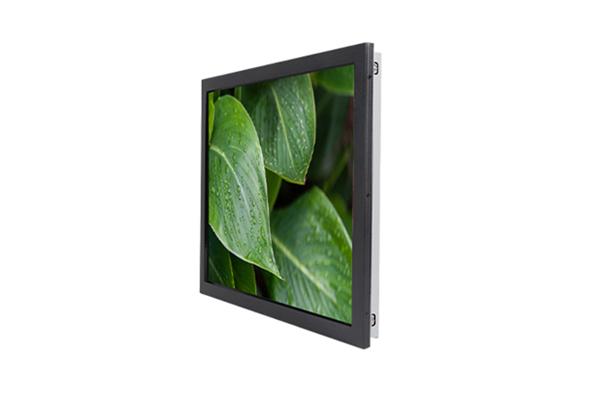

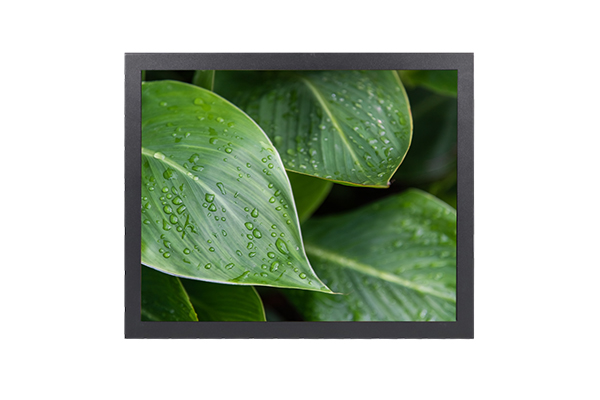

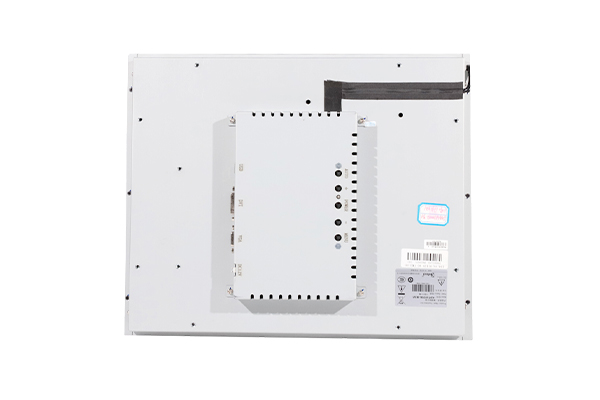

SAW Touch Monitor KOT-0170U-IR4W
KOT-0170U-IR4W1.Integrated with Keetouch IR touch panel for the ultimate in image quality
2.Future generation panels phased-in without external changes
3.High quality panel with high brightness, contrast ratio and broad viewing angle
4.Worldwide agency approvals
-
Advantages of SAW Touch Monitor：
1、High Clarity: SAW touch screens maintain high clarity and contrast levels, even when viewed from different angles or under varying lighting conditions, providing a clear and vibrant display.
2、High Sensitivity: SAW touch screens are highly sensitive and can detect even the slightest touch or gesture, providing a responsive and accurate user experience.
3、Durability: SAW touch screens are highly durable and can withstand heavy usage, making them ideal for use in public places such as retail stores, museums, and airports.
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the SAW Touch Monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the SAW Touch Monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional). -
Complete Machine
Model No.
KOT-0170U-IR4W (P/N:KOT-170C-018)
Series
OT
Display Type
5:4 Ratio 17" TFT-LCD
Active Area
337.9*270.3(mm)

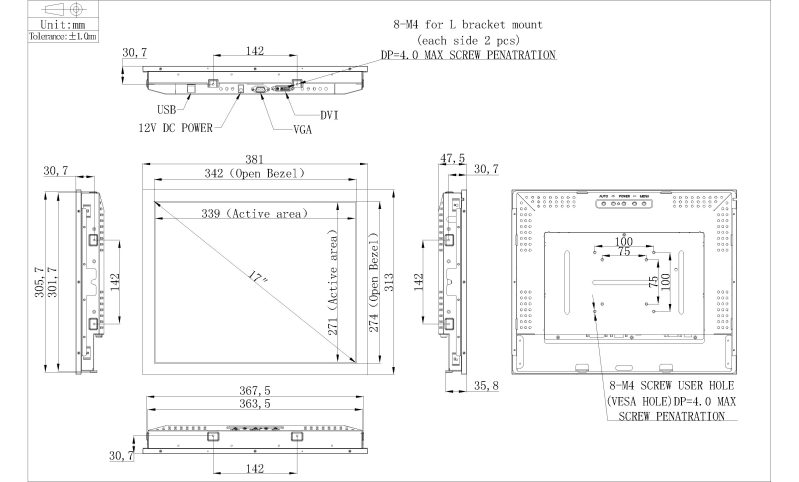

Monitor Dimensions (W*H*D)
381*313*48.5(mm)
Suggested Resolution
1280*1024 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
250cd/m²
With Touch Monitor
225cd/m²
Response Time (Typ.)
5ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
85°/85°
Vertical(up/down)
80°/80°
Contrast Ratio (Typ.)
1000:01:00

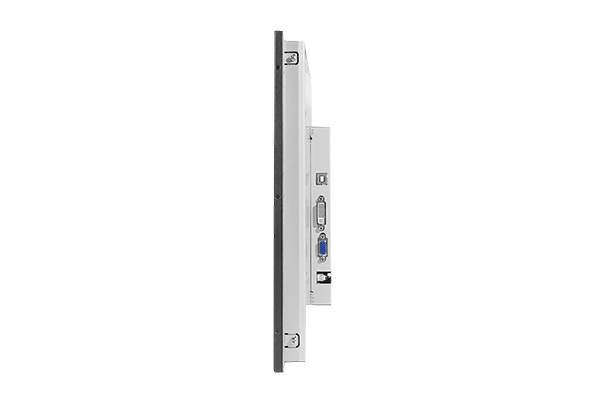

Video Input
VGA/DVI
Frequency (H/V)
30～80KHz / 60～75Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Weight（N.W/G.W）
4.7Kg(1pcs)/10.4Kg(2pcs in one package)
Package dimensions
466*185*403(mm)(2pcs in one package)
Power Consumption
Standby Power: ≤1.5W / Operating Power: ≤20W
Mount Interface
1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
17" Infrared touch screen
Touch input
USB
Response Time
≤32ms
Hardness
7H
Light Transmittance
≥90%
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Active Area
339*271(mm)
Thickness
9±1(mm)
Touch Test
≥50,000,000 times
Input Voltage
DC 5V±5%
-
