SAW Touch Monitor KOT-0156U-SA4BP
KOT-0156U-SA4BP1.Integrated with Keetouch SAW touch panel for the ultimate in image quality
2.Future generation panels phased-in without external changes
3.High quality panel with high brightness, contrast ratio and broad viewing angle
4.Worldwide agency approvals
-
Description Of SAW Touch Monitor：

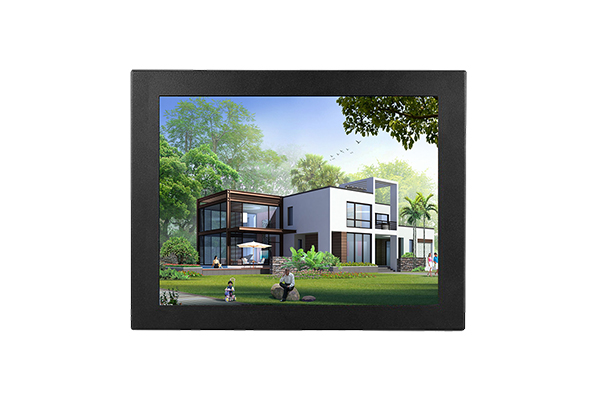

This 15.6" Saw touch monitor comes with saw touchscreen technology, high sensitivity, free of drift and durability, which supports excellent interactive experience. And it delivers high resolution, 16:9 ratio display with good clarity and image quality. Moreover, the saw touch monitor provides VGA and DVI interfaces for use, USB port for touch. With our professional R&D engineers, customized services are available. Other sizes also are optional (7"-55").
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What is your warranty period for the SAW touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).3.What is your delivery time?3-5 work days for inventory orders, 7-15 business days for bulk production.4.Do you give any discount for the SAW touch monitor?We will do utmost to support you with the competitive price, also good service will be offered. -
Complete Machine
Model No.
KOT-0156U-SA4BP (P/N:KOT-156P-004)
Series
OT
Display Type
16:9 Ratio 15.6" TFT-LCD
Active Area
344.23*193.54(mm)

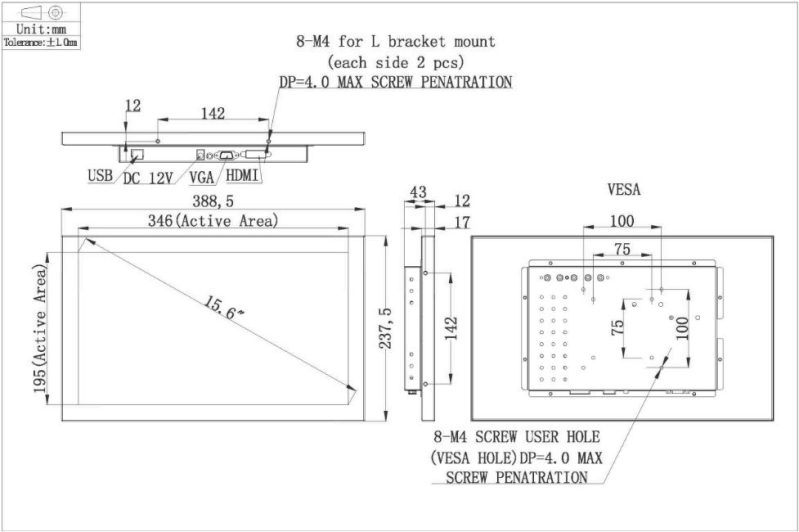

Monitor Dimensions (W*H*D)
388.5*237.5*43(mm)
Suggested Resolution
1920*1080 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
400cd/m²
With Touch Monitor
340cd/m²
Response Time (Typ.)
5ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
70°/70°
Vertical(up/down)
60°/60°
Contrast Ratio (Typ.)
650:01:00
Video Input
VGA/HDMI
Frequency (H/V)
30～80KHz / 50～76Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥15,000 Hours
LED Back Light Life (Typ.)
≥15,000 Hours
Weight（N.W/G.W）
3Kg(1pcs)/8.25Kg(2pcs in one package)
Package dimensions
468*150*323(mm)(2pcs in one package)
Power Consumption
Standby Power: ≤1.5W / Operating Power: ≤15W
Mount Interface
1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount

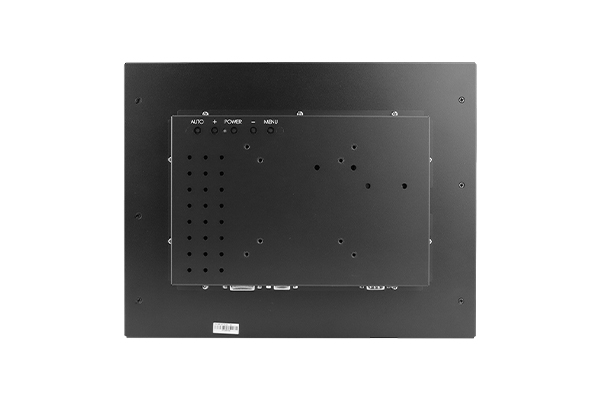

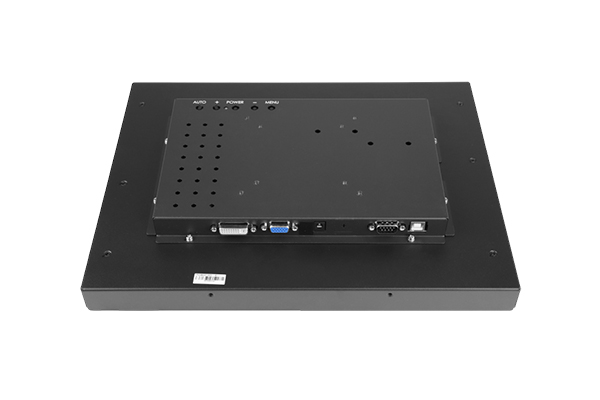

OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
15" Surface acoustic wave touch screen
Touch input
USB
Response Time
≤10ms
Hardness
7H
Light Transmittance
≥90%
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Active Area
346*195(mm)
Thickness
4±0.2(mm)
Touch Test
≥50,000,000 times
Input Voltage
DC 5V±5%
-
