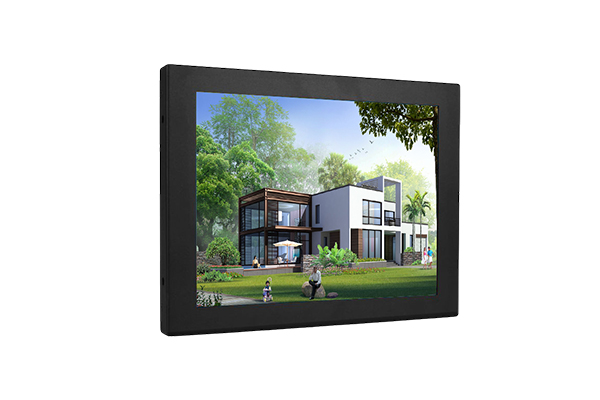

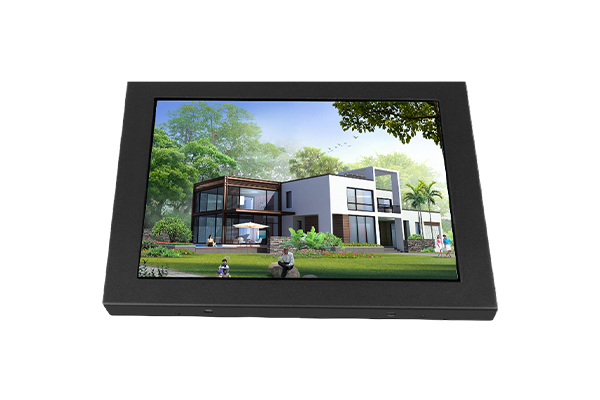

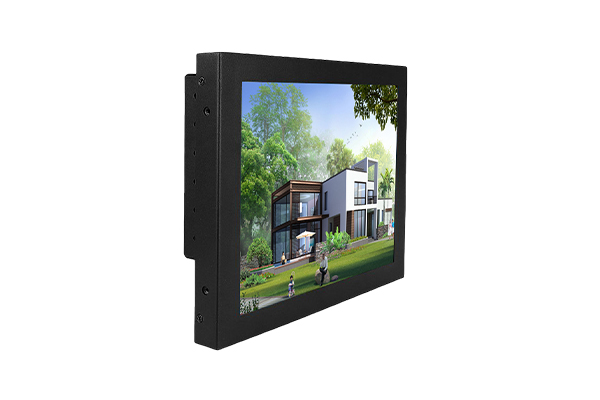

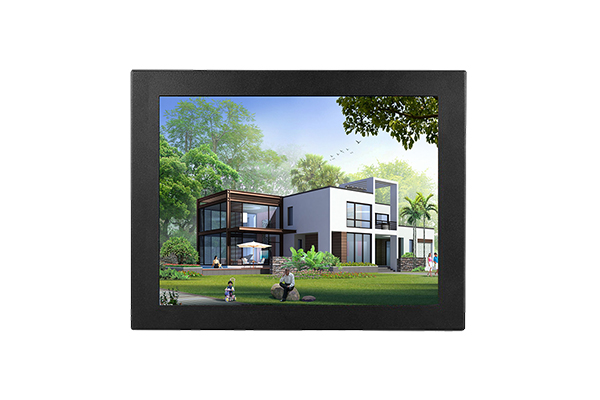

SAW Touch Monitor KOT-0104U-SA4BP
KOT-0104U-SA4BP1.Narrow edge display Touch Solutions .
2.Future generation panels phased-in without external changes.
3.High quality panel with high brightness, high contrast ratio and broad viewing angle.
4.Multiple mounting options including horizontal bracket-mount, vertical bracket mount and VESA mount.
5.Easy integration from side.
6.Finger operation.
7.VGA 、DVI 、HDMI input video format.
8.USB touch interface port.
9.Worldwide agency approvals.
-
Advantages of SAW Touch Monitor：
1、High Clarity: SAW touch screens maintain high clarity and contrast levels, even when viewed from different angles or under varying lighting conditions, providing a clear and vibrant display.
2、High Sensitivity: SAW touch screens are highly sensitive and can detect even the slightest touch or gesture, providing a responsive and accurate user experience.
3、Durability: SAW touch screens are highly durable and can withstand heavy usage, making them ideal for use in public places such as retail stores, museums, and airports.
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the SAW Touch Monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the SAW Touch Monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional). -
Complete Machine
Model No.
KOT-0104U-SA4BP(P/N:KOT-104P-005)
Series
OT
Display Type
4:3 Ratio 10.4＂Active matrix TFT-LCD
Active Area
211.2×158.4(mm)

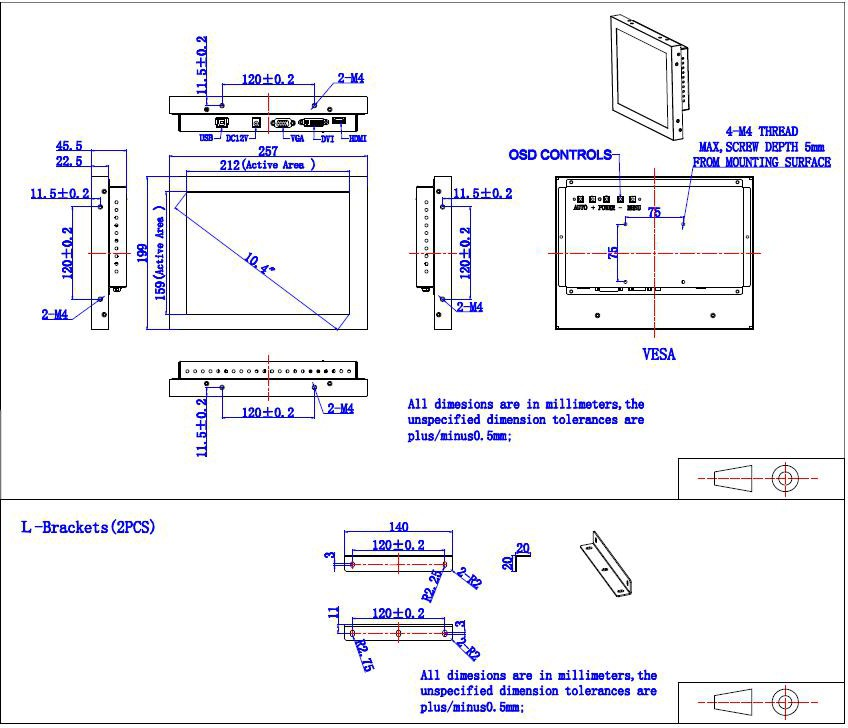

Monitor Dimensions (W*H*D)
257*199*45.5(mm)
Suggested Resolution
800×600 (SVGA)
Support Colors
16.2M
Brightness (Typ.)
Pure LCD Panel
300cd/m²
With Touch Monitor
270cd/m²
Response Time (Typ.)
30ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right):75°/75°
Vertical(up/down): 50°/60°
Contrast Ratio (Typ.)
500:01:00
Video Input
VGA\DVI\HDMI
Frequency (H/V)
30～80KHz / 60～75Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥50,000 Hours
LED Back Light Life (Typ.)
≥50,000 Hours
Weight（N.W/G.W）
2.25Kg（1pcs）/6.55Kg（2pcs in one package）(Approx.)
Package dimensions
330*220*280(mm)(2pcs in one package)
Power Consumption
Standby Power: ≤2W / Operating Power: ≤7W
Mount Interface
Mount bracket, horizontal or vertical mount

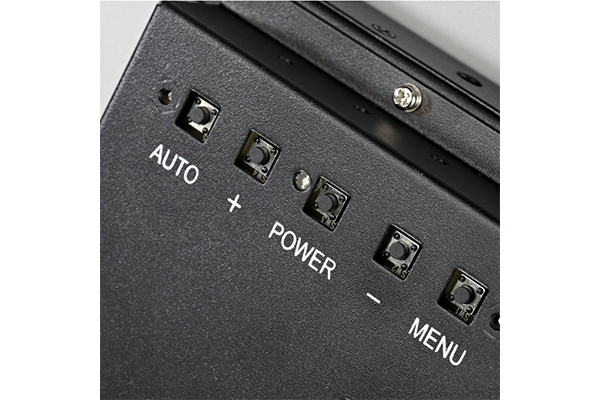

OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Touch Type
10.4”SAW 4mm thickness of touch screen
Touch Input
USB
Response Time
8.4ms
CCC, UL, FCC, CE, CB, RoHS
Regular Warranty
1 year
-
