Open Frame Touch Monitor KOT-0430U-CA4P
KOT-0430U-CA4P1.Integrated with Keetouch PCAP touch panel for the ultimate in image quality
2.Future generation panels phased-in without external changes
3.High quality panel with high brightness, contrast ratio and broad viewing angle
4.Worldwide agency approvals
5.IP65 of front surface
6.Tempered glass cover
-
PCAP Touch Monitor Main Features:
1、PCAP multi-touch panel, great touch experience
2、High-quality industrial touch panel with high resolution, full viewing angle
3、Vandal-proof and IP65 front surface water-proof PCAP touch monitor
4、Pure flat designed, durable and fashionable PCAP touch monitor
5、VGA+DVI+HDMI interfaces,USB for touch input
6、Multiple mounting options include VESA mount, horizontal or vertical brackets mount
7、Support system: XP, WIN7, WIN8, WIN10, Linux, Android
8、Other sizes are optional (7’’- 43’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the PCAP touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the PCAP touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the PCAP touch monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.5. What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6. What is your delivery time?3-5 work days for inventory orders, 7-15 business days for bulk production. -
Complete Machine
Model No.
KOT-0430U-CA4P(P/N:KOT-430P-004-02)
Series
OT
Display Type
16:9 Ratio 43" TFT-LCD
Active Area
942.9*531.25 (mm)

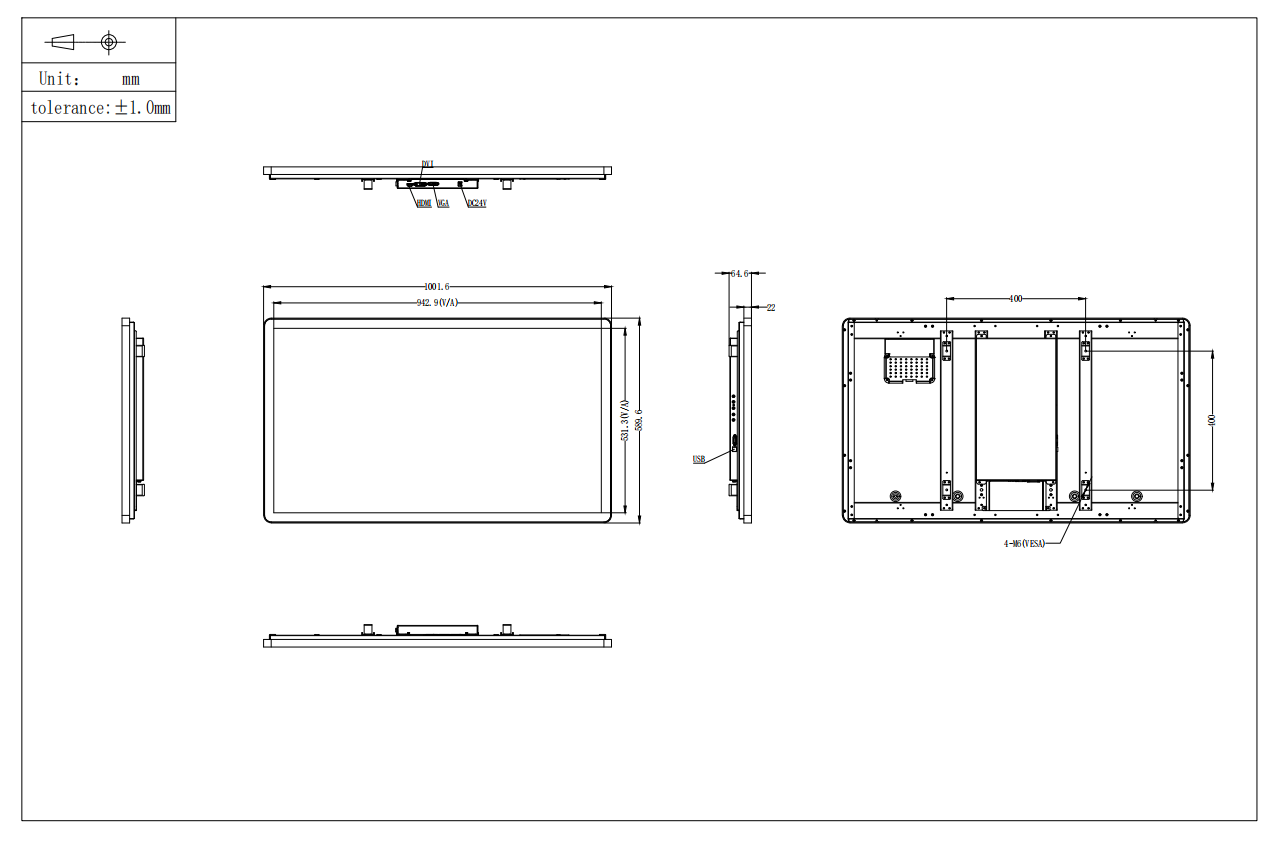

Monitor Dimensions (W*H*D)
1004*592*64.6 (mm)
Suggested Resolution
1920x1080 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
380cd/m²
With Touch Monitor
320cd/m²
Response Time (Typ.)
6.5 ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
89°/89°
Vertical(up/down)
89°/89°
Contrast Ratio (Typ.)
3000:01:00
Video Input
VGA\DVI\HDMI
Frequency (H/V)
30～80KHz / 60～75Hz
Power Supply
Type: External brick
Display voltage: DC 24V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
-10～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
50,000 Hours
LED Back Light Life (Typ.)
50,000 Hours
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, ETL, FCC, CE, CB, RoHS
Touch Type
43" Capacitive touch screens, antiglare and tempered type
Touch input
USB
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Regular Warranty
1 year
-
