Open Frame Touch Monitor KOT-0150U-CA4P
KOT-0150U-CA4P1.Future generation panels phased-in without external changes
2.High quality panel with high brightness, contrast ratio and broad viewing angle
Worldwide agency approvals
3.Customizable：Anti-glare , Anti-vandal , Dust-proof
4.VGA/HDMI
-
15 Inch PCAP Touch Monitor Anti-glare for Kiosks：
1、KeeTouch PCAP touch screen, excellent interactive experience
2、High resolution, high contrast, wide viewing angle with super image quality
3、Anti-vandal, anti-glare and dust-proof PCAP touch monitor
4、VGA&HDMI interfaces, USB for touch
5、Multiple mounting options include VESA mount, horizontal and vertical brackets mount
6、Operation system: XP, WIN7, WIN8, WIN10, Linux, Android
7、Other sizes can be offered (7’’- 43’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the PCAP Touch Monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the PCAP Touch Monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the PCAP Touch Monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed. -
Complete Machine
Model No.
KOT-0150U-CA4P (P/N:KOT-150P-008)
Series
OT
Display Type
4:3 Ratio 15" TFT-LCD
Active Area
304.1*228.1(mm)

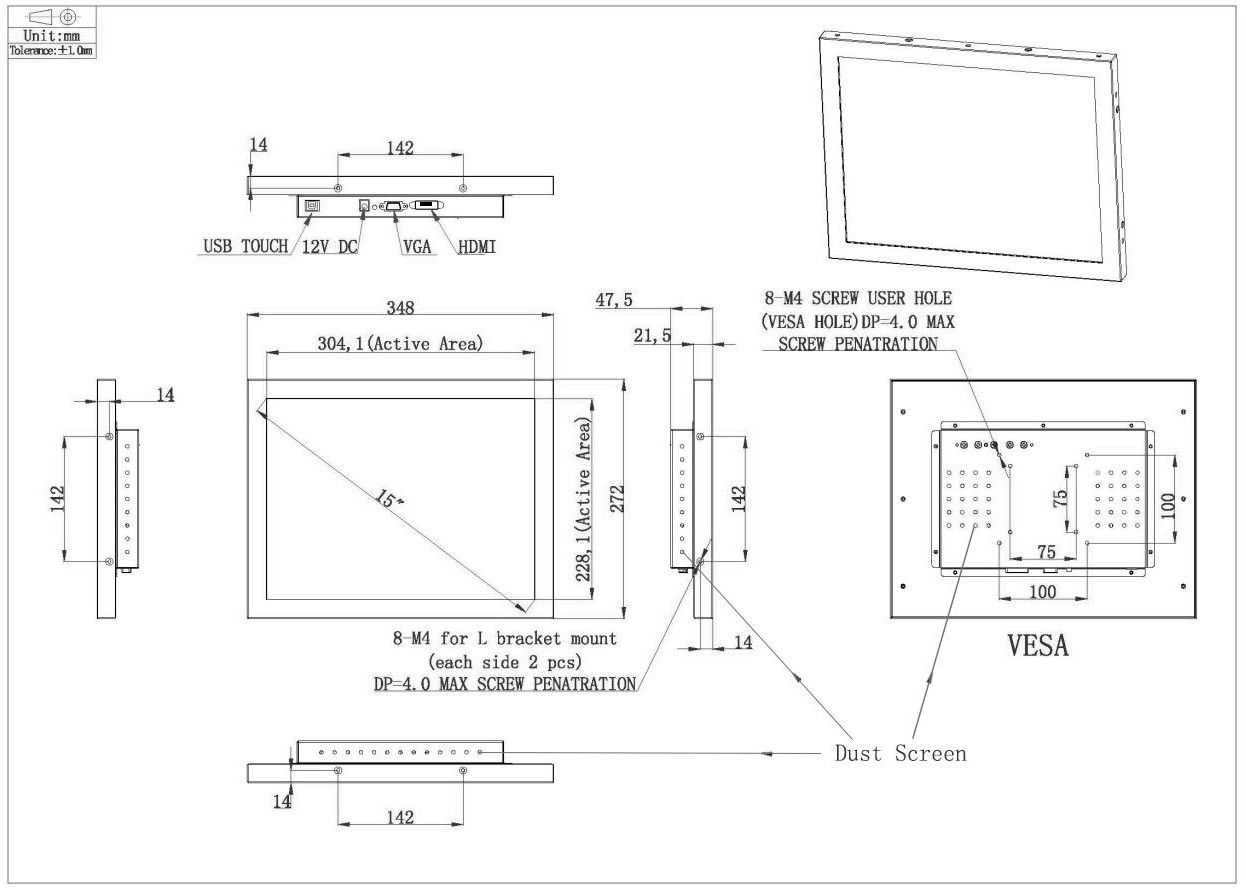

Monitor Dimensions (W*H*D)
348*272*47.5(mm)
Suggested Resolution
1024*768 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
With Touch Monitor
297cd/m²
Response Time (Typ.)
16ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
80°/80°
Vertical(up/down)
80°/80°
Contrast Ratio (Typ.)
1000:01:00
Video Input
VGA/HDMI
Frequency (H/V)
50～80KHz / 55～70Hz
Type: External brick
Power Supply
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Operating Temp.
-0～50°C
Operating RH
20%～80%
Environment
Storage Temp.
-10～60°C
Storage RH
10%～90%
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Weight（N.W/G.W）
3.5Kg(1pcs)/8Kg(2pcs in one package)
Package dimensions
429*183*356(mm)(2pcs in one package)
Power Consumption
Standby Power: ≤1.5W / Operating Power: ≤20W
Mount Interface
1. VESA 75mm and 100mm
2. Mount bracket, horizontal or vertical mount
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
15" Capacitive touch screens
Touch input
USB
Response Time
≤8ms
Hardness
6H
Light Transmittance
≥85%
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Active Area
305.1*229.1(mm)
Thickness
4.3±0.2(mm)
Touch Test
≥50,000,000 times
Input Voltage
DC 5V±5%
-
