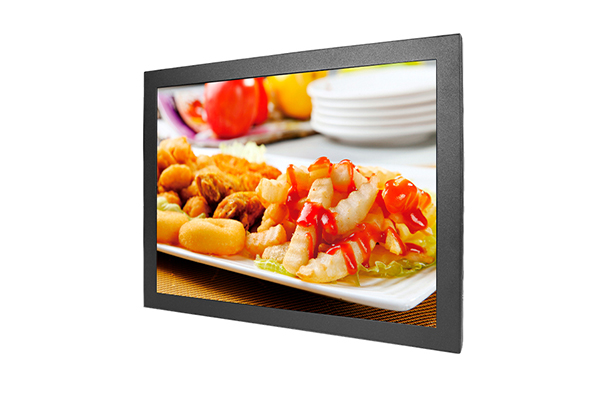

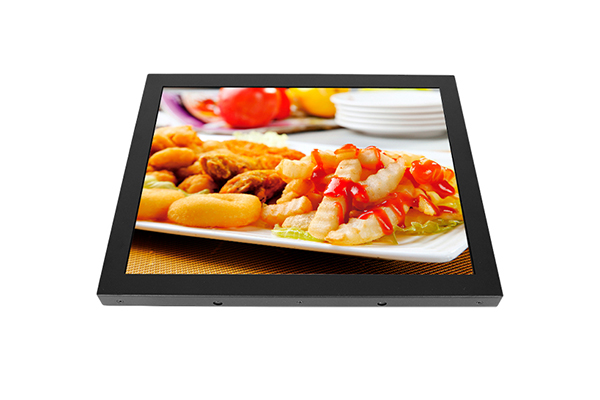

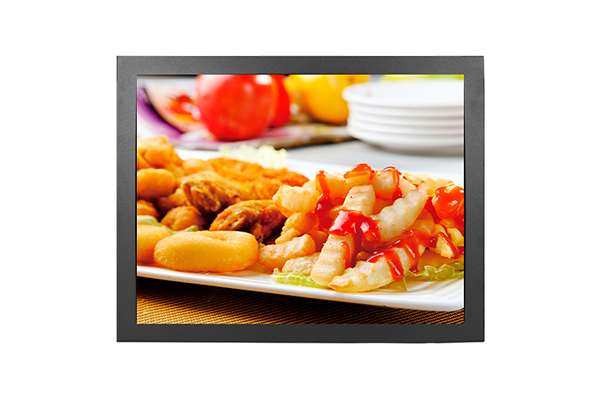

Open Frame Touch Monitor KOT-0121U-CA4P
KOT-0121U-CA4P1.Integrated with Keetouch CA touch panel for the ultimate in image quality
2.Future generation panels phased-in without external changes
3.High quality panel with high brightness, contrast ratio and broad viewing angle
4.Worldwide agency approvals
-
12.1 Inch PCAP Touch Monitor 4:3 Ratio Display for Kiosks：
1、With PCAP touch screen, fast response and high sensitivity
2、1400x1050 high resolution, high contrast with high image quality
3、Vandal-proof industrial grade PCAP touch monitor
4、VGA&DVI&HDMI interfaces, USB port for touch

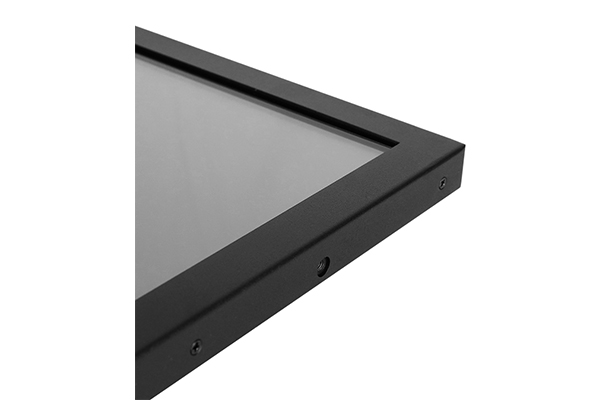

5、Multiple mounting options include VESA mount, horizontal and vertical brackets mount
6、Operation system: XP, WIN7, WIN8, WIN10
7、Other sizes (7’’- 43’’) can be offered.
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the PCAP Touch Monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the PCAP Touch Monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the PCAP Touch Monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed. -
Complete Machine
Model No.
KOT-0121U-CA4P (P/N:KOT-121P-010)
Series
OT
Display Type
4:3 Ratio 12.1" TFT-LCD
Active Area
245.8*184.3(mm)
Monitor Dimensions (W*H*D)
281*219.5*44.5(mm)
Suggested Resolution
1400*1050 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
350cd/m²
With Touch Monitor
297cd/m²
Response Time (Typ.)
5ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
50°/50°
Vertical(up/down)
45°/50°
Contrast Ratio (Typ.)
800:1
Video Input
VGA/DVI/HDMI
Frequency (H/V)
30～80KHz / 60～75Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥ 50,000 Hours
LED Back Light Life (Typ.)
≥ 50,000 Hours
Weight（N.W/G.W）
2.3Kg(1pcs) / 5.25Kg(2pcs in one package)
Package dimensions
373*170*317(mm)(2pcs in one package)
Power Consumption
Standby Power: ≤1.5W / Operating Power: ≤12W

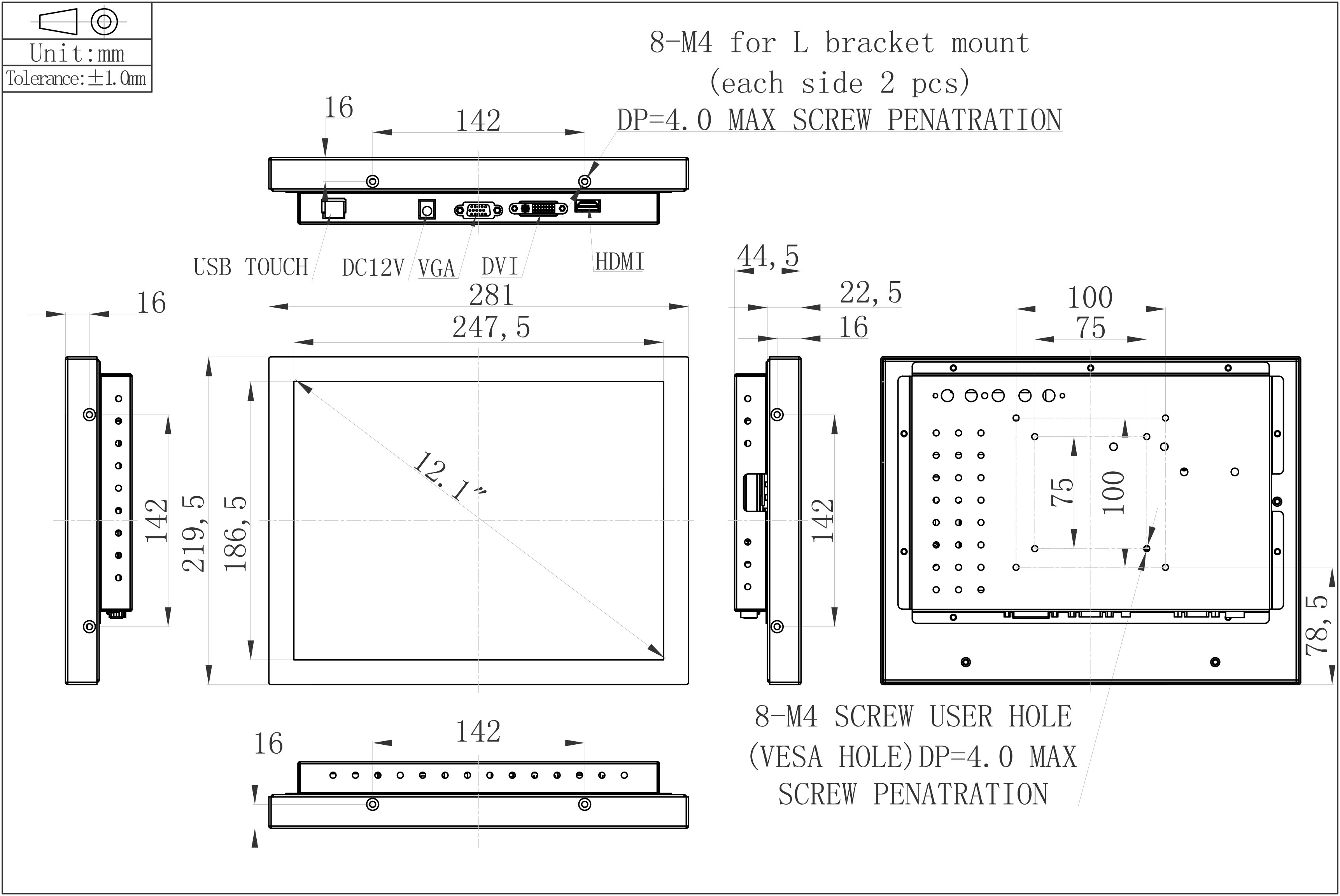

Mount Interface
1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
12.1" Riot capacitive touch screens
Touch input
USB
Response Time
≤10ms
Hardness
6H
Light Transmittance
≥85%
Support System
Multi-Touch : WIN7、WIN8、WIN10
Single Touch : XP
Active Area
247.5*186.5(mm)
Thickness
3.3±0.2(mm)
Touch Test
≥ 50,000,000 times
Input Voltage
DC 5V±5%
-
