SAW Touch Monitor KOT-0220US-SA6BP
KOT-0220US-SA6BP1.Long lasting product cycle-enclosure controlled by Keetouch specifications.
2.Future generation panels phased-in without external changes.
3.High quality panel with high brightness, high contrast ratio and broad viewing angle.
4.Multiple mounting options including VESA mount, horizontal or vertical bracket-mount.
5.Keetouch’s SAW technology on pure glass for the ultimate in image quality.
6.Dual USB and RS232 touch interface port.
7.Worldwide agency approvals.
-
SAW Touch monitor Main features:
1、KeeTouch SAW touch panel, accurate touch and fast response
2、High-quality, dust-proof SAW touch monitor, durable in harsh environment
3、High resolution, high contrast, superior quality image with wide viewing angle
4、Multiple mounting options include VESA mount, horizontal or vertical brackets mount
5、VGA+DVI interfaces,USB/RS232 for touch input
6、Support systems: XP,WIN7,WIN8,WIN10, Linux, Android
7、Other sizes are available (7’’- 43’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2.What’s your MOQ for SAW touch monitor?Our minimum order quantity is 1pc only.3.What is your warranty period for SAW touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4.Can you produce the product according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.5.What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6.What is your delivery time for SAW touch monitor?3-5 work days for inventory orders, 7-15 business days for bulk production. -
Complete Machine
Model No.
KOT-0220US-SA6BP (P/N:KOT-220P-014)
Series
OT
Display Type
16:10 Ratio 22" TFT-LCD
Active Area
376.32*301.06 (mm)
Monitor Dimensions (W*H*D)
473.8 mm×296.1 mm
Suggested Resolution
1680*1050@ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
250cd/m2
With Touch Monitor
225cd/m2
Response Time (Typ.)
5ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
85°/85°
Vertical(up/down)
80°/80°
Contrast Ratio (Typ.)
1000:01:00
Video Input
VGA/DVI
Video Input connector
Mini D-Sub 15-pin VGA and DVI-D
Frequency (H/V)
30 -80KHz/ 60～75Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Weight（N.W/G.W）
7.4Kg(1pcs)/20.8Kg(2pcs in one package)
Package dimensions
635*190*435(mm)(2pcs in one package)
Power Consumption
Standby Power: ≤1.5W / Operating Power: ≤30W

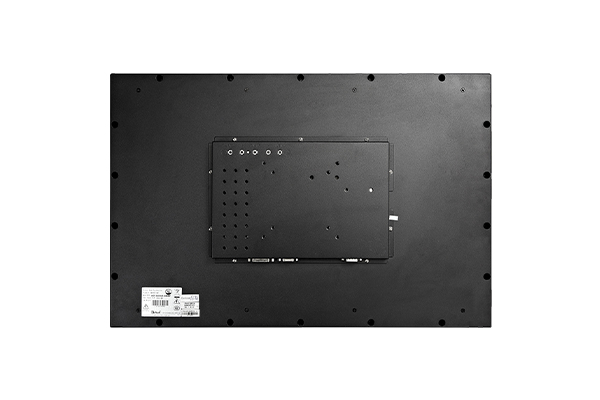

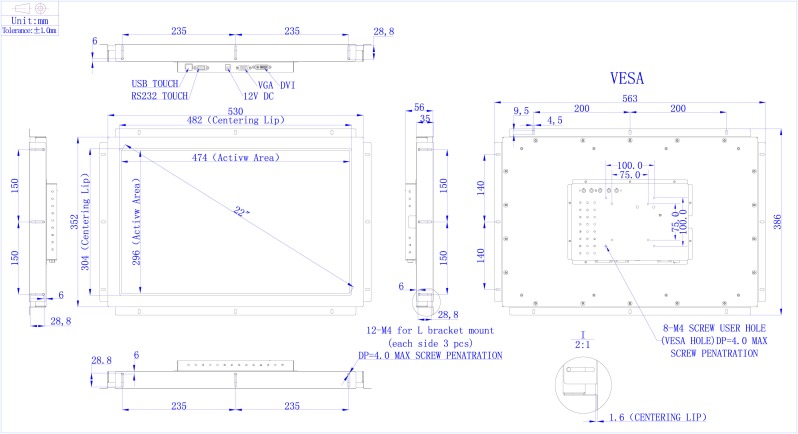

Mount Interface
1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount

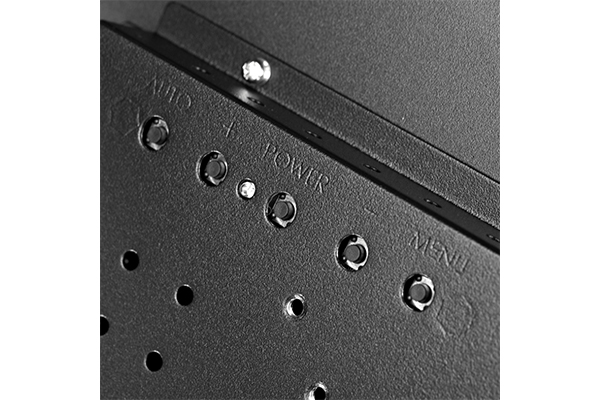

OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Touch Screen Type
22" Surface acoustic wave touch screen(6mm)
Touch input
USB/RS232
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
-
