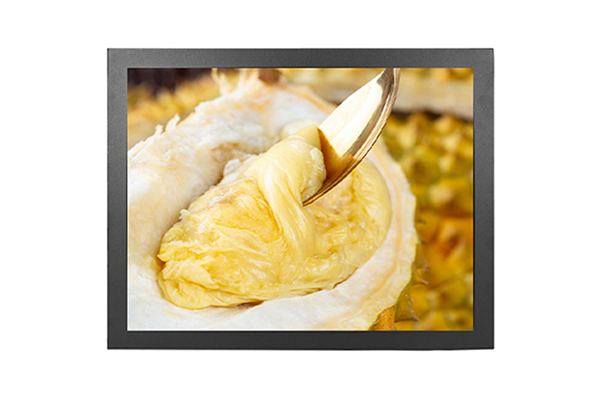

SAW Touch Monitor KOT-0190US-SA4BCW
KOT-0190US-SA4BCW1.Integrated with Keetouch SA touch panel for the ultimate in image quality
2.Future generation panels phased-in without external changes
3.High quality panel with high brightness, contrast ratio and broad viewing angle
4.Worldwide agency approvals
5.Front surface waterproofing
-
Main features:

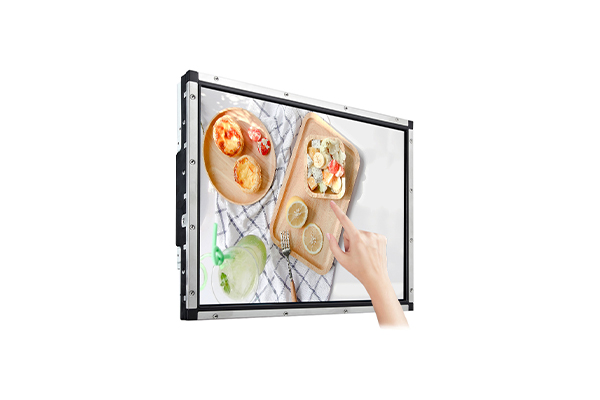

1、KeeTouch SAW touch screen, finger operation
2、Professional design with front surface waterproofing function
3、High quality panel with high contrast ratio and wide viewing angle
4、Multiple mounting options include VESA mount, horizontal vertical brackets mount

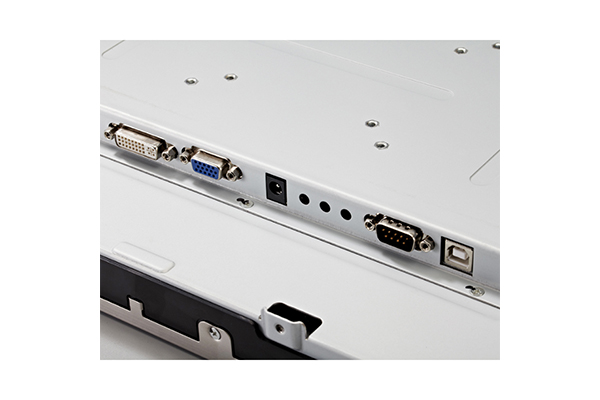

5、VGA+DVI interfaces,USB/ RS232 for touch
6、Operation system: XP,WIN7,WIN8,WIN10, Linux, Android
7、Other sizes are optional (7’’- 43’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2.What’s your MOQ?Our minimum order quantity is 1pc only.3.What is your warranty period?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4.Can you produce the product according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.5.What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6.What is your delivery time?3-5 work days for inventory orders, 7-15 business days for bulk production.
-
Complete Machine
Model No.
KOT-0190US-SA4BCW (P/N:KOT-190C-013)
Series
OT
Display Type
5:4 Ratio 19" TFT-LCD
Active Area
376.32*301.06 (mm)

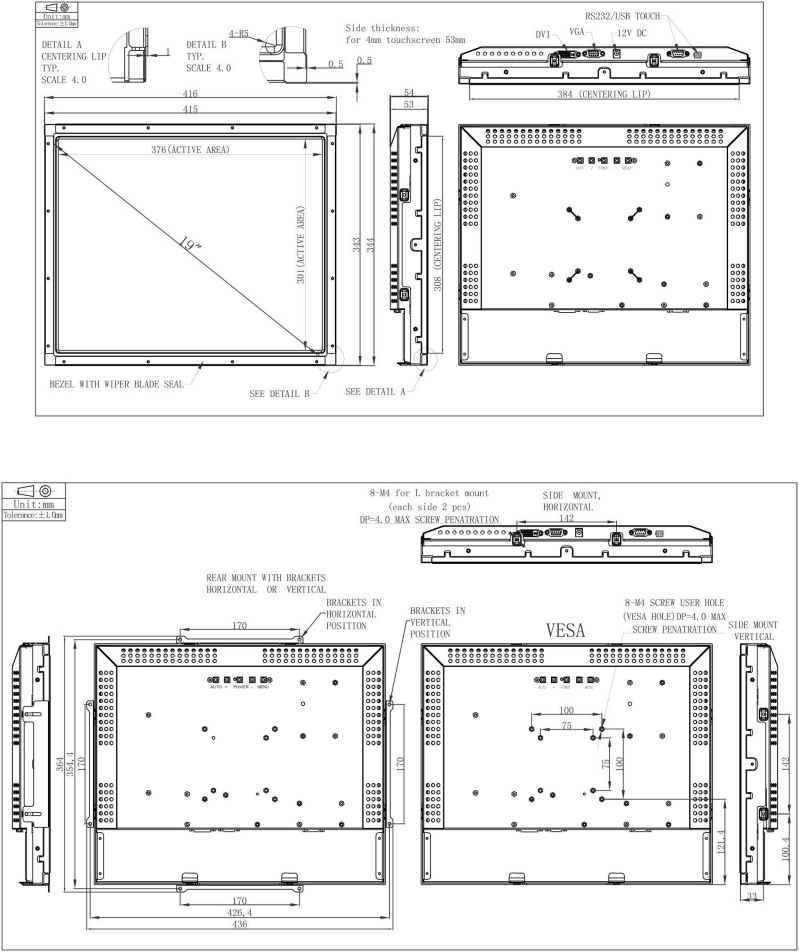

Monitor Dimensions (W*H*D)
416*344*54(mm)
Suggested Resolution
1280x1024 @ 60Hz
Support Colors
16.7M
Pure LCD Panel
250cd/m2
Brightness (Typ.)
With Touch Monitor
225cd/m2
Response Time (Typ.)
5ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
85°/85°
Vertical(up/down)
80°/80°
Contrast Ratio (Typ.)
1000:01:00
Video Input
VGA/DVI
Frequency (H/V)
37.9 -80KHz/ 60～75Hz
Type: External brick
Power Supply
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Operating Temp.
0～50°C
Operating RH
20%～80%
Environment
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥50,000 Hours
LED Back Light Life (Typ.)
≥50,000 Hours
Weight（N.W/G.W）
5Kg(1pcs)/13.5Kg(2pcs in one package)
Package dimensions
530*250*460(mm)(2pcs in one package)
Power Consumption
Standby Power: ≤1.5W / Operating Power: ≤20W

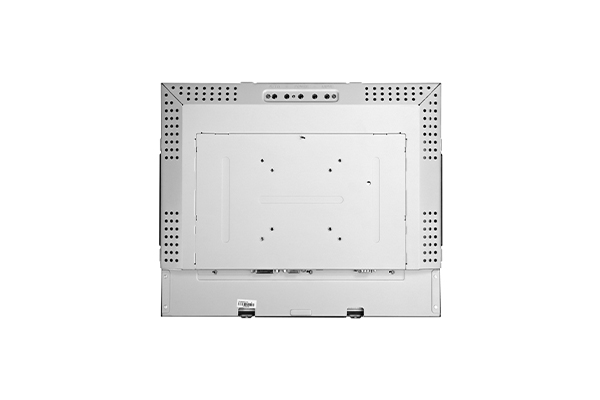

1. VESA 75mm and 100mm
Mount Interface
2. Mount bracket, horizontal or vertical mount

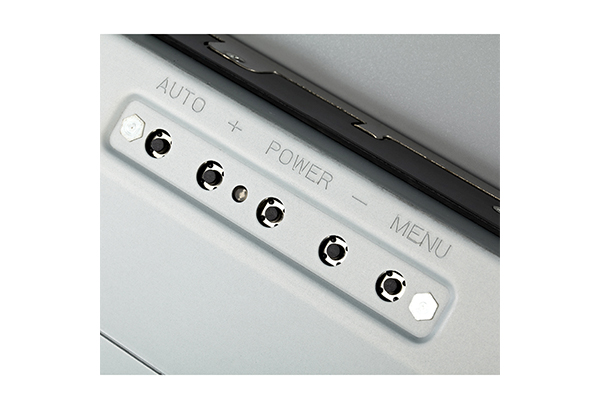

Buttons
AUTO,+,POWER,-,MENU
OSD Control
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
19" Surface acoustic wave touch screen
Touch input
USB/RS232
Response Time
≤8ms(USB) ; ≤12ms(RS232)
Hardness
7H
Light Transmittance
≥90%
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Active Area
382*305(mm)
Thickness
4±0.1(mm)
Touch Test
≥50,000,000 times
Input Voltage
DC 5V±5%
-
