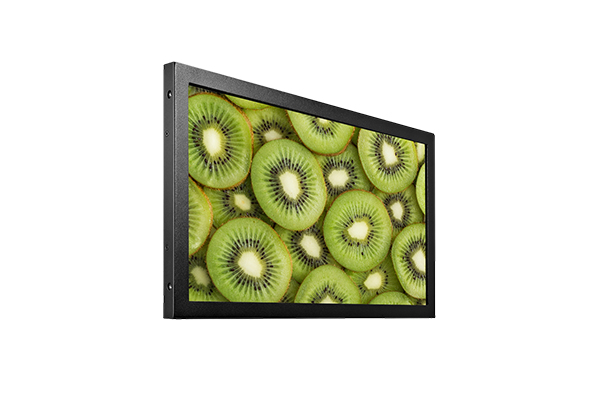

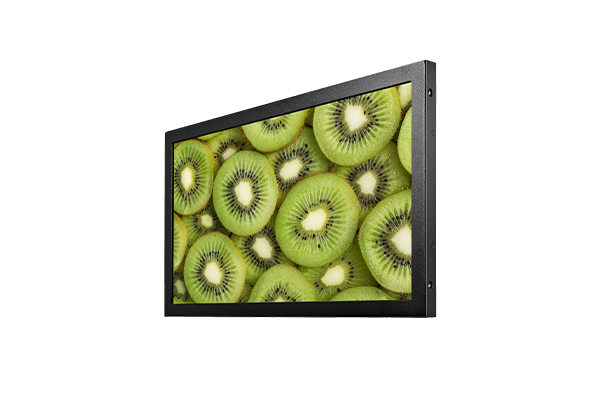

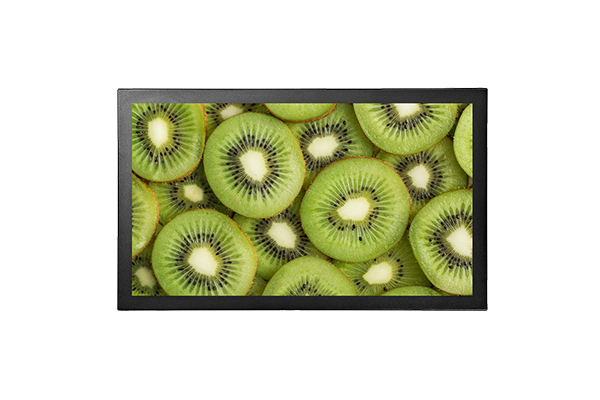

SAW Touch Monitor KOT-0185US-SA4BP
KOT-0185US-SA4BP1.Integrated with Keetouch SA touch panel for the ultimate in image quality
2.Future generation panels phased-in without external changes
3.High quality panel with high brightness, contrast ratio and broad viewing angle
4.Worldwide agency approvals
-
SAW Touch monitor Main features:
1、KeeTouch SAW touch screen, finger operation

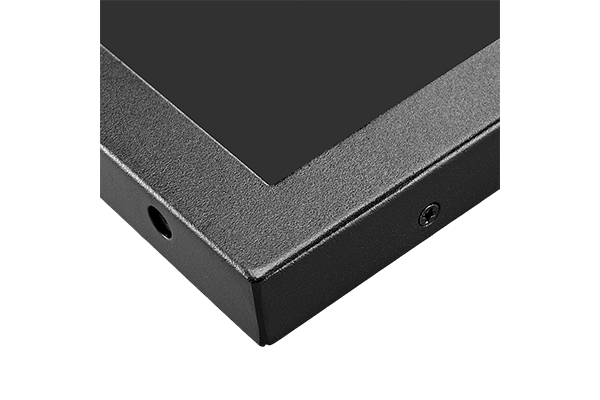

2、Industrial grade SAW touch monitor with dust-proof function
3、High quality panel with high resolution, high contrast ratio and wide viewing angle
4、Multiple mounting options include VESA mount, horizontal vertical brackets mount

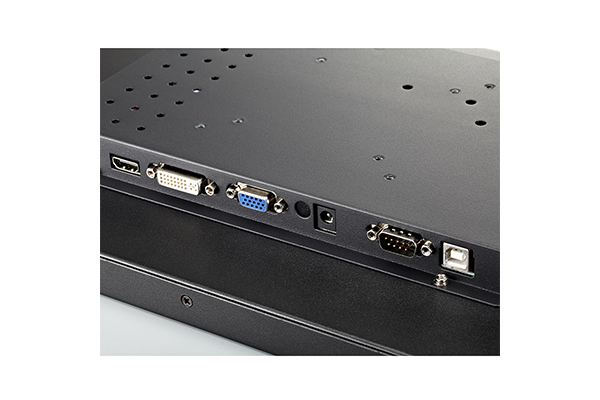

5、VGA+DVI+HDMI interfaces,USB+RS232 for touch input
6、Operation system: XP,WIN7,WIN8,WIN10, Linux, Android
7、Other sizes can be offered (7’’- 43’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2.What’s your MOQ for SAW touch monitor?Our minimum order quantity is 1pc only.3.What is your warranty period for SAW touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4.Can you produce the product according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.5.What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6.What is your delivery time for SAW touch monitor?7. 3-5 work days for inventory orders, 7-15 business days for bulk production. -
Complete Machine
Model No.
KOT-0185US-SA4BP (P/N:KOT-185P-002)
Series
OT
Display Type
16:9 Ratio 18.5" TFT-LCD
Active Area
409.8*230.4(mm)

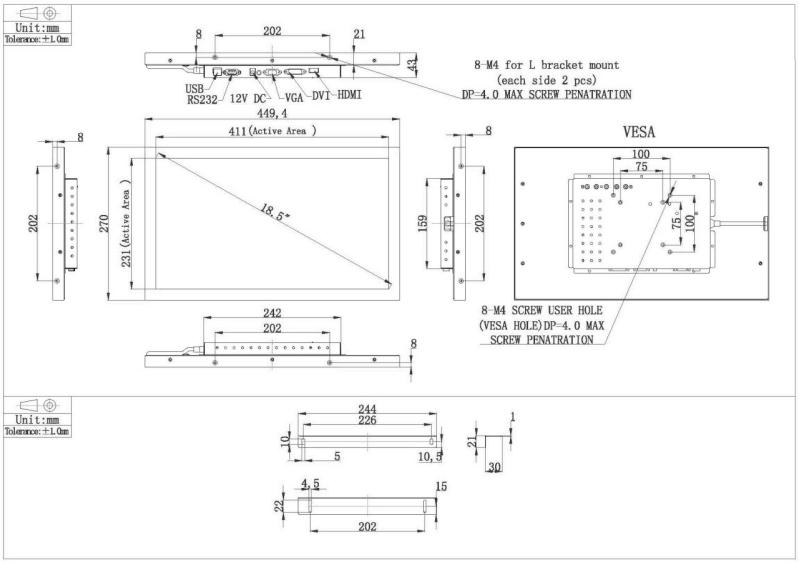

Monitor Dimensions (W*H*D)
449.4*270*43(mm)
Suggested Resolution
1366*768 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
250cd/m2
With Touch Monitor
225cd/m2
Response Time (Typ.)
5ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
85°/85°
Vertical(up/down)
80°/80°
Contrast Ratio (Typ.)
1000:01:00
Video Input
VGA/DVI/HDMI
Frequency (H/V)
30～48KHz / 50～76Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Weight（N.W/G.W）
4.6Kg(1pcs)/11.5Kg(2pcs in one package)
Package dimensions
525*190*380(mm)(2pcs in one package)
Power Consumption
Standby Power: ≤1.5W / Operating Power: ≤25W

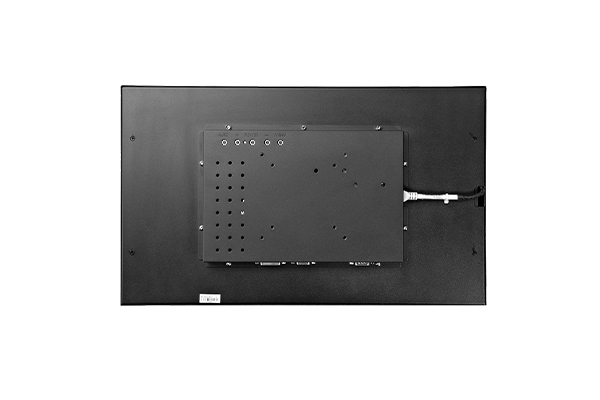

Mount Interface
1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
18.5" Surface acoustic wave touch screen
Touch input
USB/RS232
Response Time
≤8ms(USB) ; ≤12ms(RS232)
Hardness
7H
Light Transmittance
≥90%
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Active Area
411*231(mm)
Thickness
4±0.1(mm)
Touch Test
≥50,000,000 times
Input Voltage
DC 5V±5%
-
