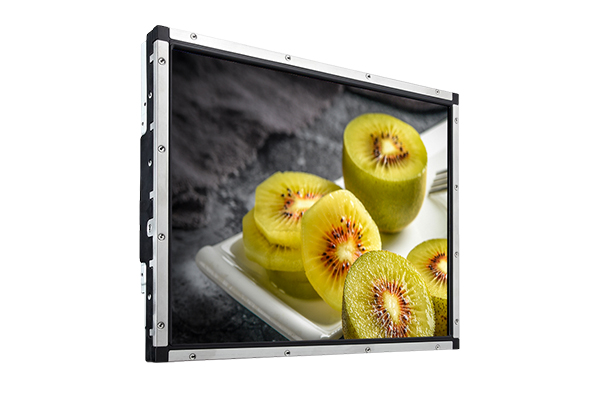

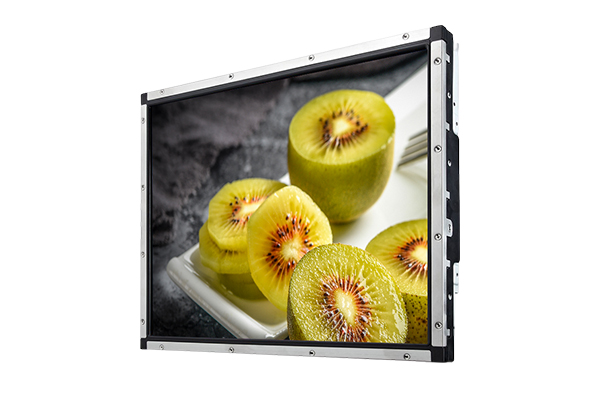

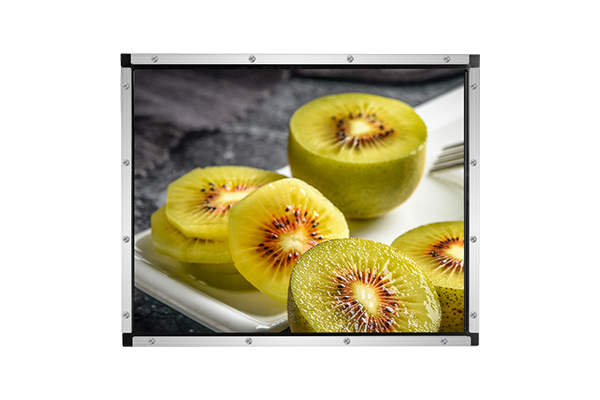

SAW Touch Monitor KOT-0170U-SA4BCW
KOT-0170U-SA4BCW1.Integrated with Keetouch SA touch panel for the ultimate in image quality
2.Future generation panels phased-in without external changes
3.High quality panel with high brightness, contrast ratio and broad viewing angle
4.Worldwide agency approvals
-
SAW Touch monitor Main features:
1、SAW touch panel, accurate touch, high-quality touch experience
2、Compact design, IP65 surface waterproof SAW touch monitor
3、High resolution, high contrast SAW touch monitor with superior clarity image
4、Multiple mounting options include VESA mount, horizontal or vertical brackets mount

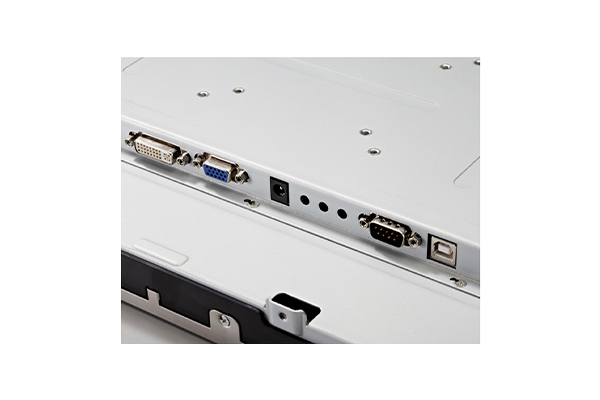

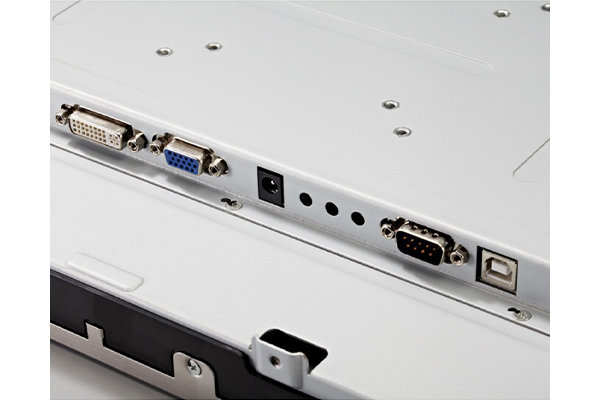

5、VGA+DVI interfaces,USB/RS232 for touch input
6、Support systems: XP,WIN7,WIN8,WIN10
7、Other sizes can be offered (7’’- 43’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2.What’s your MOQ for SAW touch monitor?Our minimum order quantity is 1pc only.3.What is your warranty period for SAW touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4.Can you produce the product according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.5.What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6.What is your delivery time for SAW touch monitor?3-5 work days for inventory orders, 7-15 business days for bulk production. -
Complete Machine
Model No.
KOT-0170US-SA4BCW(P/N:KOT-170C-019)
Series
OT
Display Type
5:4 Ratio 17" TFT-LCD
Active Area
337.920*270.336(mm)

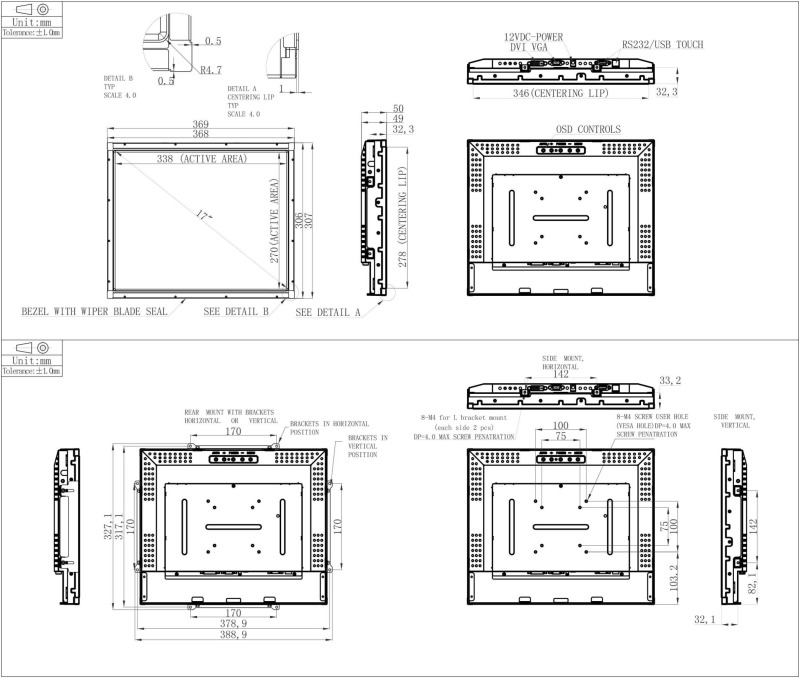

Monitor Dimensions (W*H*D)
369*307*50(mm)
Suggested Resolution
1280*1024 @ 60Hz
Support Colors
16.7M
Pure LCD Panel
250cd/m²
Brightness (Typ.)
With Touch Monitor
225cd/m²
Response Time (Typ.)
5ms
Horizontal(left/right)
85°/85°
Viewing Angle(Typ.at CR＞10)）
Vertical(up/down)
80°/80°
Contrast Ratio (Typ.)
1000:01:00
Video Input
VGA/DVI
Frequency (H/V)
37.9～80KHz / 60～75Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
30,000 Hours
LED Back Light Life (Typ.)
30,000 Hours
Weight（N.W/G.W）
5Kg(1pcs)/12.8Kg(2pcs in one package)
Package dimensions
445*200*390(mm)(2pcs in one package)
Power Consumption
Standby Power: 1.5W / Operating Power: 15W
1. VESA 75mm and 100mm
Mount Interface
2. Mount bracket, horizontal or vertical mount

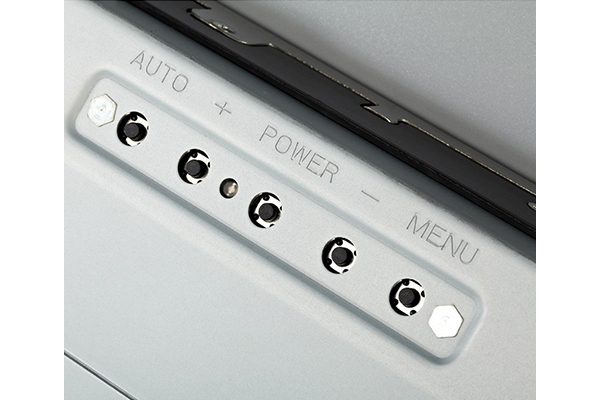

Buttons
AUTO,+,POWER,-,MENU
OSD Control
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
17" Surface acoustic wave touch screen
Touch input
USB/RS232
Response Time
8ms(USB) / 12ms(RS232)
Hardness
7H
Light Transmittance
90%
Support System
XP,WIN7,WIN8，WIN10
Active Area
338*270(mm)
Thickness
4.0±0.2(mm)
Touch Test
50,000,000 times
Input Voltage
DC 5V±5%
-
