SAW Touch Monitor KOT-0150US-SA6BW
KOT-0150US-SA6BW1.Integrated with Keetouch SA touch panel for the ultimate in image quality
2.Future generation panels phased-in without external changes
3.High quality panel with high brightness, contrast ratio and broad viewing angle
4.Worldwide agency approvals
-

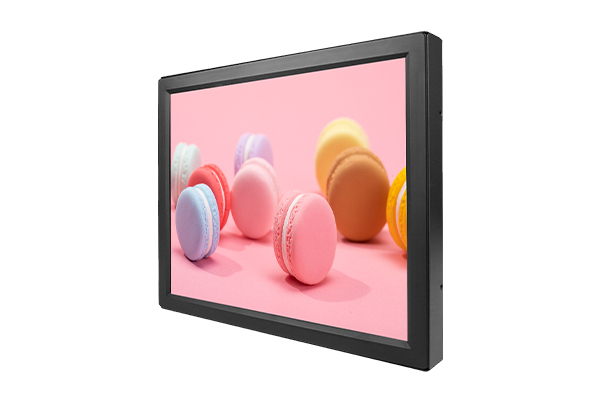

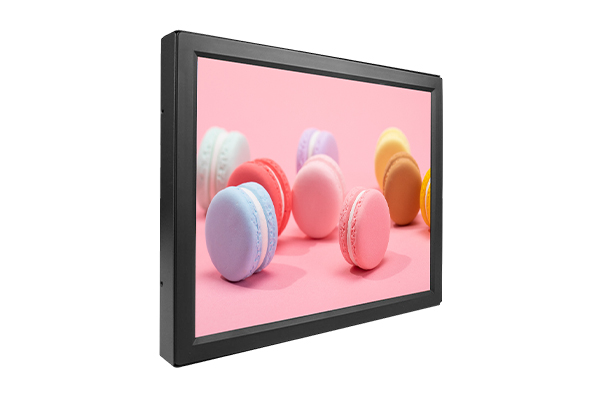

15 Inch SAW Touch Monitor Open Frame IP65 Surface Waterproof：
1、With SAW touch technology, high sensitivity and fast response
2、High resolution, high contrast ratio SAW touch Monitor with high-quality image
3、IP65 front frame waterproof SAW touch monitor

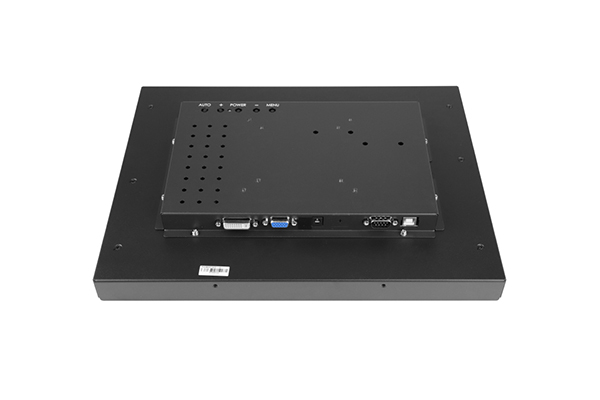

4、VGA & DVI interfaces,USB for touch
5、Multiple mounting options include VESA mount, horizontal and vertical brackets mount
6、Operation system: XP, WIN7, WIN8, WIN10, Linux, Android
7、Other sizes are for your option (7’’- 43’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the SAW Touch Monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the SAW Touch Monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the SAW Touch Monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed. -
Complete Machine
Model No.
KOT-0150US-SA6BW (P/N:KOT-150W-020)
Series
OT
Display Type
4:3 Ratio 15" TFT-LCD
Active Area
304*228(mm)
Monitor Dimensions (W*H*D)
347*271*51(mm)
Suggested Resolution
1024*768 @ 60Hz
Support Colors
16.2M
Brightness (Typ.)
Pure LCD Panel
420cd/m²
With Touch Monitor
378cd/m²
Response Time (Typ.)
16ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
80°/80°
Vertical(up/down)
80°/80°
Contrast Ratio (Typ.)
1000:01:00
Video Input
VGA/DVI
Frequency (H/V)
30～80KHz / 60～75Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥50,000 Hours
LED Back Light Life (Typ.)
≥50,000 Hours
Weight（N.W/G.W）
3Kg(1pcs)/9Kg(2pcs in one package)
Package dimensions
422*177*351(mm)(2pcs in one package)
Power Consumption
Standby Power: ≤1.5W / Operating Power: ≤20W

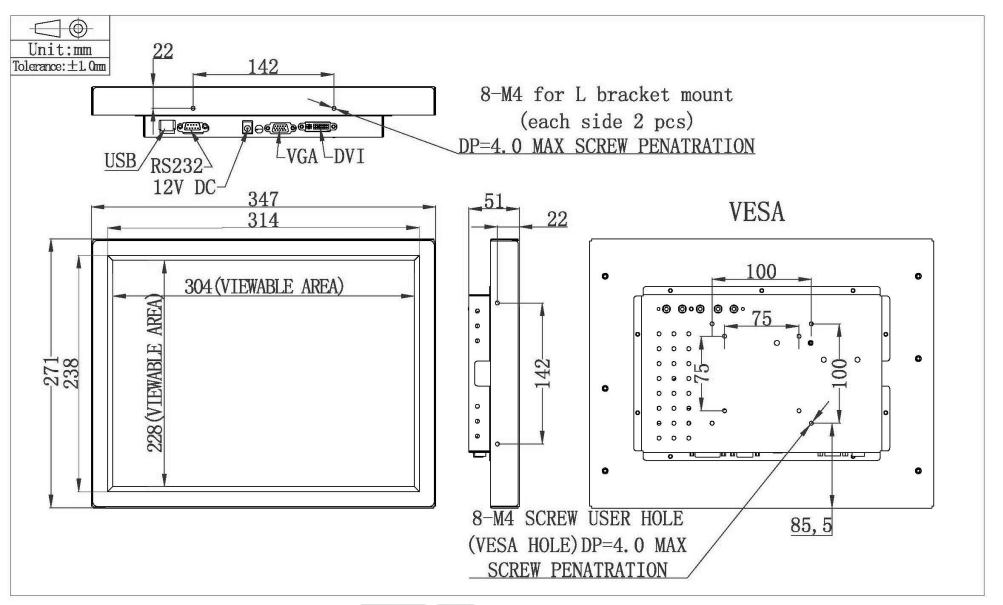

Mount Interface
1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount

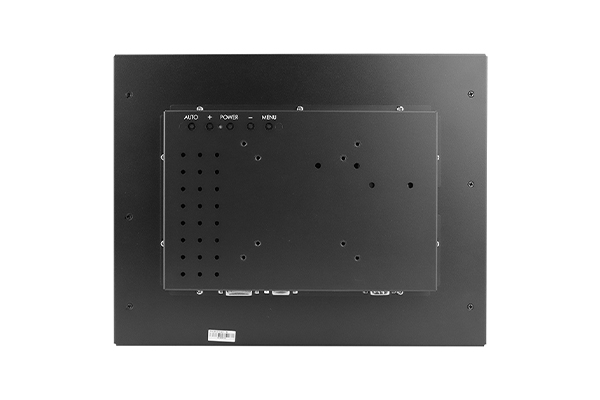

OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
15" Surface acoustic wave touch screen
Touch input
USB/RS232
Response Time
≤8ms
Hardness
7H
Light Transmittance
≥90%
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Active Area
304*228(mm)
Thickness
6±0.2(mm)
Touch Test
≥50,000,000 times
Input Voltage
DC 5V±5%
-
