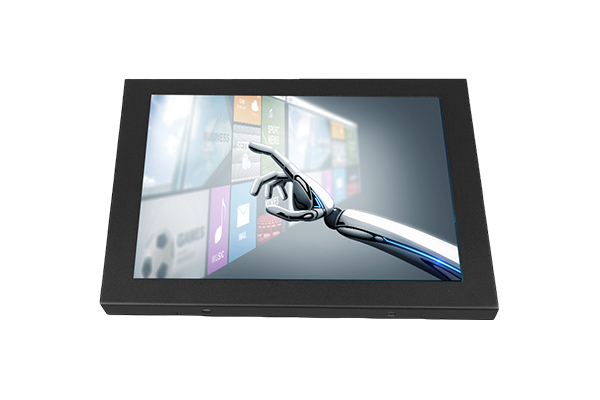

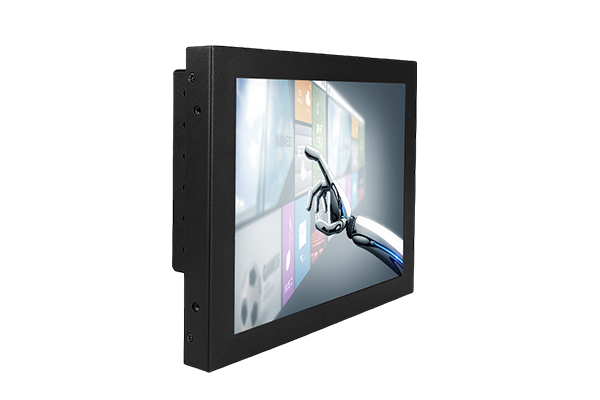

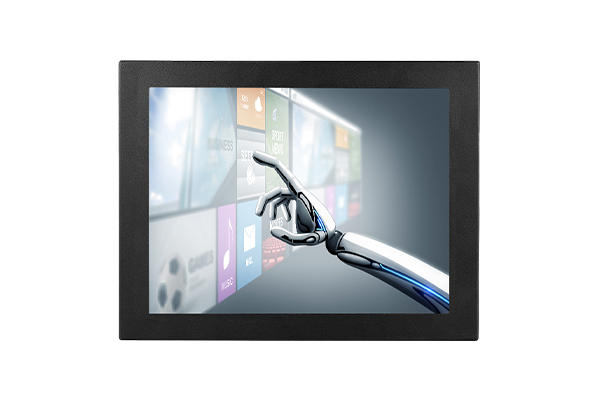

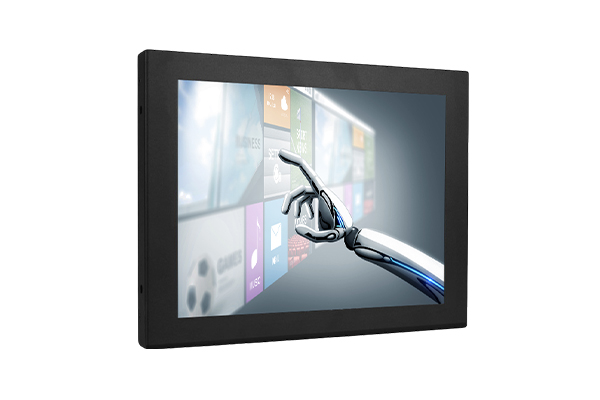

SAW Touch Monitor KOT-0104U-SA4BP
KOT-0104U-SA4BP1.Integrated with Keetouch SA touch panel for the ultimate in image quality
2.Future generation panels phased-in without external changes
3.High quality panel with high brightness, contrast ratio and broad viewing angle
4.Worldwide agency approvals
-
SAW Touch Monitor Main features:
1、SAW touch screen, accurate touch and great interactive experience
2、High quality industrial SAW touch monitor with high contrast and wide viewing angle
3、VGA interface,USB/ RS232 for touch
4、Operation system: XP,WIN7,WIN8,WIN10
5、Multiple mounting options include VESA mount, horizontal vertical brackets mount
6、Other sizes can be offered or customized (7’’- 55’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the infrared touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the infrared touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the infrared touch monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.5. What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6. What is your delivery time?3-5 work days for inventory orders, 7-15 business days for bulk production. -
Complete Machine
Model No.
KOT-0104U-SA4BP (P/N:KOT-104P-002)
Series
OT
Display Type
4:3 Ratio 10.4" TFT-LCD
Active Area
211.2*158.4(mm)

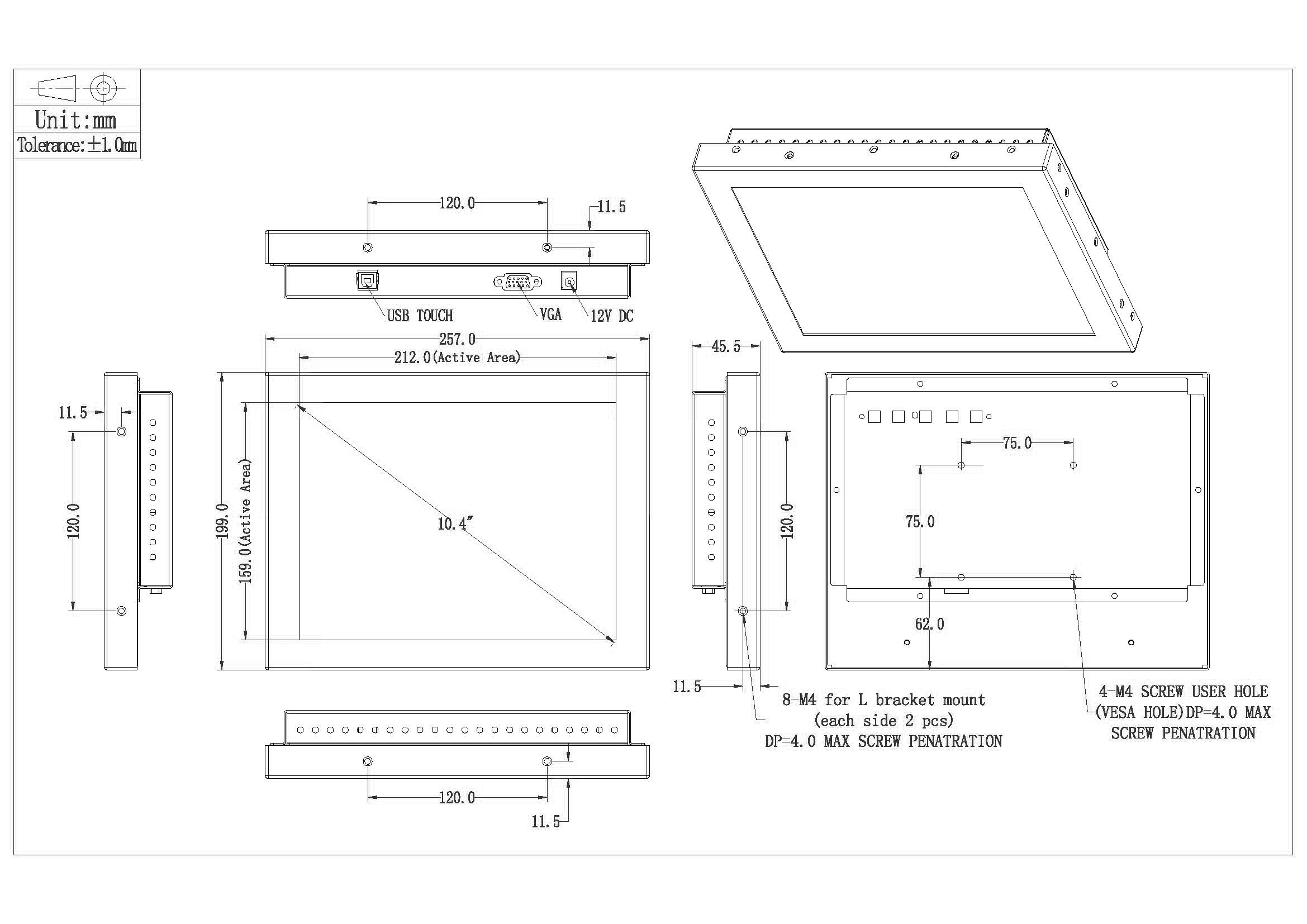

Monitor Dimensions (W*H*D)
257*199*45.5(mm)
Suggested Resolution
800*600 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
300cd/m²
With Touch Monitor
270cd/m²
Response Time (Typ.)
20ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
75°/75°
Vertical(up/down)
50°/60°
Contrast Ratio (Typ.)
500:1
Video Input
VGA
Frequency (H/V)
37.9～46.9KHz / 60～75Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
50,000 Hours
LED Back Light Life (Typ.)
50,000 Hours
Weight（N.W/G.W）
2.25Kg(1pcs) / 6.55Kg(2pcs in one package)
Package dimensions
330*220*280(mm)(2pcs in one package)
Power Consumption
Standby Power: ≤1W / Operating Power: ≤8W
Mount Interface
1.VESA 75mm
2.Mount bracket, horizontal or vertical mount

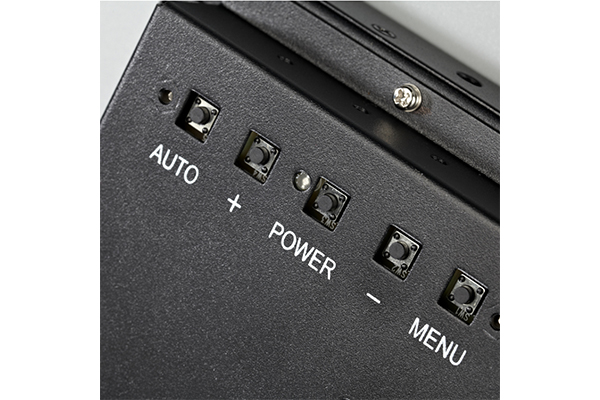

OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
10.4" Surface acoustic wave touch screen
Touch input
USB
Response Time
≤8ms
Hardness
7H
Light Transmittance
≥90%
Support System
XP,WIN7,WIN8,WIN10
Active Area
212*159(mm)
Thickness
4.0±0.1(mm)
Touch Test
50,000,000 times
Input Voltage
5V
-
