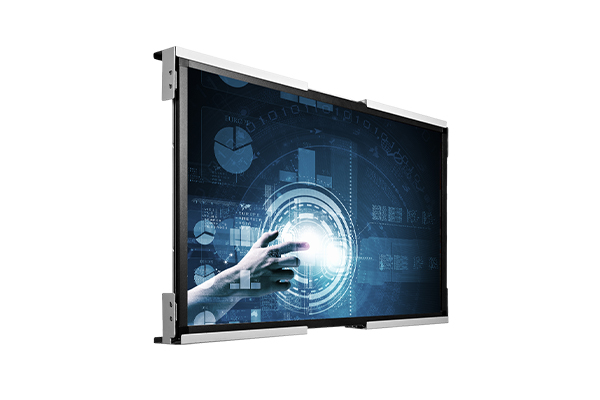

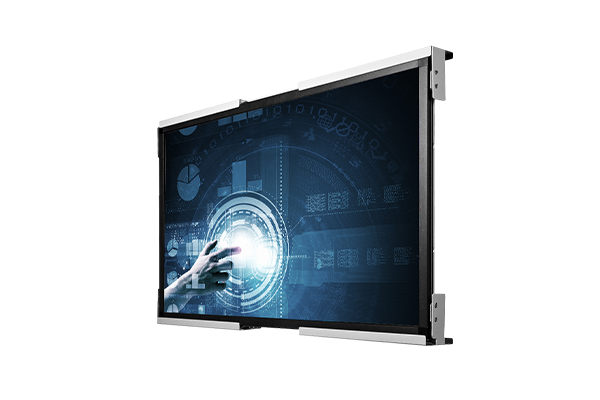

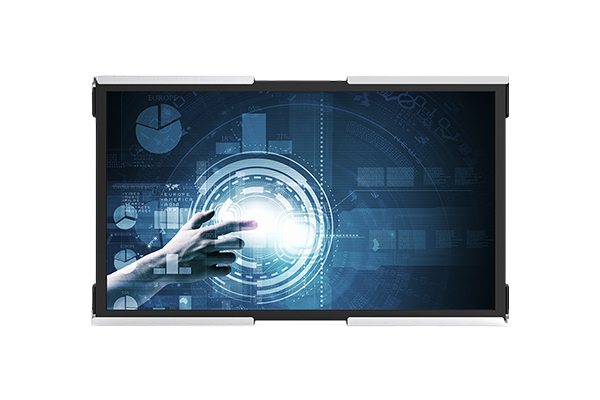

Infrared Touch Monitor KOT-0320U-IR4P
KOT-0320U-IR4P1.Integrated with Keetouch IR touch panel for the ultimate in image quality
2.Future generation panels phased-in without external changes
3.High quality panel with high brightness, contrast ratio and broad viewing angle
4.Worldwide agency approvals
-
Infrared Touch Monitor Main Features:1、With infrared touch technology, 1- 40 points optional2、IP65 surface waterproof, vandal-proof Infrared Touch Monitor3、Industrial grade, lasting touch, durable even in harsh environment4、Multiple mounting options include VESA mount, horizontal vertical brackets mount5、VGA + DVI + HDMI interfaces,USB for touch6、Support system: XP, WIN7, WIN8,WIN10, Linux, Android7、Other sizes are optional (7’’- 32’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the high brightness touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the high brightness touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the high brightness touch monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.5. What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6. What is your delivery time?3-5 work days for inventory orders, 7-15 business days for bulk production. -
Complete Machine
Model No.
KOT-0320U-IR4P (P/N:KOT-320P-010)
Series
OT
Display Type
16:9 Ratio 31.5" TFT-LCD
Active Area
698.4*392.85(mm)

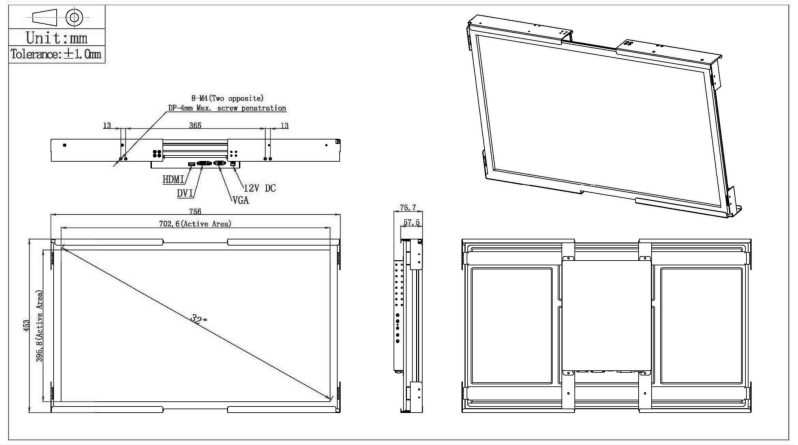

Monitor Dimensions (W*H*D)
756*453*75.7(mm)
Suggested Resolution
1920x1080 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
280cd/m²
With Touch Monitor
252cd/m²
Response Time (Typ.)
8ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
85°/85°
Vertical(up/down)
80°/80°
Contrast Ratio (Typ.)
1000:01:00

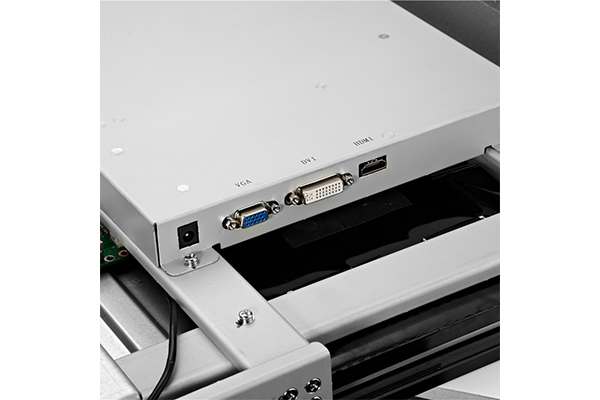

Video Input
VGA\DVI\HDMI
Frequency (H/V)
37.9～80KHz / 60～75Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Weight（N.W/G.W）
13Kg(1pcs)/15Kg(1pcs in one package)
Package dimensions
851*153*553(mm)(1pcs in one package)
Power Consumption
Standby Power: ≤2W / Operating Power: ≤40W

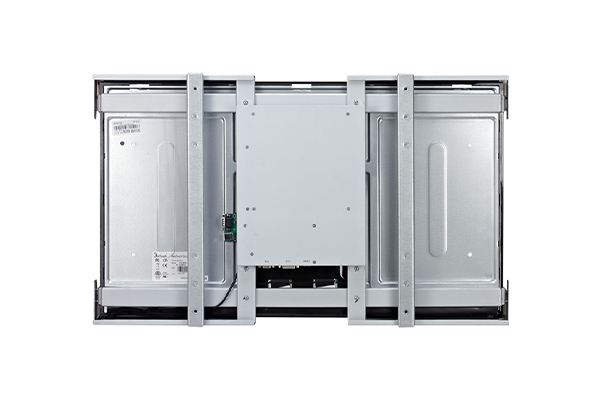

Mount Interface
1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
32" Infrared touch screen
Touch input
USB
Response Time
≤32ms
Hardness
7H
Light Transmittance
≥90%
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Active Area
702.6*395.8±0.5(mm)
Thickness
<5(mm)
Touch Test
≥50,000,000 times
Input Voltage
DC 5V±5%
-
