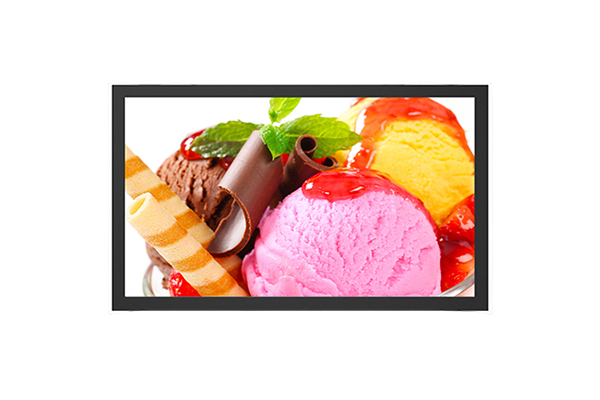

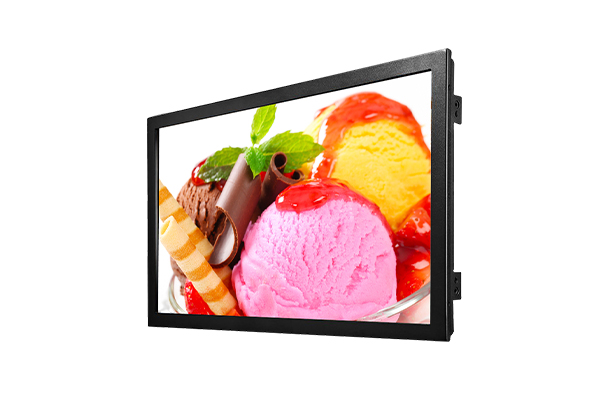

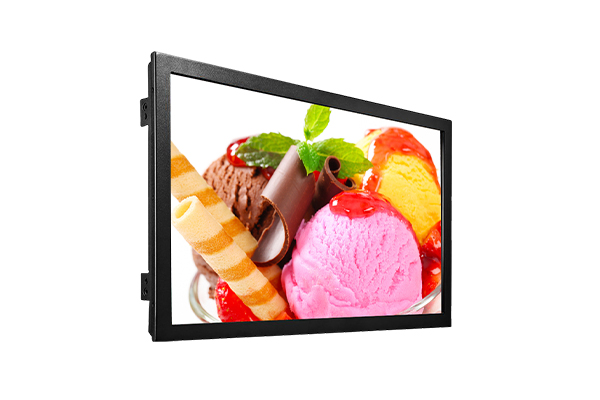

Infrared Touch Monitor KOT-0215U-IR3P
KOT-0215U-IR3P1.Integrated with Keetouch IR touch panel for the ultimate in image quality
2.Future generation panels phased-in without external changes
3.High quality panel with high brightness, contrast ratio and broad viewing angle
4.Worldwide agency approvals
-
Infrared Touch Monitor Main Features:
1、Infrared touch screen, 1- 40 points optional
2、High resolution, high contrast infrared touch monitor with full viewing angle
3、IP65 front side waterproof, vandal-proof Infrared Touch Monitor
4、Industrial grade, lasting touch, durable even in harsh environment
5、Multiple mounting options include VESA mount, horizontal vertical brackets mount

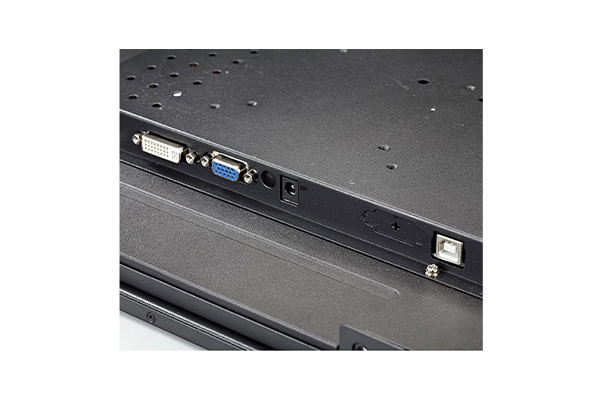

6、VGA/ DVI/ HDMI interfaces,USB for touch
7、Support system: XP, WIN7, WIN8,WIN10, Linux, Android
8、Other sizes are optional (7’’- 32’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the infrared touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the infrared touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the infrared touch monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.5. What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6. What is your delivery time?3-5 work days for inventory orders, 7-15 business days for bulk production. -
Complete Machine
Model No.
KOT-215C-008 (P/N:KOT-0215U-IR3P)
Series
OT
Display Type
16:9 Ratio 21.5" TFT-LCD
Active Area
476.64*268.11(mm)

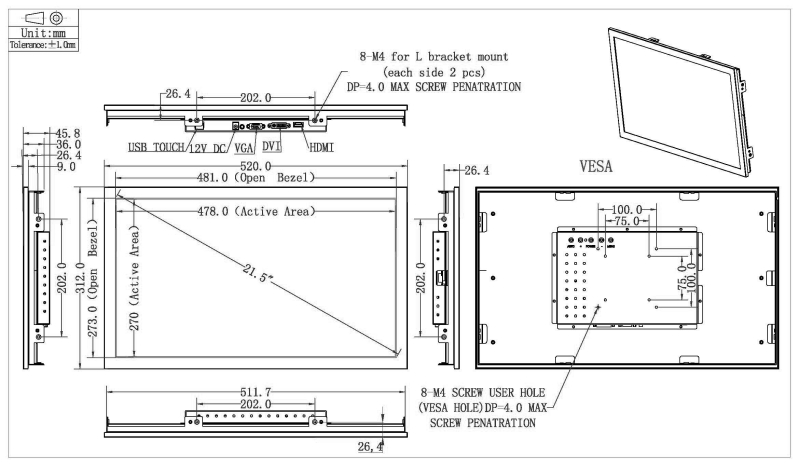

Monitor Dimensions (W*H*D)
520*312*45.8(mm)
Suggested Resolution
1920*1080 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
250cd/m²
With Touch Monitor
225cd/m²
Response Time (Typ.)
14ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
89°/89°
Vertical(up/down)
89°/89°
Contrast Ratio (Typ.)
1000:01:00

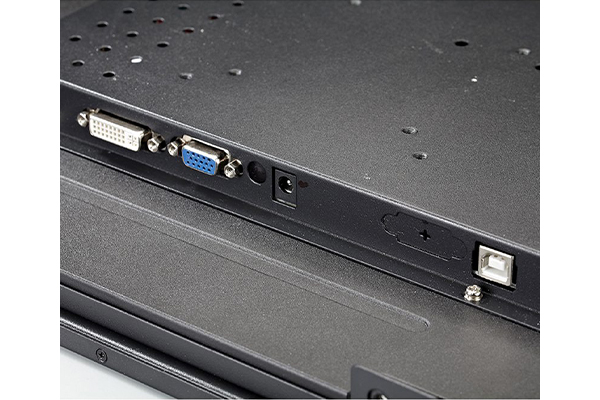

Video Input
VGA/DVI/HDMI
Frequency (H/V)
30～80KHz / 50～76Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
30,000 Hours
LED Back Light Life (Typ.)
30,000 Hours
Package dimensions
605*195*400(mm)(2pcs in one package)
Mount Interface
1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount

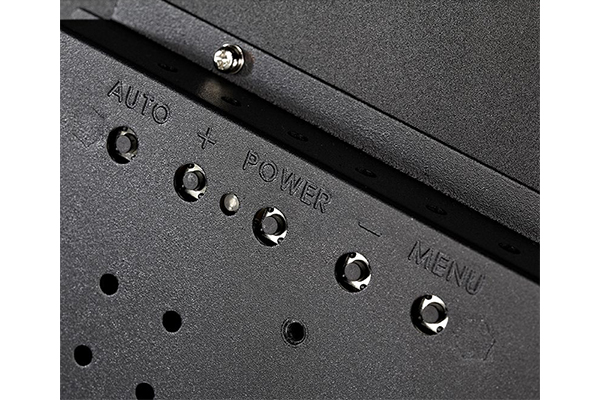

OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
Touch screen Type
Keetouch 21.5" IR touch screen
Touch System Interface
USB
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
-
