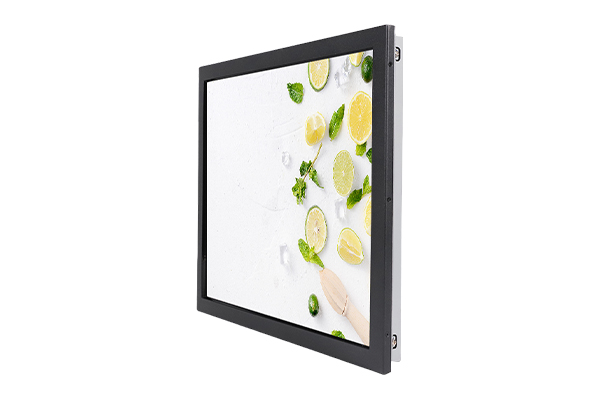

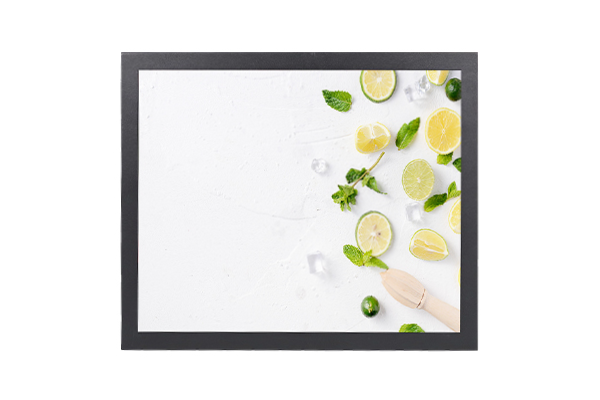

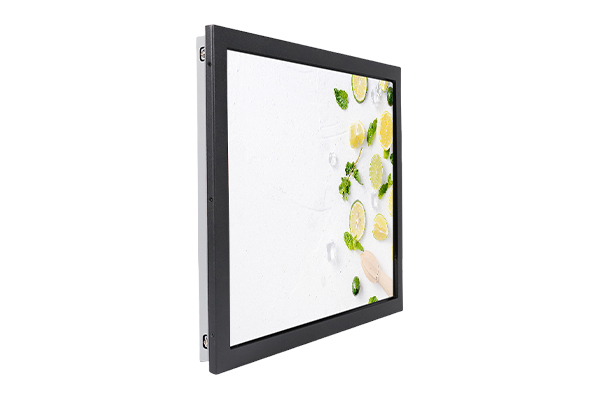

Infrared Touch Monitor KOT-0170U-IR3W
KOT-0170U-IR3W1. Using KeeTouch infrared touch technology, it brings stable and sensitive touch feeling and high-definition visual enjoyment
2. Single-point touch, waterproof, dustproof, riot-proof, scratch-proof, and anti-peeping
3. Service life of more than 50 million times
-
Infrared Touch Monitor Main Features
1、Infrared touch screen, accurate touch and great interactive experience
2、High resolution, high contrast infrared touch monitor with broad viewing angle
3、Dust-proof, anti-vandal and IP65 front frame waterproof,Infrared Touch Monitor
4、Industrial grade infrared touch monitor with high definition visual enjoyment
5、Multiple mounting options include VESA mount, horizontal or vertical brackets mount

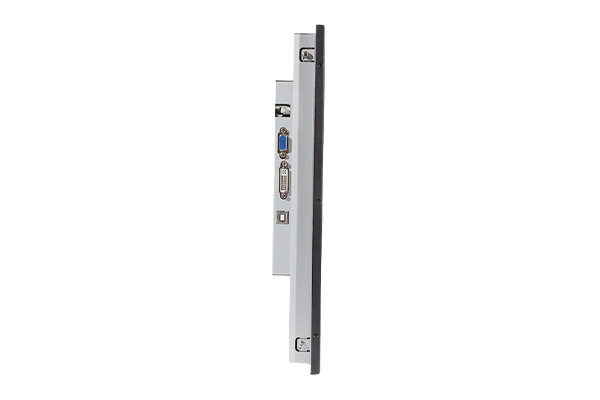

6、VGA/DVI interface, USB for touch input
7、Support system: XP, WIN7, WIN8,WIN10, Linux, Android
8、Other sizes are optional (7’’- 32’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the high brightness touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the high brightness touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the high brightness touch monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.5. What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6. What is your delivery time?3-5 work days for inventory orders, 7-15 business days for bulk production. -
Machine and display
Model
KOT-0170U-IR3W
Type
Open
LCD Type
5:4 aspect ratio 17" TFT-LCD, LED backlight

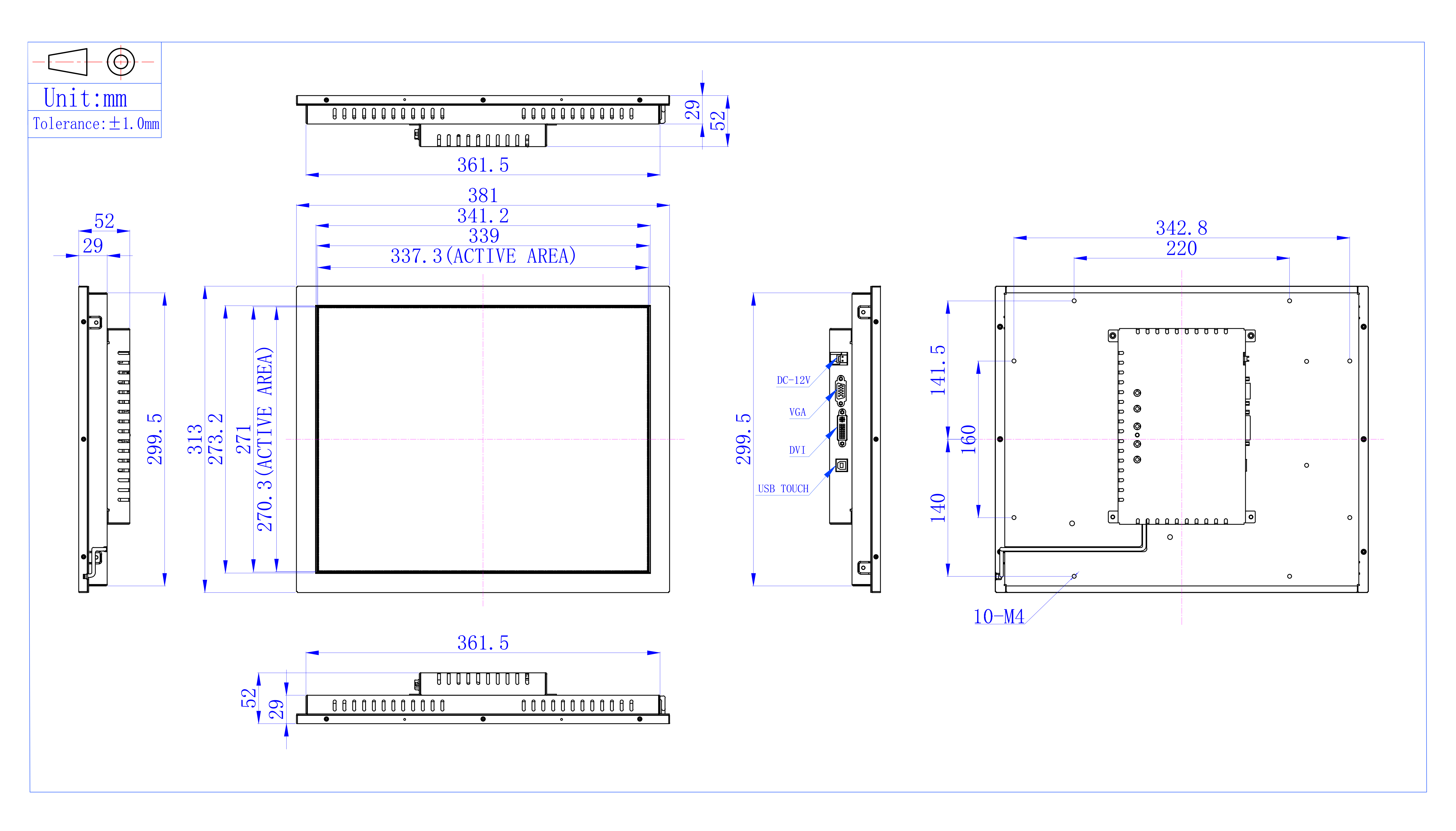

Effective display area
337.3*270.3(mm)
Display size (width*height*thickness)
381*313*52(mm)
Optimal resolution
1280*1024 @ 60Hz
Support Color
16.7M
Brightness (Typ.)
LCD Panel
250cd/m2
LCD panel with touch screen and privacy film
135cd/m2
Response time (Typ.)
5ms
Viewing Angle
Horizontal (left/right): 85°/85°
(Typ.at CR>10)
Vertical (up/down): 80°/80°
Contrast Ratio (Typical)
1000:01:00

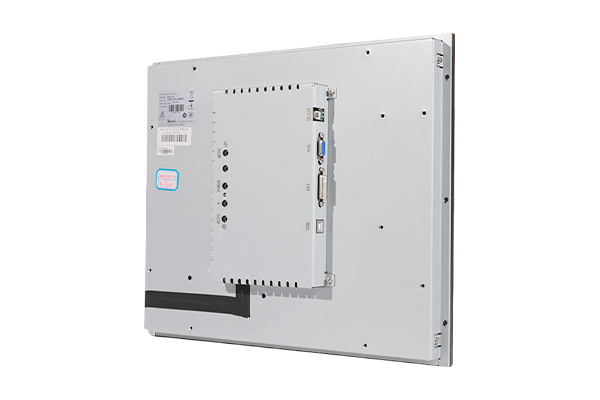

Video input interface
VGA/DVI
Frequency (H/V)
30～80KHz / 60～75Hz
Power supply
Power type: External power adapter
Monitor input voltage: DC 12V±5%
Adapter input voltage: 100-240 VAC, 50-60 Hz
Environment
Operating temperature
0～50°C
Operating humidity
20%～80%
Storage temperature
-20～60°C
Storage humidity
10%～90%
Mean time between failures
≥30,000 hours
LED backlight life (Typ.)
≥30,000 hours
Power
Standby power: ≤1.5W Working power: ≤20W

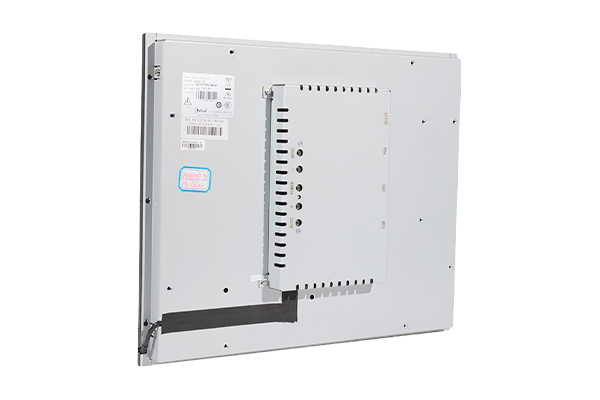

Installation
Use mounting bracket, horizontal or vertical mounting
OSD Control
Button
Auto, Up, Power, Down, Menu
Function
Brightness, Contrast, Auto Correction, Phase, Clock, Line and Field Position, Language, Function Settings, Reset
Institutional Accreditation
CCC, ETL, FCC, CE, CB
Warranty
1 year
touchscreen
Touch screen type
17" infrared screen
Touch screen interface
USB
Touch response time
20ms
Touch screen hardness
7H
Light transmittance
≥90%
Support system
XP,WIN7,WIN8,WIN10,Linux,Android
Touch effective area
339*271(mm)
Thickness
9±1(mm)
Hit Test
≥50,000,000 times
Input voltage
DC 5V±5%
-
