Infrared Touch Monitor KOT-0150U-IR3W
KOT-0150U-IR3W1.Integrated with Keetouch IR touch panel for the ultimate in image quality
2.Future generation panels phased-in without external changes
3.High quality panel with high brightness, contrast ratio and broad viewing angle
4.Worldwide agency approvals
-
Infrared Touch Monitor Main Features:
1、With Infrared touch technology, 1- 40 points optional
2、IP65 front side waterproof, dust proof and anti-vandal
3、Industrial grade infrared touch monitor with high clarity and wide viewing angle
4、≥50,000 hours MTBF, lasting touch, durable in harsh environment
5、Multiple mounting options include VESA mount, horizontal vertical brackets mount
6、DVI & VGA interfaces,USB for touch
7、Support system: XP,WIN7,WIN8,WIN10
8、Other sizes are available (7’’- 32’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the infrared touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the infrared touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the infrared touch monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are welcomed.5. What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6. What is your delivery time for the infrared touch monitor?3-5 work days for inventory orders, 7-15 business days for bulk production.
-
Complete Machine
Model No.
KOT-0150U-IR3W (P/N:KOT-150W-018)
Series
OT
Display Type
4:3 Ratio 15" TFT-LCD
Active Area
304.128*228.096(mm)

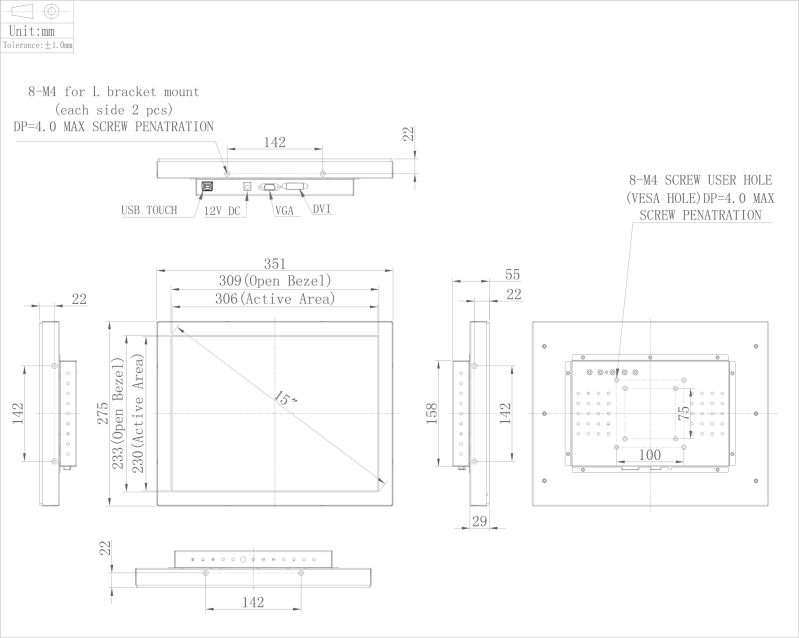

Monitor Dimensions (W*H*D)
351*275*55(mm)
Suggested Resolution
1024*768 @ 60Hz
Support Colors
16.2M
Brightness (Typ.)
Pure LCD Panel
420cd/m2
With Touch Monitor
378cd/m2
Response Time (Typ.)
16ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
80°/80°
Vertical(up/down)
80°/80°
Contrast Ratio (Typ.)
1000:01:00
Video Input
VGA/DVI
Frequency (H/V)
37.8～68.4KHz / 50～76Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥50,000 Hours
LED Back Light Life (Typ.)
≥50,000 Hours
Weight（N.W/G.W）
3Kg(1pcs)/6.7Kg(2pcs in one package)
Package dimensions
429*183*356(mm)(2pcs in one package)
Power Consumption
Standby Power: ≤1.5W / Operating Power: ≤20W
Mount Interface
1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
15" Infrared touch screen
Touch input
USB
Response Time
≤10ms
Hardness
7H
Light Transmittance
≥90%
Support System
XP,WIN7,WIN8
Active Area
306*230(mm)
Thickness
9±1(mm)
Touch Test
50,000,000 times
Input Voltage
5V
-
