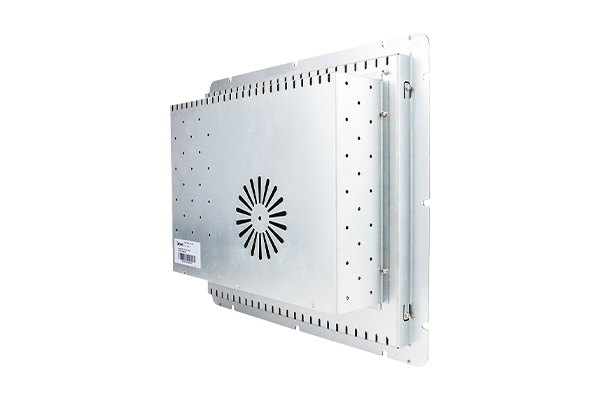

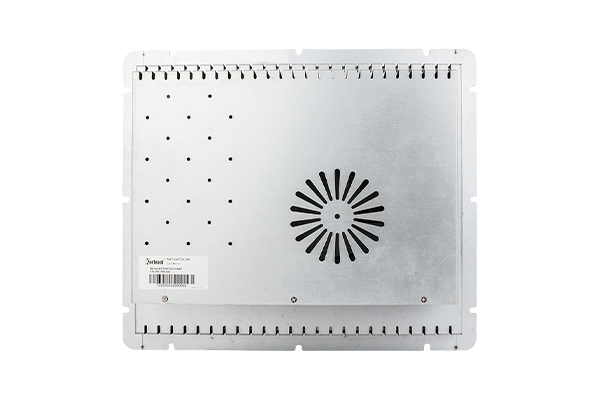

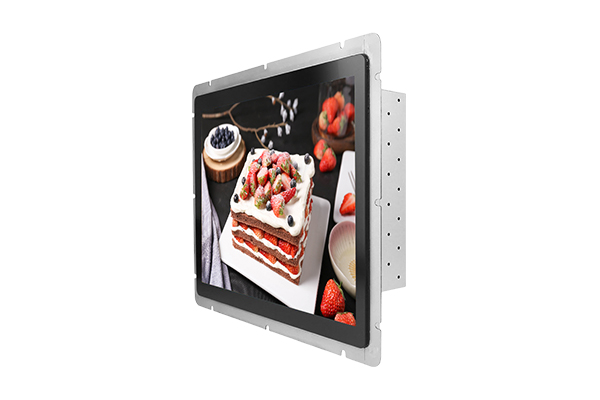

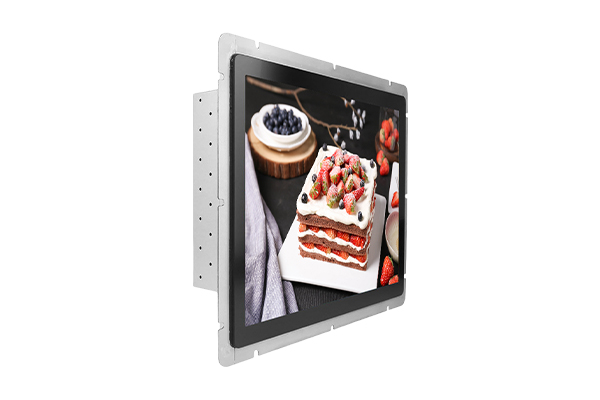

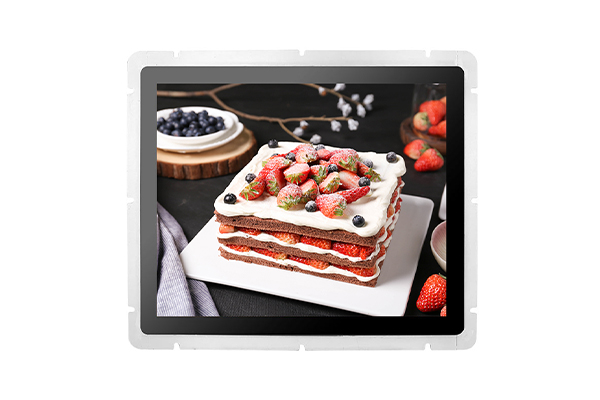

Industrial Touch Computer KTP-170M-005
KTP-170M-0051.Integrated with KeeTouch PCAP touch panel for the ultimate in image quality
2.High quality panel with high brightness, contrast ratio and broad viewing angle
3.Worldwide agency approvals
-
Main features:
1、PCAP multi touch screen, high sensitive and fast response
2、High quality panel with high brightness, contrast ratio and broad viewing angle
3、Pure flat designed PCAP touch computer with IP65water proof function
4、Various configurations for your option, J1900, I3, I5 and I7
5、With a range of I/O ports, support a variety of third-party peripherals
6、Other sizes (7’’-43’’) can be offered or customized
FAQ:
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.
2. What’s your MOQ for the high brightness touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the high brightness touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the high brightness touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.
-
KTP-170M-005
Display
Screen
17 inch
Resolution
1280×1024
According to the proportion
5:04
Brightness
1000nit
Contrast
1000:1(Typ.)/600:1(Min.)
Response Time
5ms
View angle
85/85/80/80(CR=10)/88/88/85/85(CR=5)
Active Display Area
337.920×270.336mm
PC Configuration
CPU
Intel® 8th Gen Supports LGA 1151 CPU Up to 95W Max
Intel® 9th Gen Supports 4 core & 6 core CPU (TDP: 95W), 8 core CPU, only support
CPU TDP up to 35W Max.
Intel® C246 Chipset
System Memory
Two 260-pin DDR4 2400/2666MHz SO-DIMM socket, supports up to 32GB Max
BIOS
AMI uEFI BIOS, 256Mbit SPI Flash ROM
The operating system
Windows7/Windows10/Andriod(optional)
Touch Screen
Touch Method
Capacitive Touch
Touch Surface Hardness
6H
Touch Screen Transparency
85%

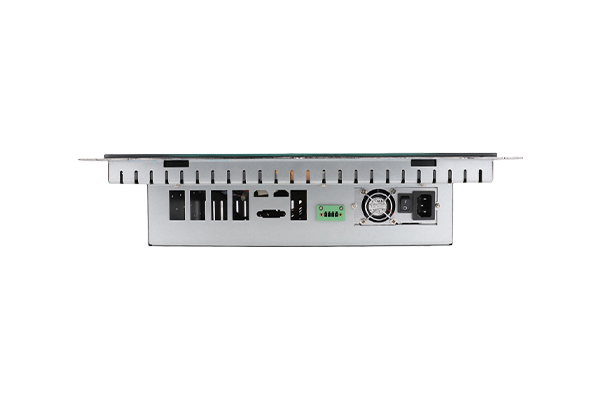

I/O interface
1-VGA, 10-USB,4-LAN,2-HDMI, 1-DC,1-SWITCH, 1-PHONEIX TERMINAL
Other parameters
Cooling System
Fan
Enclosure Material
Metal
Waterproof Rating
IP65 ( Only for front panel )
Power Consumption
≤30W
Working Temperature
0 ~ 50 °C
Storage Temperature
-20~60°C
Stroage Humidity
20%~80%
Stroage Humidity
10%~90%

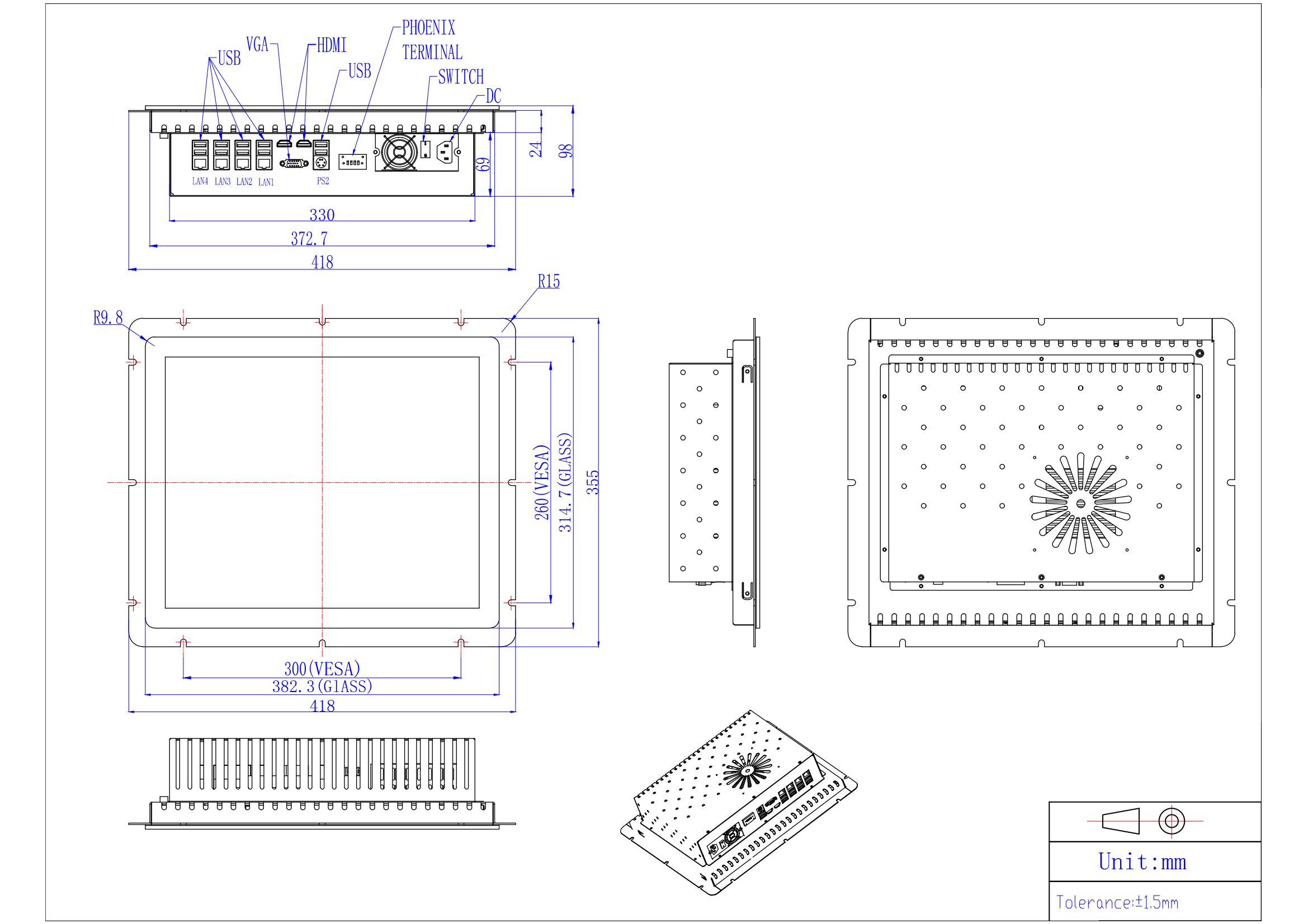

Size
418*355*98 (mm)
Warranty
1 year
Certification
CCC, ETL, FCC, CE, CB, RoHS
-
