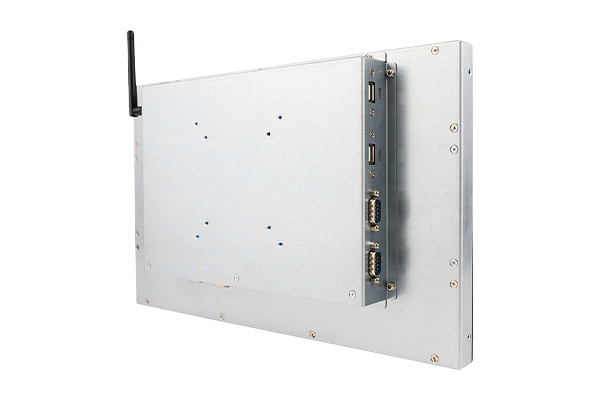

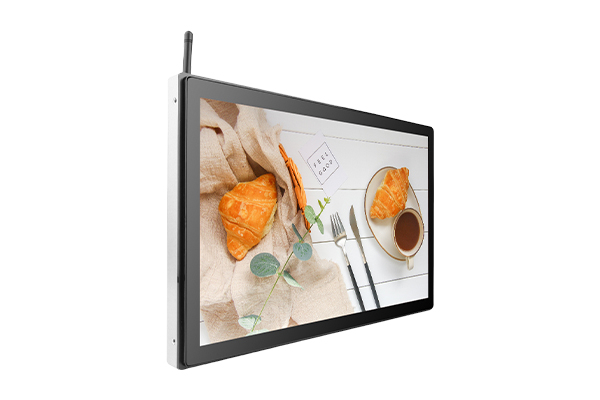

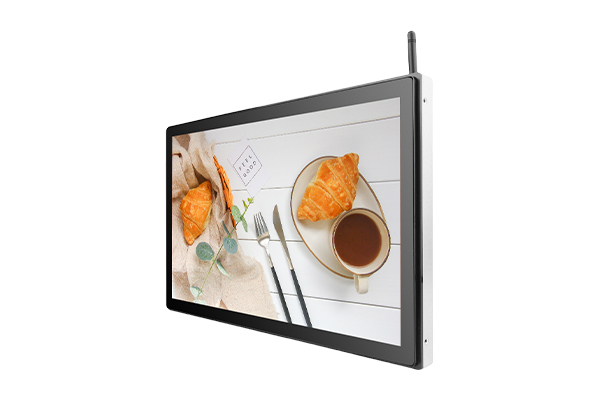

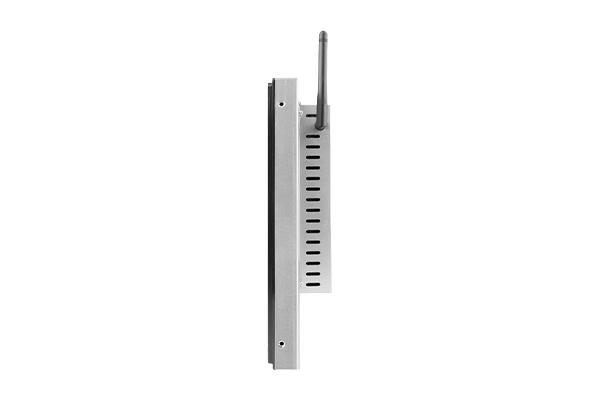

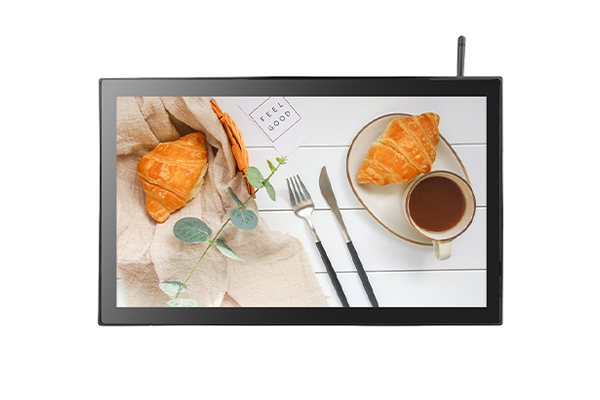

Industrial Touch Computer KOT-0156U-CA4P
KOT-0156U-CA4P1.Integrated with KeeTouch PCAP touch panel for the ultimate in image quality
2.High quality panel with high brightness, contrast ratio and broad viewing angle
3.Worldwide agency approvals
-
Industrial Touchscreen Computer Main features:
1、PCAP multi-touch technology, high-sensitivity and fast response
2、High resolution industrial grade touchscreen computer with broad viewing angle
3、Pure flat designed industrial touchscreen computer, IP65 front side waterproof
4、Intel Celeron J1900 CPU, other configurations can be customized
5、With various I/O interfaces, support a variety of third-party peripherals
6、Support system: Windows7, Windows8, Windows10
7、Other sizes are available (7’’-43’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the high brightness touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the high brightness touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the high brightness touch monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.5. What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6. What is your delivery time?3-5 work days for inventory orders, 7-15 business days for bulk production. -
KOT-0156U-CA4P(P/N:KTP-156M-003)
Display
Screen
15.6 inch
Resolution
1920 x 3(RGB) x 1080
According to the proportion
16:09
Brightness
340nit(Typ.)/265.6nit(Min.)
Contrast
500:1(Typ.)/400:1(Min.)
Response Time
8 (Typ.)/ 16 (Max.)
View angle
70/70/60/60(Typ.)/60/60/45/50(Min.)(CR=10)
Active Display Area
344.16(H) x 193.59(V)mm
PC Configuration
CPU
Intel® Celeron® J1900, clock speed 2G, Quad-core, TDP 10W
Memory
Support DDR3L-1333 MHz, 1 * SO-DIMM Slot, Up to 8GB
Storage
1 * SATA2.0 + 1 * mSATA [2]
BIOS
AMI UEFI BIOS
Touch Screen
Touch Method
Capacitive Touch
Touch Surface Hardness
6H
Touch Screen Transparency
85%

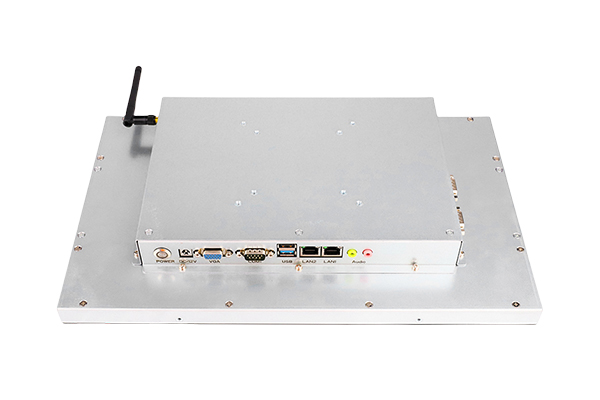

I/O interface
1-VGA, 4-USB,2-RJ45,3-DB9, 1-DC 12V,1-Audio/Mic, 1-power
Other parameters
Cooling System
Fanless
Enclosure Material
Metal
Weight（N.W/G.W）
3.9Kg(1pcs) / 9.3Kg(2pcs in one package)
Package dimensions
545*150*400(mm)(2pcs in one package)
Waterproof Rating
IP65 ( Only for front panel )
Power Consumption
≤30W
Working Temperature
0 ~ 50 °C
Storage Temperature
-20~60°C
Stroage Humidity
20%~80%
Stroage Humidity
10%~90%

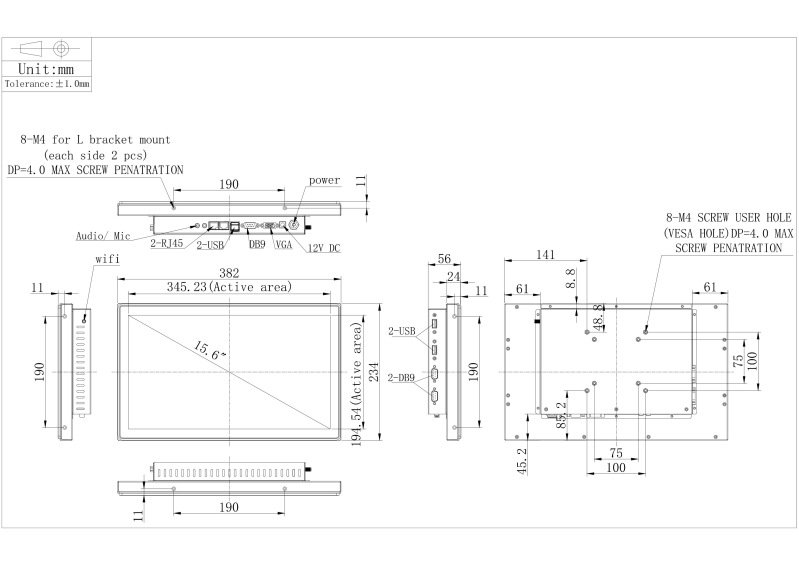

Product Size
382*234*56 (mm)
Warranty
1 year
Certification
CCC, ETL, FCC, CE, CB, RoHS
-
