Industrial Touch Computer KTP-101M-001
KTP-101M-0011.Integrated with KeeTouch PCAP touch panel for the ultimate in image quality
2.High quality panel with high brightness, contrast ratio and broad viewing angle
3.Worldwide agency approvals
-
Industrial Touchscreen Computer Main features:
1、PCAP multi-touch industrial touchscreen computer, high sensitive and fast response
2、High resolution, superior clarity image and full viewing angle
3、Pure flat industrial touchscreen computer with IP65 front side waterproof function
4、Intel Celeron N4000 Processor, other configurations can be customized
5、With various I/O ports, support many kinds of third-party peripherals
6、Support system: Windows7, Windows10, Android and Linux
7、Other sizes are for your option (7’’-43’’)
FAQ:
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.
2.What’s your MOQ?
Our minimum order quantity is 1pc only.
3.What is your warranty period?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4.Can you produce the product according to the customer's requirements?
Sure, with 40+ Professional R&D engineers, OEM and ODM are offered.
5.What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
6.What is your delivery time?
7. 3-5 work days for inventory orders, 7-15 business days for bulk production.
-
KTP-101M-001
Display
Screen
10.1 inch
Resolution
1280×800
According to the proportion
16:10
Brightness
330nit(Typ.)
Contrast
600:1(Min.)
Response Time
25ms
View angle
80/80/80/80(CR>10)
Active Display Area
216.96*135.60mm
PC Configuration
CPU
Intel® Celeron® N4000 Processor
System Memory
1*SO-DIMM DDR4 2400MHz Max8GB
BIOS
AMI BIOS
The operating system
Windows7/Windows10/Andriod/Linux(optional)
Touch Screen
Touch Method
Capacitive Touch
Touch Surface Hardness
6H
Touch Screen Transparency
85%
I/O interface

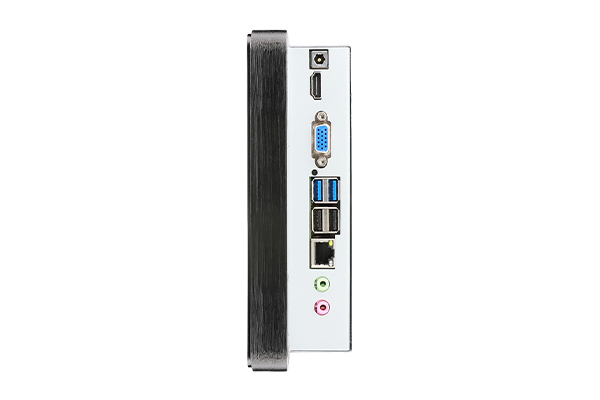

1-DCIN, 1-HDMI, 1-VGA,2-USB3.0, 2-USB2.0, 1-LAN, HP_OUT, MIC_IN
Other parameters
Cooling System
Metal
Waterproof Rating
IP65 ( Only for front panel )
Power Consumption
≤20W
Working Temperature
0 ~ 50 °C
Storage Temperature
-20~60°C
Working Humidity
20%~80%
Stroage Humidity
10%~90%
Warranty
1 year
Certification
CCC, ETL, FCC, CE, CB, RoHS
-
