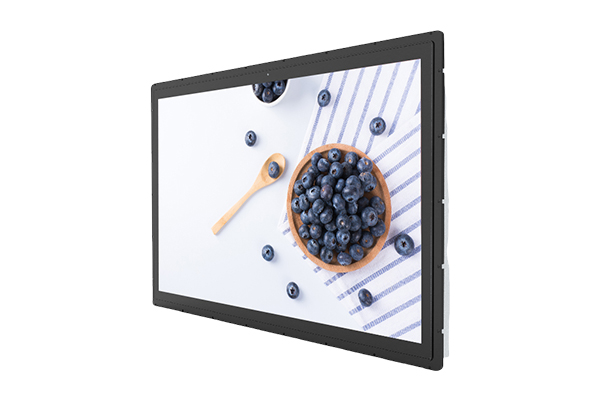

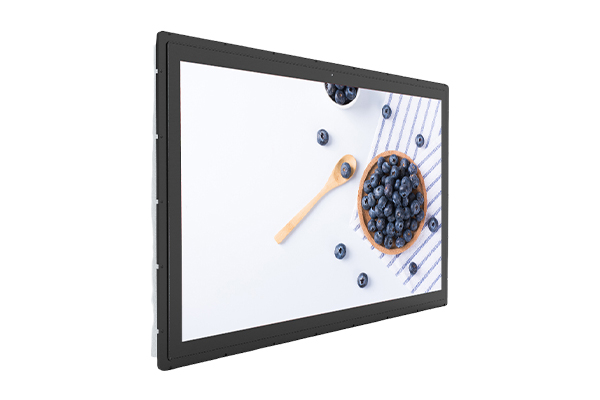

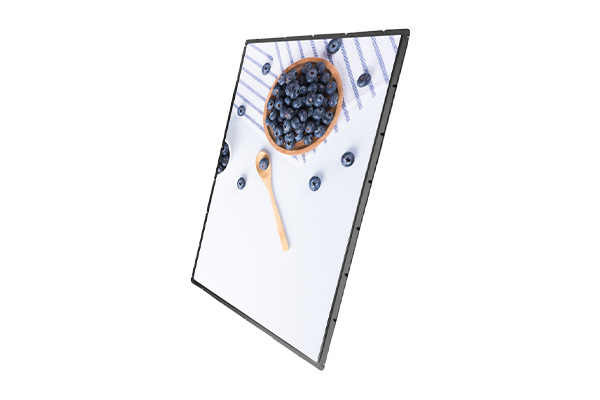

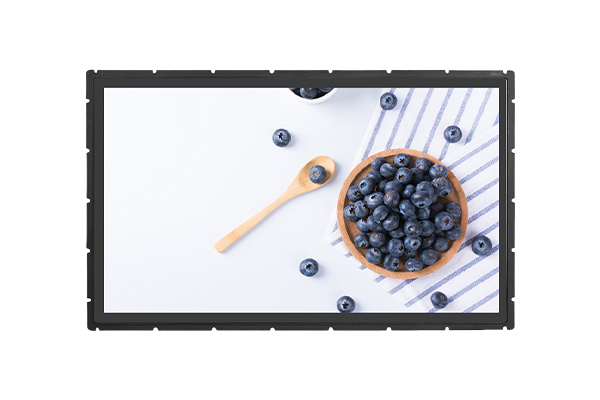

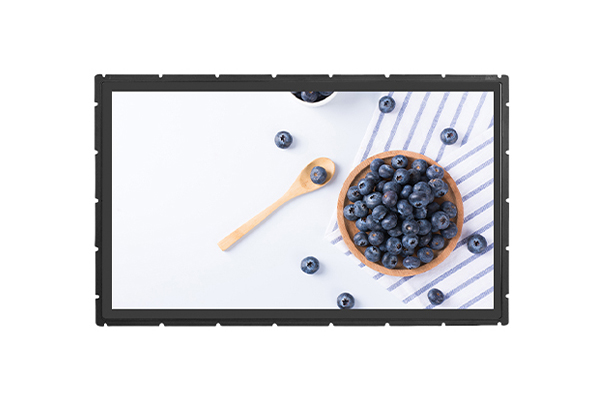

Industrial Touch Computer KOT-0315U-CA4P
KOT-0315U-CA4P1.Integrated with Keetouch CA touch panel for the ultimate in image quality
2.Future generation panels phased-in without external changes
3.High quality panel with high brightness, contrast ratio and broad viewing angle
4.Worldwide agency approvals
-
Industrial Touchscreen Computer Main features:
1、PCAP multi-touch panel, high-sensitivity and high-quality touch experience
2、1200 nits high brightness, visible under direct sunlight
3、High-quality industrial grade computer with high resolution, full viewing angle
4、Configurations can be customized per customers’ requirements
5、A series of I/O interfaces support various third-party peripherals
6、Support system: Windows7, Windows 8, Windows10, Android, Linux
7、Other sizes are optional (7’’- 43’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the high brightness touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the high brightness touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the High Brightness Touch Monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.5. What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6. What is your delivery time?3-5 work days for inventory orders, 7-15 business days for bulk production.
-
Complete Machine
Model No.
KOT-0315U-CA4P (P/N:KTP-320M-002-04)
Series
All in one
Display Type
16:9 Ratio 31.5" TFT-LCD
Active Area
698.4*392.85 (mm)
Monitor Dimensions (W*H*D)
780*466*83 (mm)
Suggested Resolution
1920x1080 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
1200cd/m²
With Touch Monitor
1000cd/m²
Response Time (Typ.)
8ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
89°/89°
Vertical(up/down)
89°/89°
Contrast Ratio (Typ.)
3000:01:00
Frequency (H/V)
37.9～80KHz / 60～75Hz
Power Supply
Type: External brick
Display voltage: DC 24V/ 5A
Computer voltage: DC 12V/ 5A
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
-10～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥50,000 Hours
LED Back Light Life (Typ.)
≥50,000 Hours
Mount Interface
Mount bracket, horizontal or vertical mount
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
31.5" Capacitive touch screens
Touch input
USB
Response Time
≤14ms
Hardness
6H
Light Transmittance
≥85%
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Active Area
705.00*397.85(mm)
Thickness
4.3±0.2(mm)
Touch Test
≥50,000,000 times
Input Voltage
DC 5V±5%
-
