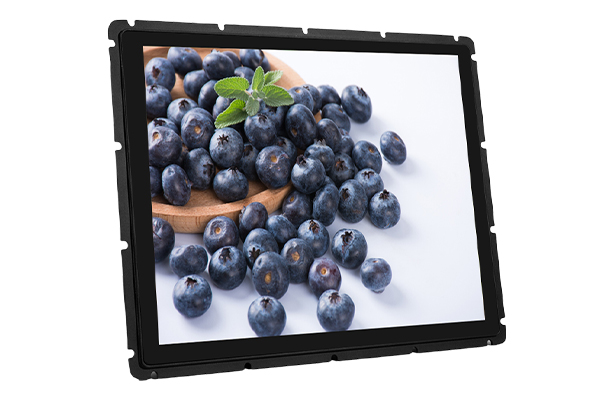

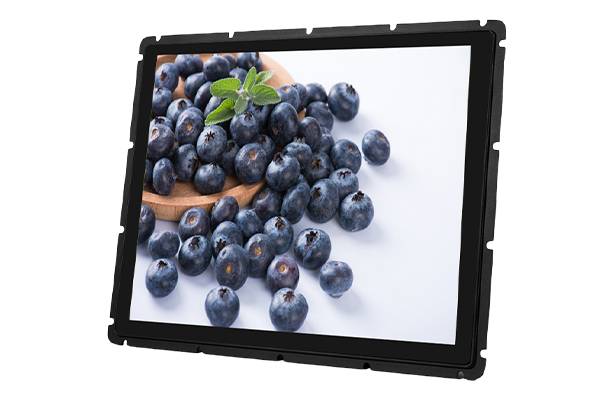

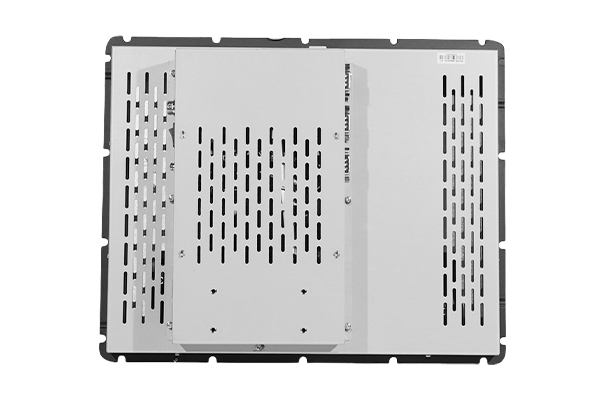

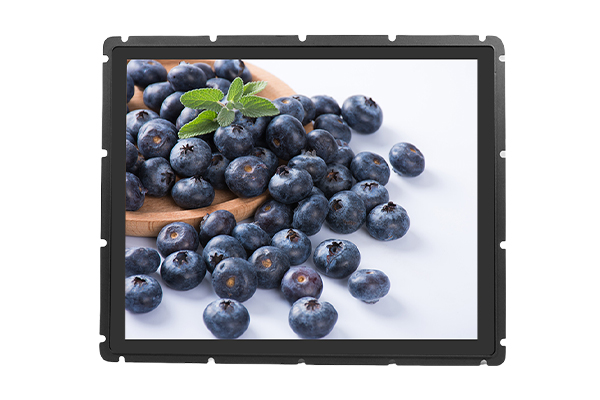

Industrial Touch Computer KOT-0150U-CA4P
KOT-0150U-CA4P1.Integrated with Keetouch PCAP touch panel for the ultimate in image quality
2.Future generation panels phased-in without external changes
3.High quality panel with high brightness, contrast ratio and broad viewing angle
4.Worldwide agency approvals
-
Industrial Touchscreen Computer Main features:
1、With PCAP touch technology, up to 10 points touch
2、High-quality anti-vandal industrial touchscreen computer with high resolution
3、Freescale i.HX6Q (4 Core) CPU, other configurations can be customized
4、A series of I/O interfaces support various third-party peripherals
5、Multiple mounting options include VESA mount, horizontal vertical brackets mount
6、Support system: Windows and Android optional
7、Other sizes can be offered (7’’- 43’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the high brightness touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the high brightness touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the High Brightness Touch Monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.5. What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6. What is your delivery time?3-5 work days for inventory orders, 7-15 business days for bulk production. -
Complete Machine
Model No.
KOT-0150U-CA4P (P/N:KTP-150M-002-02)
Series
All-in-One Touch Computer
Display Type
5:4 Ratio 15" TFT-LCD
Active Area
304.1*228.1 (mm)
Monitor Dimensions (W*H*D)

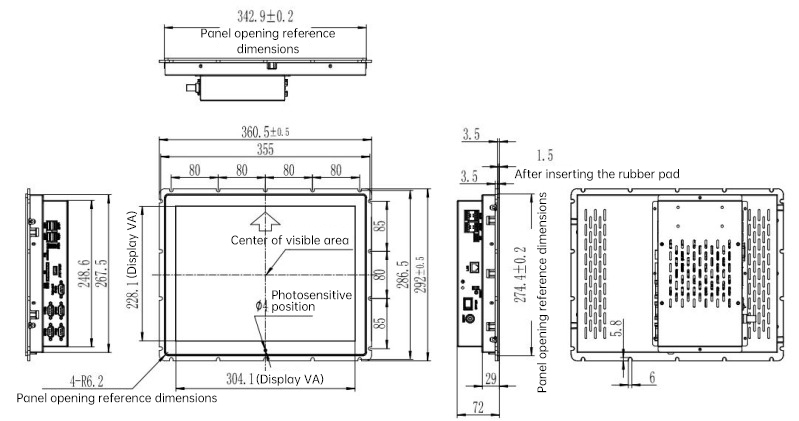

360.5*292*72 (mm)
Suggested Resolution
1024*768 @ 60Hz
Support Colors
16.2M
Brightness (Typ.)
Pure LCD Panel
300cd/m²
With Touch Monitor
255cd/m²
Response Time (Typ.)
25ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
80°/80°
Vertical(up/down)
70°/70°
Contrast Ratio (Typ.)
700:01:00
Frequency (H/V)
37.9～80KHz / 60～75Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
Computer parameters
CPU
Freescale i.HX6Q（4 Core）
RAM
Onboard memory: Support DDR3, 2GB(default);
Onboard storage: 8GB(default) EMMC FlashInterface

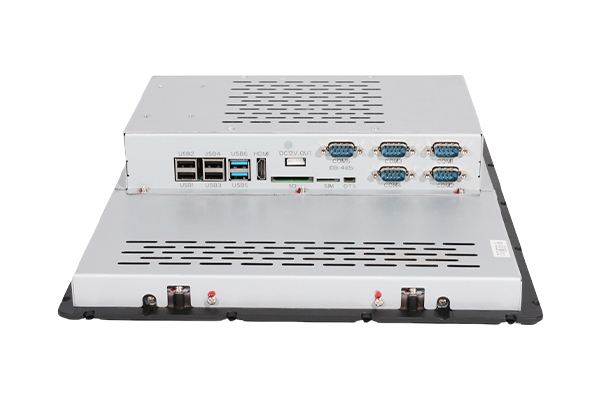

4*USB, 1*HDMI, 5* serial port, LAN*1
LVDS
LVDS*1 (dual channel),support 24Bit
HDMI
Support HDMI2.0, Max Resolution: 1080p@120Hz
LAN
RJ45（10/100/1000Mbps）
MTBF
≥30,000 Hours
LED Back Light Life (Typ.)
≥30,000 Hours
Mount Interface
1.VESA 75mm and 100mm
2.Mount bracket, horizontal or vertical mount
CCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
15" Capacitive touch screens
Touch input
USB
Response Time
≤8ms
Hardness
6H
Light Transmittance
≥85%
Support System
Android/windows（optional）
Active Area
305.1*229.1 (mm)
Thickness
4.3±0.2 (mm)
Touch Test
≥50,000,000 times
Input Voltage
DC 5V±5%
-
