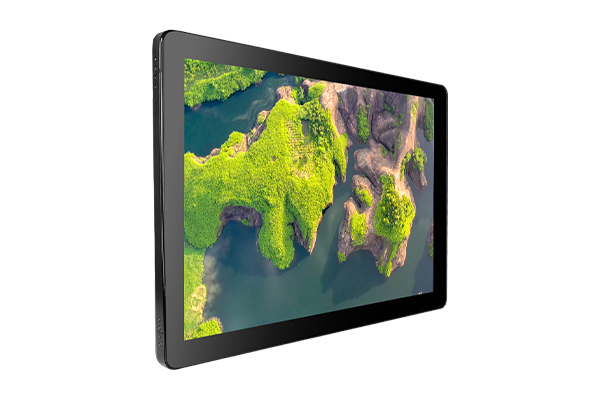

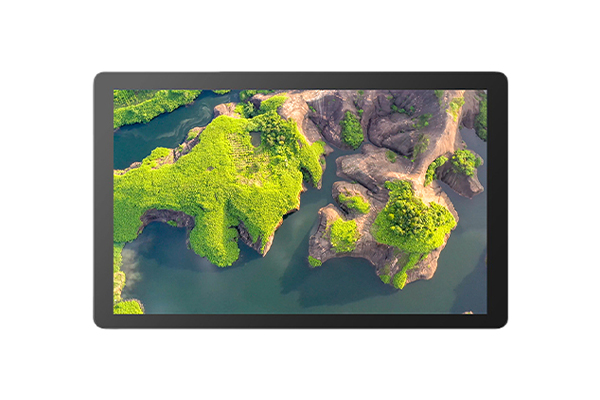

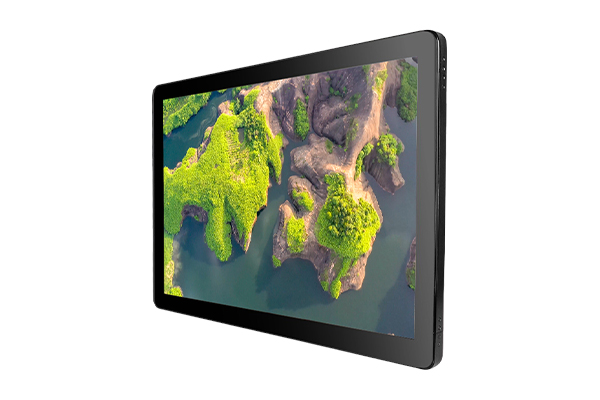

High Brightness Touch Monitor KOT-0320U-CA4PH
KOT-0320U-CA4PH1.KeeTouch water proof capacitive sensor allows wet finger operation, provides high quality touch experience even in harsh environment.
2.High Brightness, visible under direct sunlight.
3.Anti-glare tempered cover glass.
4.IP65
-
High Brightness Touch Monitor Main Features:
1、PCAP multi-touch technology, high-sensitivity with great touch experience
2、High brightness, readable under direct sunlight, 1000 -2000 nits for option
3、4000:1 high contrast ratio with high-quality image and full viewing angle
4、Anti-glare, vandal-proof and pure flat designed high brightness touch monitor
5、Pure flat designed high brightness touch monitor, IP65 front side waterproof
6、VGA+DVI+HDMI interfaces,USB for touch input
7、Support system: XP and Windows 7
8、Other sizes can be offered (8’’- 43’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the high brightness touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the high brightness touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the high brightness touch monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.5. What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6. What is your delivery time?3-5 work days for inventory orders, 7-15 business days for bulk production.
-
Complete Machine
Model No.
KOT-0320U-CA4PH (P/N:KOT-320P-013)
Series
OT
Display Type
16:9 Ratio 32" TFT-LCD
Active Area
700.6*395.1 (mm)

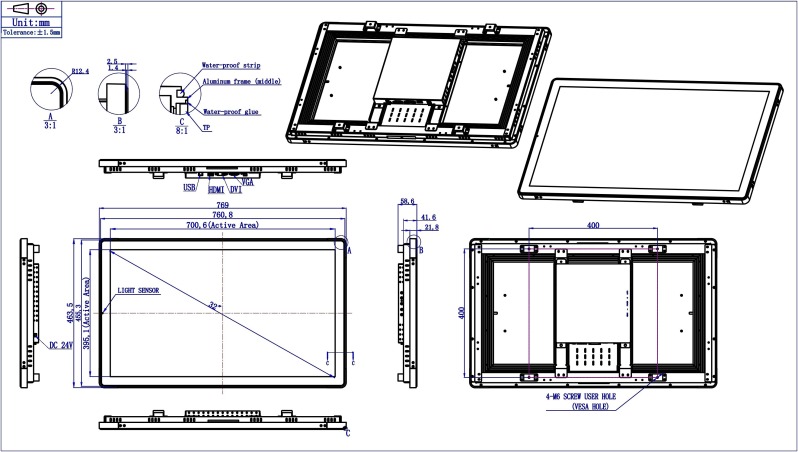

Monitor Dimensions (W*H*D)
769*463.5*58.6 (mm)
Suggested Resolution
1920x1080 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
1500cd/m²
With Touch Monitor
1250cd/m²
Response Time (Typ.)
6ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
89°/89°
Vertical(up/down)
89°/89°
Contrast Ratio (Typ.)
4000:01:00
Video Input
VGA\DVI\HDMI
Frequency (H/V)
30～80KHz / 60～75Hz
Power Supply
Type: External brick
Display voltage: DC 24V/ 5A
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
-15～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
30,000 Hours
LED Back Light Life (Typ.)
30,000 Hours
Power Consumption
130W
Mount Interface
1.VESA 400*400 mm
2.Mount bracket, horizontal or vertical mount
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock,
H/V Location, Languages, Function, ResetCCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
32" Capacitive touch screens
Touch input
USB
Response Time
≤10ms
Hardness
≥6H
Light Transmittance
≥83%
Support System
XP,WIN7,WIN8,WIN10,Linux,Android
Touch Test
≥50,000,000 times
Input Voltage
DC 5V±5%
-
