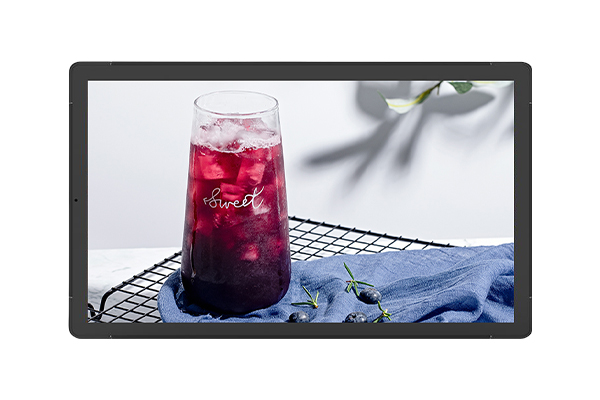

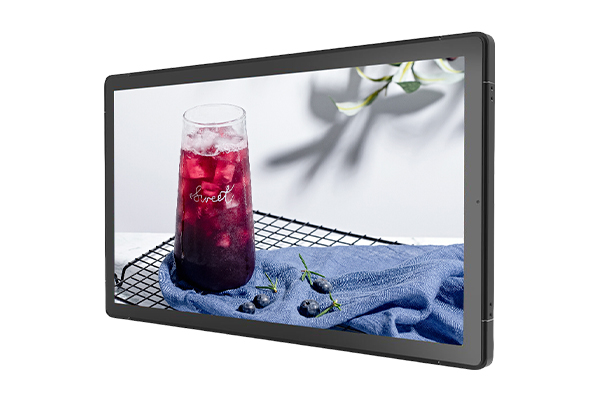

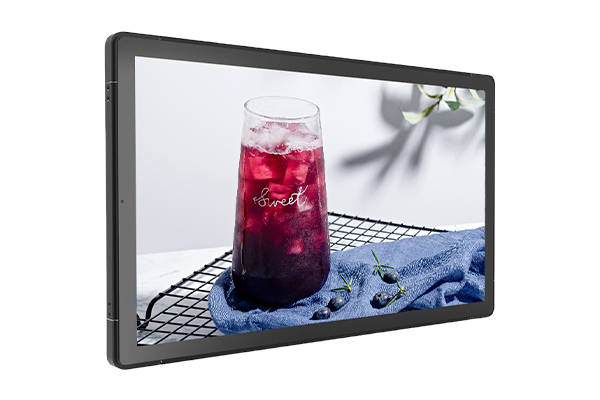

High Brightness Touch Monitor KOT-0270U-CA4PH
KOT-0270U-CA4PH1.KeeTouch water proof capacitive sensor allows wet finger operation, provides high quality touch experience even in harsh environment.
2.High Brightness, visible under direct sunlight.
3.Anti-glare tempered cover glass.
4.IP65
-
Main features:
1、Multi-points PCAP touch panel, high sensitive and fast-response
2、Anti-glare,vandal-proof and dust-proof
3、High brightness sunlight readable,1000 - 2000 nits optional

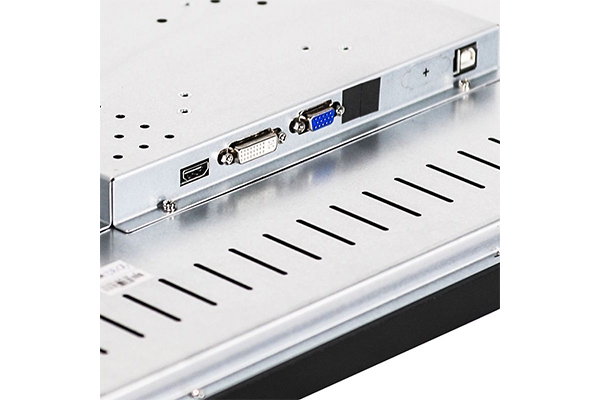

4、VGA+HDMI interfaces,USB for touch

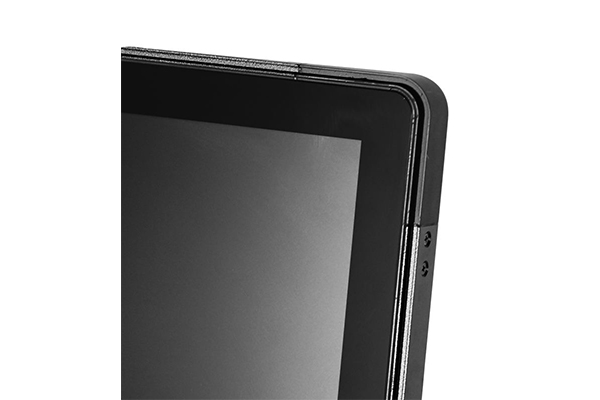

5、Pure flat design, sleek and fashionable with IP65 surface waterproof function
6、Multiple mounting options include VESA mount, horizontal or vertical brackets mount
7、With high quality industrial panel, last touch, durable in harsh environment
8、Other sizes are optional (7’’- 43’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2.What’s your MOQ?Our minimum order quantity is 1pc only.3.What is your warranty period?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4.Can you produce the product according to the customer's requirements?Sure, with 40+ Professional R&D engineers, OEM and ODM are offered.5.What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6.What is your delivery time?7. 3-5 work days for inventory orders, 7-15 business days for bulk production. -
Complete Machine
Model No.
KOT-0270U-CA4PH (P/N:KOT-270P-005-01)
Series
OT
Display Type
16:9 Ratio 27" TFT-LCD
Active Area
597.6*336.15(mm)

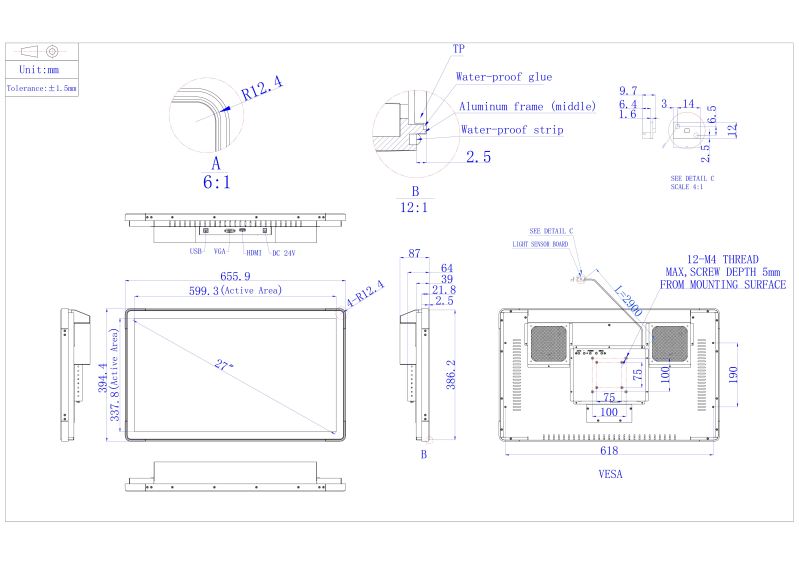

Monitor Dimensions (W*H*D)
655.9*394.4*87(mm)
Suggested Resolution
1920*1080 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
1000cd/m²
With Touch Monitor
850cd/m²
Response Time (Typ.)
12ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
89°/89°
Vertical(up/down)
89°/89°
Contrast Ratio (Typ.)
3000:01:00
Video Input
VGA/HDMI
Frequency (H/V)
30～80KHz / 50～76Hz
Power Supply
Type: External brick
Display voltage: DC 24V 7A ±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
0～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
30,000 Hours
LED Back Light Life (Typ.)
30,000 Hours
Power Consumption
Standby Power: 2.5W / Operating Power: ≤120W
Mount Interface
1. VESA 75mm and 100mm
2. Mount bracket, horizontal or vertical mount
Weight（N.W/G.W）
12.5Kg/17.35Kg
Package dimensions
80.5*23.3*55.3cm
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock,
H/V Location, Languages, Function, ResetCCC, ETL, FCC, CE, CB, RoHS
Touch screen Type
27”Projected Capacitive Touchscreen
Touch System Interface
USB
Support System
10 points in win7,Win xp 1 point
Regular Warranty
1 year
-
