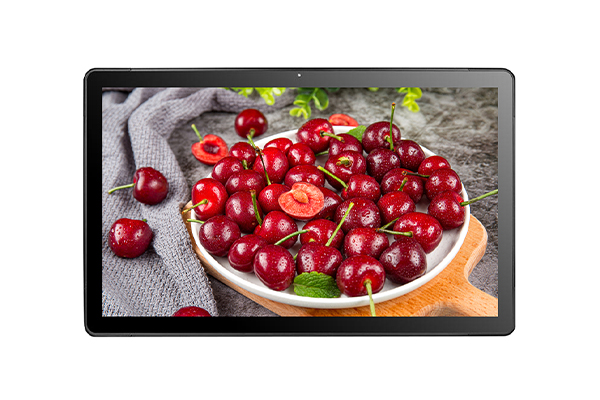

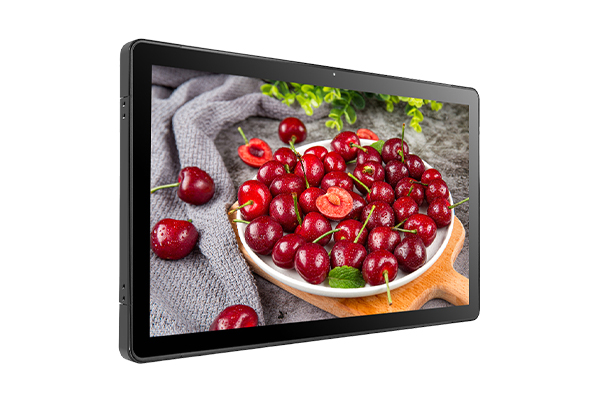

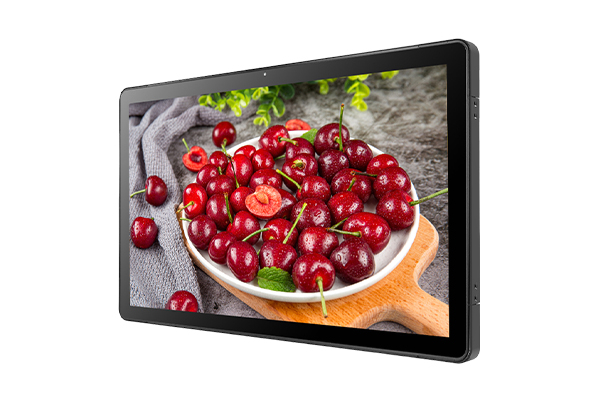

High Brightness Touch Monitor KOT-0215U-CA4PH
KOT-0215U-CA4PH1.KeeTouch water proof capacitive sensor allows wet finger operation, provides high quality touch experience even in harsh environment.
2.High Brightness, visible under direct sunlight.
3.Anti-glare tempered cover glass.
4.IP65
-
High Brightness Touch Monitor Main Features:
1、PCAP multi-touch panel, high-sensitivity and fast response
2、Sunlight light visible, 1000 -2000 nits optional, great for outdoor use
3、High resolution and high contrast ratio LCD panel with full viewing angle
4、Anti-glare,vandal-proof and IP65 front side waterproof high brightness touch monitor
5、Pure flat designed, sleek and fashionable high brightness touch monitor

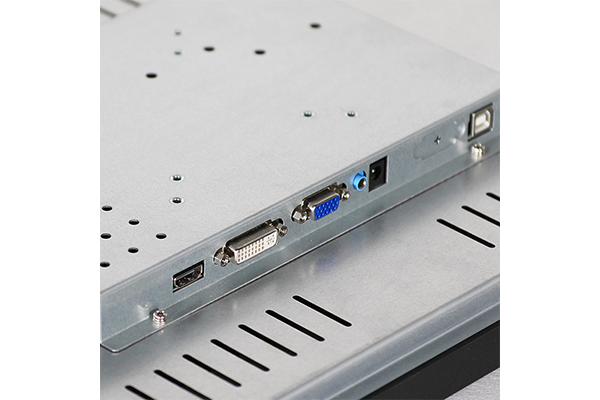

6、VGA+DVI+HDMI interfaces,USB for touch input
7、Operation system: XP, Windows 7,Windows 8 and Windows 10
8、Other sizes are available (8’’- 43’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the high brightness touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the high brightness touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the High Brightness Touch Monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.5. What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6. What is your delivery time?3-5 work days for inventory orders, 7-15 business days for bulk production.
-
Complete Machine
Model No.
KOT-0215U-CA4PH (P/N:KOT-215P-028)
Series
OT
Display Type
16:9 Ratio 21.5" TFT-LCD
Active Area
477.6*269.6(mm)

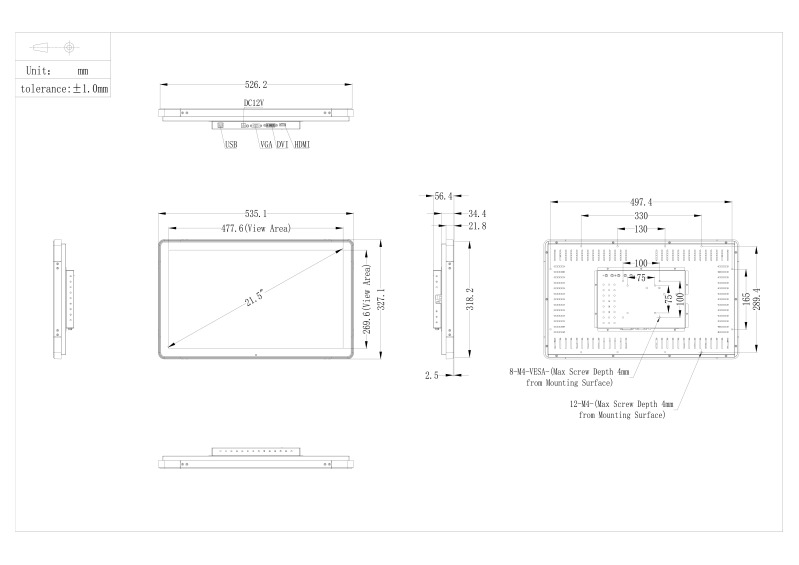

Monitor Dimensions (W*H*D)
535.1*327.1*56.4(mm)
Suggested Resolution
1920*1080 @ 60Hz
Support Colors
16.7M
Brightness (Typ.)
Pure LCD Panel
1500cd/m²
With Touch Monitor
1245cd/m²
Response Time (Typ.)
5ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
89°/89°
Vertical(up/down)
89°/89°
Contrast Ratio (Typ.)
1000:01:00
Video Input
VGA/DVI/HDMI
Frequency (H/V)
40～90KHz / 50～75Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5%
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
-15～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
30,000 Hours
LED Back Light Life (Typ.)
30,000 Hours
OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock,
H/V Location, Languages, Function, ResetCCC, ETL, FCC, CE, CB, RoHS
Touch screen Type
21.5”Projected Capacitive Touchscreen,
Touch System Interface
USB(or Serial port,one point)
Support System
10 points in win7
Regular Warranty
1 year
-
