High Brightness Touch Monitor KOT-0190U-CA4PH

KOT-0190U-CA4PH
1.KeeTouch water proof capacitive sensor allows wet finger operation, provides high quality touch experience even in harsh environment.
2.High Brightness, visible under direct sunlight.
3.Anti-glare tempered cover glass.
4.IP65 (front)

High Brightness Touch Monitor Main Features:
1、PCAP multi-touch panel, free of drift and great touch experience
2、Readable under direct sunlight, 1000 - 2000 nits optional
3、High resolution, high contrast ratio, superior clarity image with wide viewing angle
4、Anti-glare,anti-vandal and dust-proof high brightness touch monitor
5、Pure flat high brightness touch monitor, IP65 water-proof
6、VGA+HDMI interfaces,USB for touch
7、Operation system: XP, Windows 7,Windows 8 and Windows 10
8、Other sizes can be offered (8’’- 43’’)

FAQ:
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.
2. What’s your MOQ for the high brightness touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the high brightness touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the High Brightness Touch Monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.

Complete Machine

Model No.

KOT-0190U-CA4PH(P/N:KOT-190P-056)

Series

OT

Display Type

5 : 4 Ratio 19" TFT-LCD

Active Area

378*302.5 (mm)

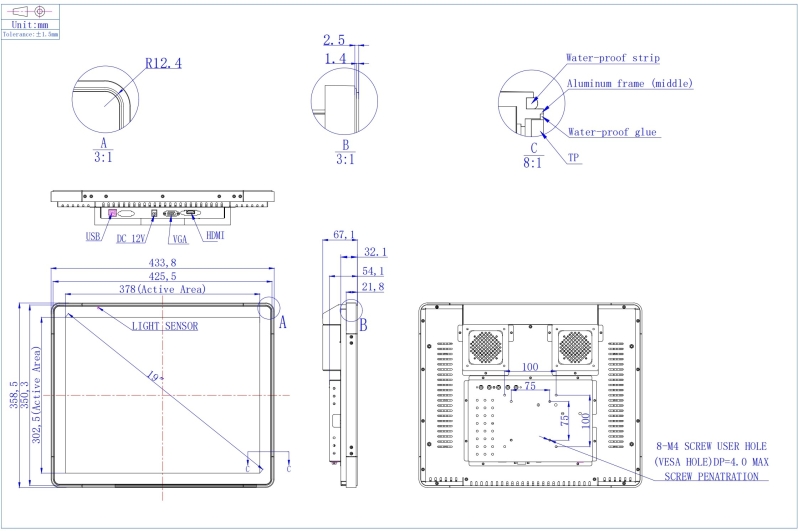

Monitor Dimensions (W*H*D)

433.8*358.5*67.1(mm)

Suggested Resolution

1280*1024 @ 60Hz

Support Colors

16.7M



Pure LCD Panel

1000cd/m²

Brightness (Typ.)

With Touch Monitor

830cd/m²

Response Time (Typ.)

8ms



Horizontal(left/right)

85°/85°

Viewing Angle(Typ.at CR>10))

Vertical(up/down)

80°/80°

Contrast Ratio (Typ.)

1000:01:00

Video Input

VGA/HDMI

Frequency (H/V)

40~90KHz / 50~75Hz

Power Supply

Type: External brick

Display voltage: DC 12V±5%

Input (line) voltage: 100-240 VAC, 50-60 Hz

Environment

Operating Temp.

-10~50°C

Operating RH

20%~80%

Storage Temp.

-20~60°C

Storage RH

10%~90%

MTBF

30,000 Hours

LED Back Light Life (Typ.)

30,000 Hours



Buttons

AUTO,+,POWER,-,MENU

OSD Control

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

Agency approvals

CCC, ETL, FCC, CE, CB, RoHS

Touch screen Type

19” Projected Capacitive Touchscreen

Touch System Interface

USB

Support System

1point touch in XP,10 points touch in win7,win8 OS

Regular Warranty

1 year
