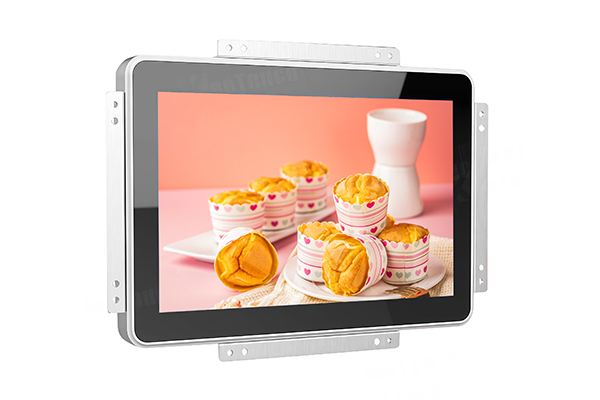

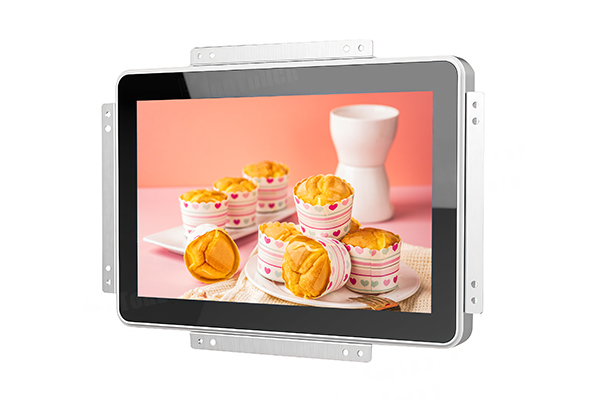

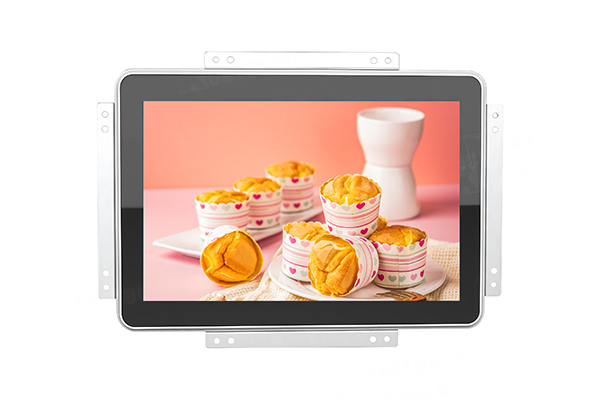

High Brightness Touch Monitor KOT-0101U-CA4PH

KOT-0101U-CA4PH
1.KeeTouch capacitive sensor provides high quality touch experience even in harsh environment.
2.High Brightness, visible under direct sunlight .
3.Fan Cooling.

High Brightness Touch Monitor Main Features Main features:
1、PCAP multi-touch high brightness touch monitor, sensitive touch and fast-response
2、Visible under direct sunlight, 1000 - 2000cd/m²optional
3、High contrast, high resolution with wide viewing angle
4、Water-proof and dust-proof functions
5、Pure flat high brightness touch monitor with IP65 waterproof function
6、HDMI,VGA , DVI interfaces,USB for touch
7、Operation system: Windows 7,Windows 8 and Windows 10
8、Other sizes are optional (8’’- 43’’)

FAQ:
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.
2. What’s your MOQ for the high brightness touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the high brightness touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4. Can you produce the high brightness touch monitor according to the customer's requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.
5. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.

Complete Machine

Model No.

KOT-0101U-CA4PHB (P/N:KOT-101P-001)

Series

OT

Display Type

16:10 Ratio 10.1" TFT-LCD,LED backlight

Active Area

216.96*135.6(mm)

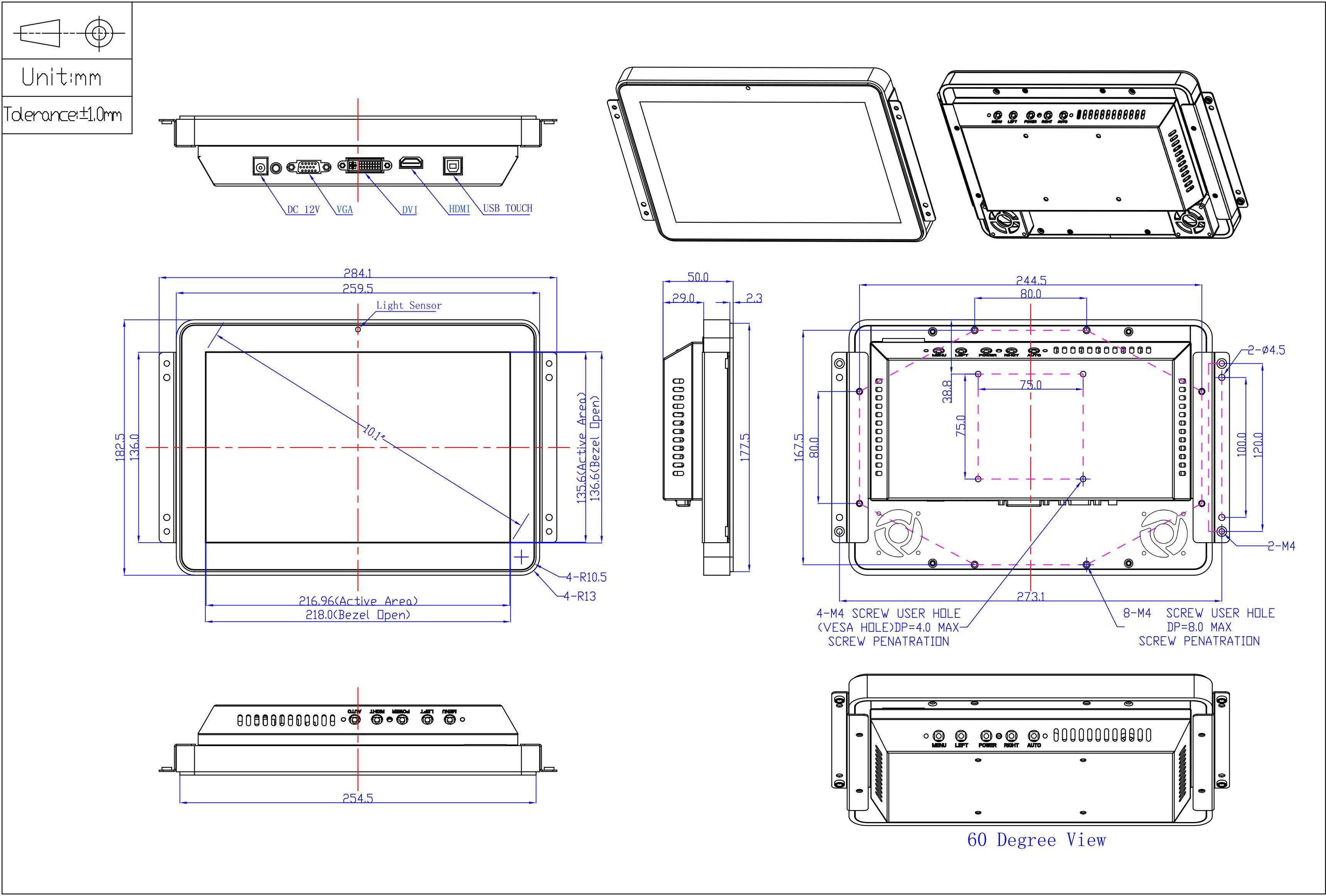

Monitor Dimensions (W*H*D)

259.5*182.5*50(mm)

Suggested Resolution

1280*800 WXGA

Support Colors

16.2M



Pure LCD Panel

≥1200cd/

Brightness (Typ.)

With Touch Monitor

≥1020cd/

Response Time (Typ.)

16ms



Horizontal(left/right)

85°/85°

Viewing Angle(Typ.at CR>10))

Vertical(up/down)

85°/85°

Contrast Ratio (Typ.)

800:01:00

Video Input

VGA/DVI/HDMI

Frequency (H/V)

30~80KHz / 60~75Hz

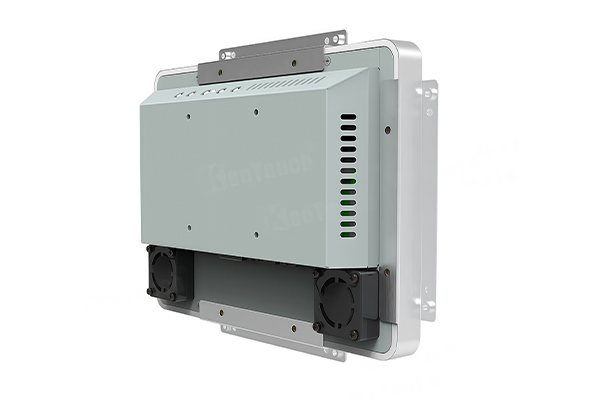

Heat Dissipation

Fan Cooling



Type: External brick

Power Supply

Display voltage: DC 12V±5% 3.3A



Input (line) voltage: 100-240 VAC, 50-60 Hz



Operating Temp.

-20~65°C



Operating RH

60℃, RH 90%

Environment

Storage Temp.

-25~70°C



Storage RH

10%~90%

MTBF

≥ 50,000 Hours

LED Back Light Life (Typ.)

≥ 50,000 Hours

Power Consumption

Standby Power: ≤15W / Operating Power: ≤18W

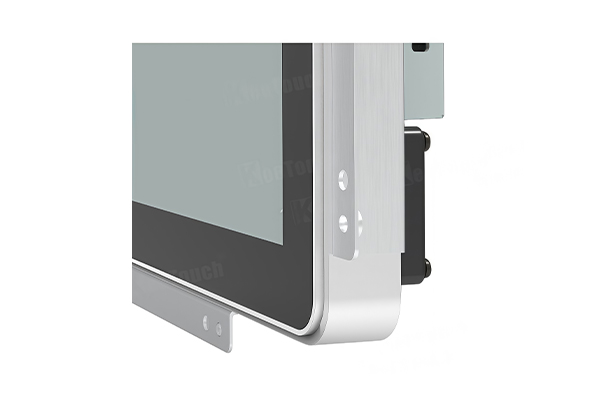

Mount Interface

1. VESA 75mm

2. Mount bracket, horizontal or vertical mount

Weight(N.W/G.W)

2.1Kg(1pcs) /7.5Kg(2pcs in one package)

Package dimensions

415*255*295mm(2pcs in one package)

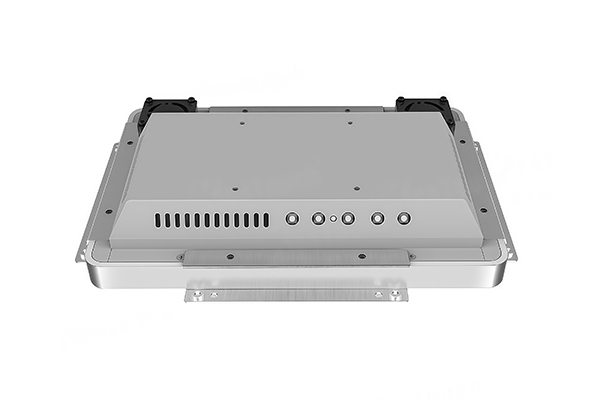

Buttons

AUTO,+,POWER,-,MENU

OSD Control

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock,
H/V Location, Languages, Function, Reset

Agency approvals

CCC, ETL, FCC, CE, CB, RoHS

Regular Warranty

1 year

Touch Screen

Touch Type

10.1" capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

>85%

Support System

Multi-Touch : WIN7、WIN8、WIN10 Si

ngle Touch : XP

Active Area

219.2*137.8(mm)

Thickness

3.75±0.2mm

Touch Test

≥ 50,000,000 times

Input Voltage

DC 5V±5%
