High Brightness Touch Monitor KOT-0104U-CA4PH

KOT-0104U-CA4PH
1.KeeTouch water proof capacitive sensor allows wet finger operation, provides high quality touch experience even in harsh environment.
2.High Brightness, visible under direct sunlight.
3.Anti-glare tempered cover glass.
4.IP65
5.One Glass Solution

High Brightness Touch Monitor Main Features:
1、KeeTouch PCAP touch screen, multi-touch points, great interactive experience
2、High brightness, visible under direct sunlight
3、1000:1 high contrast ratio, high image quality with broad viewing angle
4、Anti-vandal high brightness touch monitor
5、VGA & DVI interfaces, USB for touch
6、Support system: XP, WIN7, WIN8, WIN10, Linux, Android
7、Other sizes are optional (7’’- 43’’)



FAQ:
1. Are you a manufacturer?
Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.
2. What’s your MOQ for the high brightness touch monitor?
Our minimum order quantity is 1pc only.
3. What is your warranty period for the high brightness touch monitor?
Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).
4.What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
5.What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production.

Complete Machine

Model No.

KOT-0104U-CA4PH (P/N:KOT-104P-011)

Series

OT

Display Type

4:3 Ratio 10.4" TFT-LCD

Active Area

213*160.2(mm)

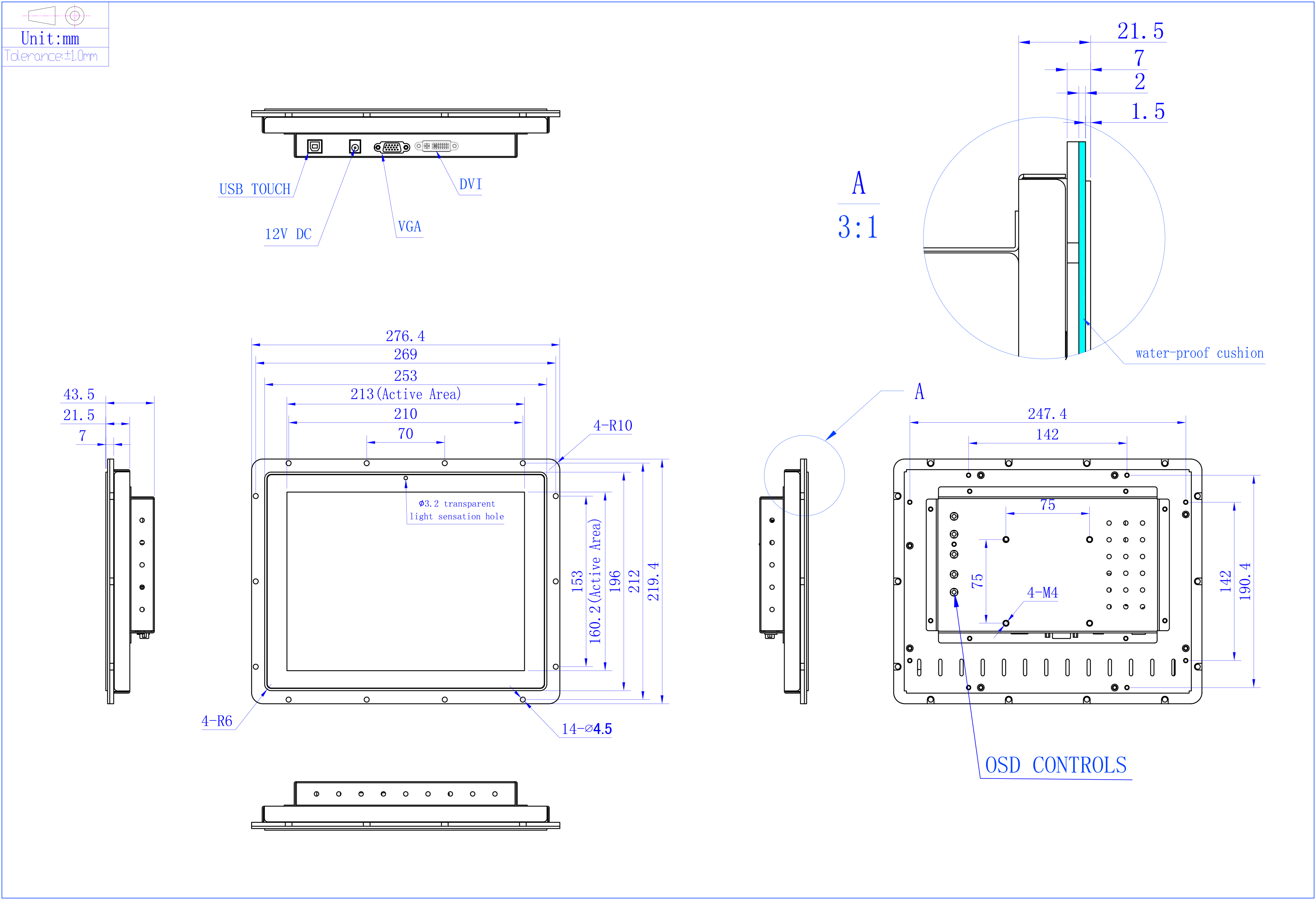

Monitor Dimensions (W*H*D)

276.4*219.4*43.5(mm)

Suggested Resolution

1024*768 @ 60Hz

Support Colors

16.2M

Brightness (Typ.)

Pure LCD Panel

≥1500cd/m²

With Touch Monitor

≥1240cd/m²

Response Time (Typ.)

16ms

Viewing Angle(Typ.at CR>10))

Horizontal(left/right)

80°/80°

Vertical(up/down)

80°/80°

Contrast Ratio (Typ.)

1000:1

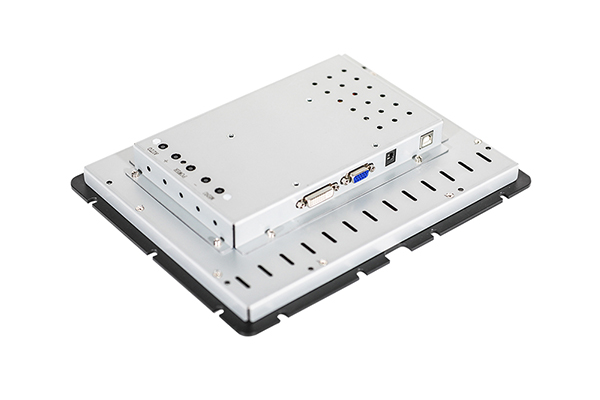

Video Input

VGA/DVI

Frequency (H/V)

30~80KHz / 60~75Hz

Power Supply

Type: External brick

Display voltage: DC 12V±5% 3.3A

Input (line) voltage: 100-240 VAC, 50-60 Hz

Environment

Operating Temp.

-15~50°C

Operating RH

20%~80%

Storage Temp.

-20~60°C

Storage RH

10%~90%

MTBF

≥ 30,000 Hours

LED Back Light Life (Typ.)

≥ 30,000 Hours

Power Consumption

Standby Power: ≤1.5W / Operating Power: ≤18W

Mount Interface

1.VESA 75mm

2.Mount bracket, horizontal or vertical mount



Weight(N.W/G.W)

2.2Kg(1pcs) /6.4Kg(2pcs in one package)

Package dimensions

350*221*298(mm)(2pcs in one package)

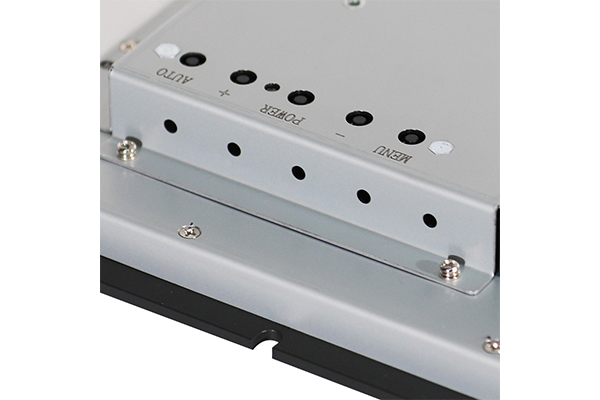

OSD Control

Buttons

AUTO,+,POWER,-,MENU

Function

Brightness, Contrast Ratio, Auto-adjust, Phase, Clock,
H/V Location, Languages, Function, Reset

Agency approvals

CCC, ETL, FCC, CE, CB, RoHS

Regular Warranty

1 year

Touch Screen

Touch Type

10.4" capacitive touch screens

Touch input

USB

Response Time

≤10ms

Hardness

6H

Light Transmittance

>80%

Support System

Multi-Touch : WIN7、WIN8、WIN10

Single Touch : XP

Active Area

215.6*163(mm)

Thickness

3.75±0.2mm

Touch Test

≥ 50,000,000 times

Input Voltage

DC 5V±5%
