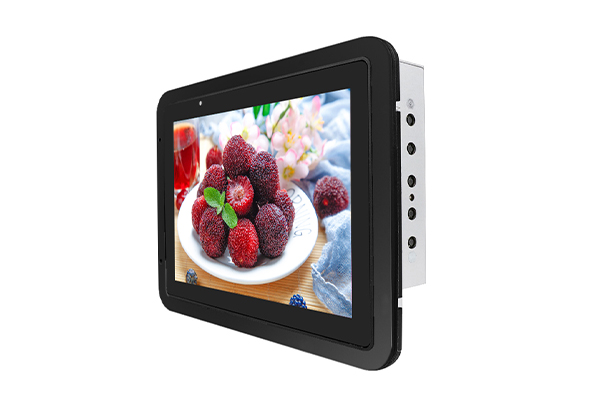

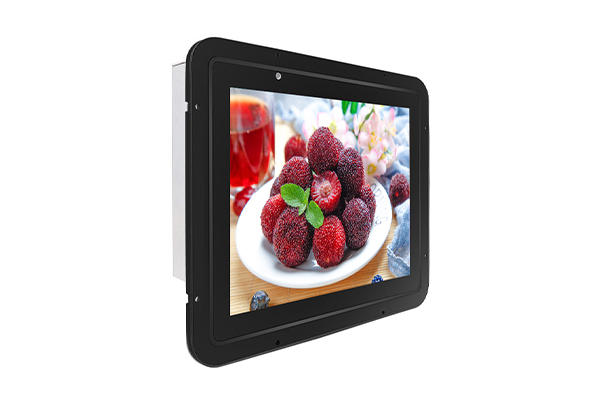

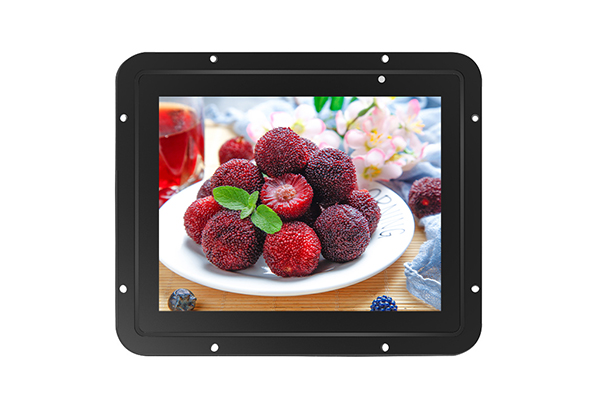

High Brightness Touch Monitor KOT-0080U-CA4PH
KOT-0080U-CA4PH1.KeeTouch water proof capacitive sensor allows wet finger operation, provides
2.high quality touch experience even in harsh environment.
3.High Brightness, visible under direct sunlight.
4.Anti-glare tempered cover glass.
5.IP65
-
High Brightness Touch Monitor Main Features:
1、Anti-glare, vandal-proof functions
2、PCAP multi touch panel, high-sensitivity and fast-response
3、High quality high brightness touch monitor with full viewing angle
4、High brightness, visible under direct sunlight, 1000 - 2000 nits optional
5、Pure flat high brightness touch monitor, IP65 surface waterproof

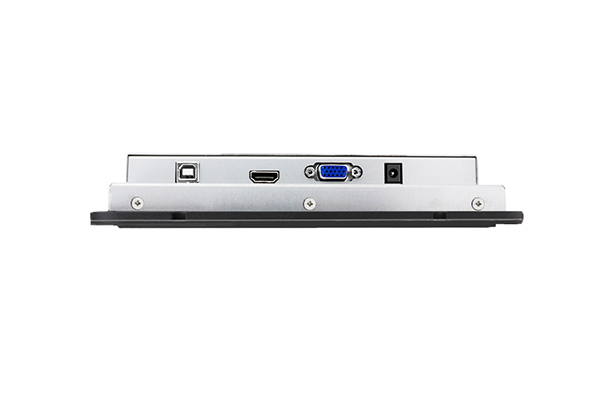

6、HDMI + VGA interfaces,USB for touch
7、Operation system: XP,WIN7,WIN8,WIN10
8、Other sizes are available (8’’- 43’’)
FAQ:1. Are you a manufacturer?Yes, KeeTouch is a professional touch product manufacturer with nearly 20 years of experience, located in Shenzhen, China.2. What’s your MOQ for the high brightness touch monitor?Our minimum order quantity is 1pc only.3. What is your warranty period for the high brightness touch monitor?Our regular warranty is 12 months for all the products, with 2-3 years Warranty (optional).4. Can you produce the High Brightness Touch Monitor according to the customer's requirements?Sure, with 40+ Professional R & D engineers, OEM and ODM are offered.5. What is your payment method?We can accept T/T, Western Union, Paypal, Pay Later, Credit card, Boleto, e-Checking and Alipay. ( L/C can be negotiable. )6. What is your delivery time?
3-5 work days for inventory orders, 7-15 business days for bulk production. -
Complete Machine
Model No.
KOT-0080U-CA4PH (P/N:KOT-008C-005)
Series
OT
Display Type
4:3 Ratio 8" TFT-LCD
Active Area
163*122.5(mm)

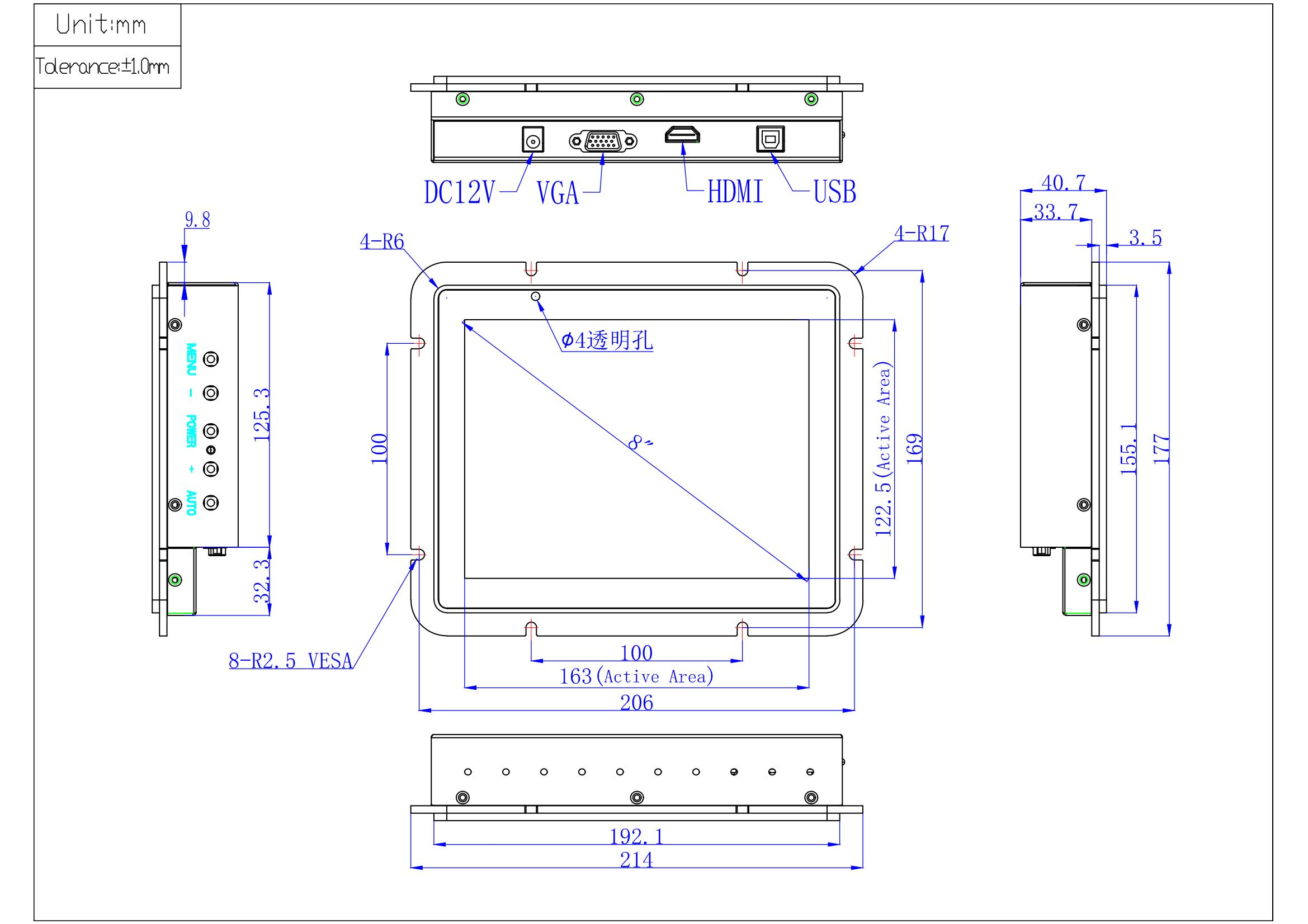

Monitor Dimensions (W*H*D)
214*177*40.7(mm)
Suggested Resolution
1024*768 @ 60Hz
Support Colors
16.2M
Brightness (Typ.)
Pure LCD Panel
≥1000cd/m²
With Touch Monitor
≥850cd/m²
Response Time (Typ.)
16ms
Viewing Angle(Typ.at CR＞10)）
Horizontal(left/right)
89°/89°
Vertical(up/down)
89°/89°
Contrast Ratio (Typ.)
1000:1
Video Input
VGA/HDMI
Frequency (H/V)
30～80KHz / 60～75Hz
Power Supply
Type: External brick
Display voltage: DC 12V±5% 3.3A
Input (line) voltage: 100-240 VAC, 50-60 Hz
Environment
Operating Temp.
-15～50°C
Operating RH
20%～80%
Storage Temp.
-20～60°C
Storage RH
10%～90%
MTBF
≥ 30,000 Hours
LED Back Light Life (Typ.)
≥ 30,000 Hours
Power Consumption
Standby Power: ≤1.5W / Operating Power: ≤13W
Mount Interface
Mount bracket, horizontal or vertical mount

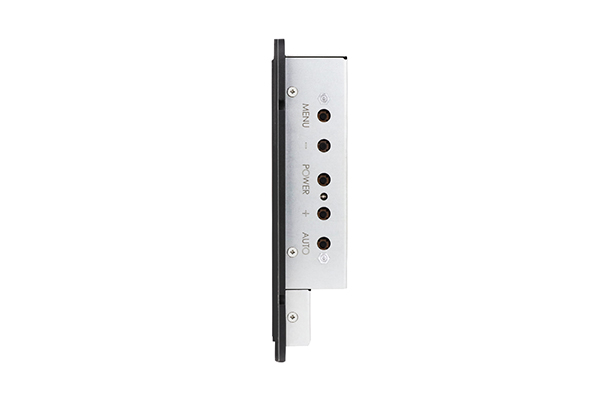

OSD Control
Buttons
AUTO,+,POWER,-,MENU
Function
Brightness, Contrast Ratio, Auto-adjust, Phase, Clock,
H/V Location, Languages, Function, ResetCCC, ETL, FCC, CE, CB, RoHS
Regular Warranty
1 year
Touch Screen
Touch Type
8" capacitive touch screens
Touch input
USB
Response Time
≤10ms
Hardness
6H
Light Transmittance
>80%
Support System
Multi-Touch : WIN7、WIN8、WIN10
Single Touch : XP
Touch Test
≥ 50,000,000 times
Input Voltage
DC 5V±5%
-
